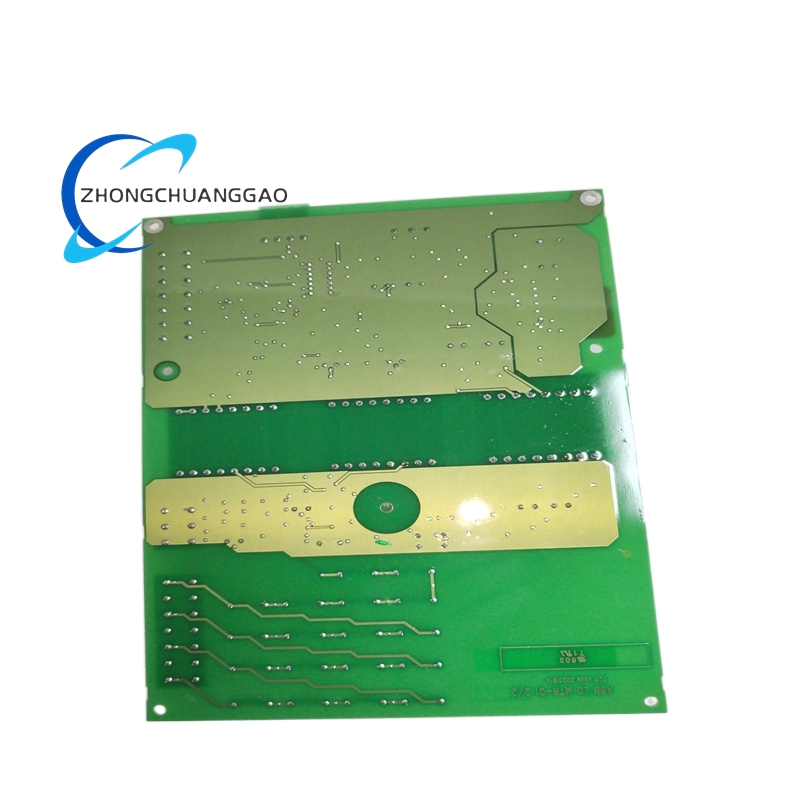

ABB POS.A6033 3BHB007445P0001 Power Supply & Control Module

Description

Technical Specifications

Electrical Parameters

• Input Voltage: 85–264 VAC (universal wide‑range input)
• Output Voltage: 24 VDC (regulated)
• Output Current: 3–5 A (continuous)
• Maximum Power Output: 120 W
• Thyristor Control: Precision gate triggering for medium‑voltage power semiconductors
• Isolation Voltage: 2.5 kV AC (power‑to‑signal isolation)
• Protection Features: Over‑voltage, over‑current, short‑circuit, and over‑temperature protection
• EMC Compliance: IEC 61800‑6‑2, IEC 61800‑6‑4 (industrial electromagnetic compatibility standards)

Communication & Interface

• Control Interface: Digital I/O for thyristor triggering, fault signaling, and status feedback
• Communication Protocol: Proprietary high‑speed serial bus for integration with ABB drive controllers
• Diagnostic Indicators: LED status lights for power, operation, and fault conditions
• Compatibility: Exclusive design for ABB medium‑voltage drive systems (ACS series)

Mechanical & Environmental

• Form Factor: Compact industrial PCB module with standard drive mounting brackets
• Dimensions: 45 mm × 18 mm × 78 mm
• Weight: ~0.1 kg
• Mounting: DIN‑rail or direct cabinet mounting
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 0%–95% RH (non‑condensing)
• Vibration/Shock: Complies with IEC 60068‑2‑6 and IEC 60068‑2‑27
• Ingress Protection: IP20 (suitable for indoor industrial cabinet installation)
• Certifications: CE, RoHS, IEC 61800‑7

Key Features

• Stable Regulated Power Supply: Delivers clean, constant 24 VDC power to critical drive control circuits, ensuring reliable system operation.
• Precision Thyristor Control: Provides accurate gate triggering signals for medium‑voltage thyristors, enabling efficient AC‑to‑DC power conversion.
• Comprehensive Protection: Implements multi‑layered protection mechanisms to safeguard power semiconductors and control circuits from electrical faults.
• Fast Fault Detection: Instantly identifies abnormal operating conditions and triggers protective shutdowns to prevent equipment damage.
• Industrial‑Grade Durability: Rugged construction withstands extreme temperatures, vibration, and electrical noise in harsh industrial settings.
• Plug‑and‑Play Integration: Directly compatible with ABB medium‑voltage drive systems, with pre‑configured interfaces for simplified installation.
• Low Power Consumption: Efficient power conversion design minimizes energy loss and heat generation within the drive system.
• Maintenance‑Free Operation: Solid‑state design with no moving parts ensures long service life and minimal maintenance requirements.
• Diagnostic Visibility: Clear LED indicators provide real‑time status monitoring and rapid fault identification for efficient troubleshooting.

Application Scenarios

• Medium‑Voltage Drive Systems: Core power and control component in ABB ACS series medium‑voltage drives for high‑power motor control.
• Industrial Motor Control: Regulation of large motors in pumps, fans, compressors, and conveyors across manufacturing facilities.
• Power Generation: Control of turbine auxiliary systems, boiler feed pumps, and generator excitation in thermal, hydro, and renewable power plants.
• Oil & Gas Industry: Power management for compressors, pumps, and processing equipment in refineries and offshore platforms.
• Chemical & Pharmaceutical Manufacturing: Precise power control for reaction vessels, mixers, and material handling systems.
• Mining Operations: Reliable power supply for heavy machinery and conveyor systems in underground and surface mining.
• Water & Wastewater Treatment: Control of high‑capacity pumps and aeration systems in municipal treatment facilities.
• Marine & Offshore: Power management for shipboard propulsion drives and offshore drilling equipment.
• Metal Processing: Regulation of furnaces, rolling mills, and extrusion machines in steel and aluminum production.
