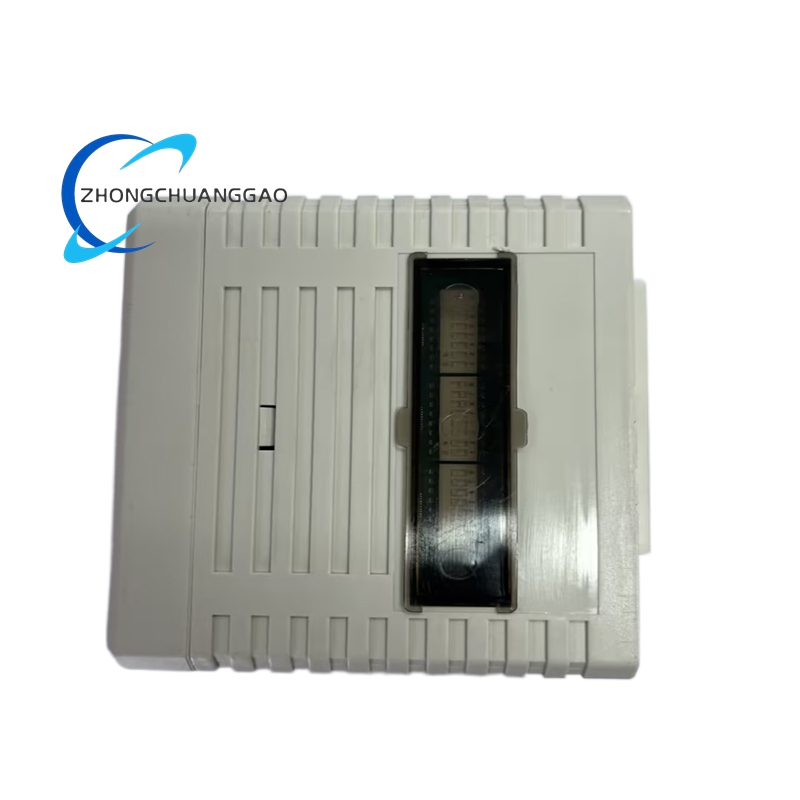

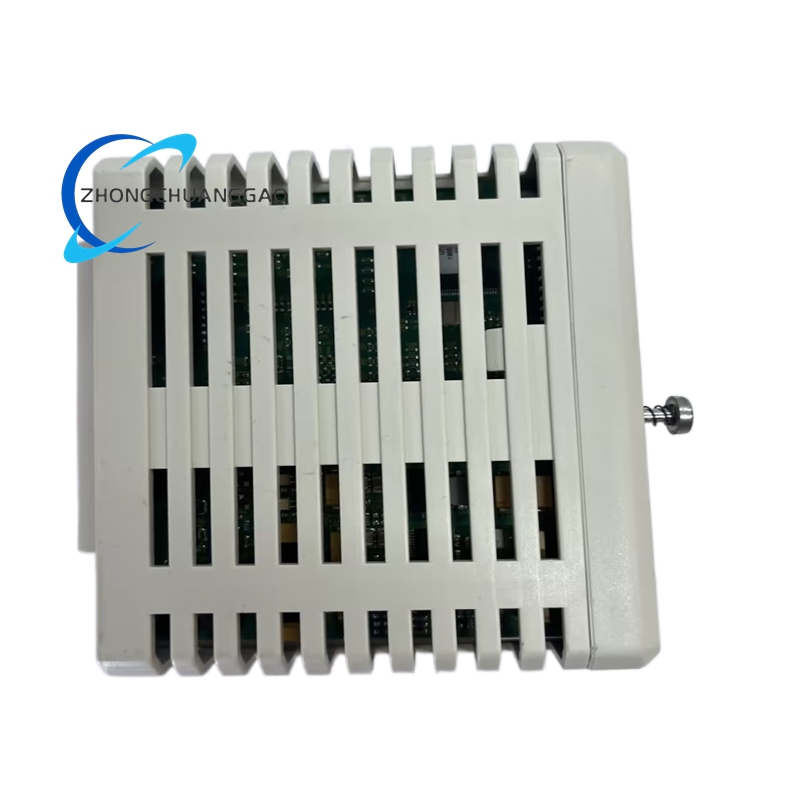

ABB PNI800 PN800 Plant Network Interface Module

Description

Technical Specifications

Functional Features

1. High‑Speed Real‑Time Communication

   Equipped with dual Gigabit Ethernet ports, the PNI800 delivers ultra‑fast data transfer rates, supporting microsecond‑level real‑time data exchange between the PN800 network and upper‑level systems. It ensures deterministic communication for critical process control, with minimal latency for thousands of I/O points and complex control algorithms.
2. Comprehensive Multi‑Protocol Support

   The module natively supports a wide range of industrial communication protocols, including PROFINET IO, Modbus TCP/RTU, OPC UA, PROFIBUS DP, and EtherNet/IP. This universal compatibility enables seamless integration with diverse field devices, third‑party systems, and enterprise IT infrastructure, eliminating communication silos.
3. Robust Redundancy Architecture

   Features full 1:1 network redundancy with automatic failover for Ethernet links and PN800 line redundancy. Redundant communication paths ensure uninterrupted data flow, eliminating single points of failure and maximizing system uptime for mission‑critical industrial processes.
4. Centralized System Configuration & Management

   Provides a unified interface for engineers to configure, monitor, and maintain the entire PN800 network from a single PC workstation. It supports remote access and diagnostics, enabling efficient troubleshooting, parameter adjustments, and software updates without on‑site intervention.
5. Advanced Data Acquisition & Processing

   Capable of high‑speed acquisition and processing of real‑time process data from field devices, the PNI800 aggregates and transmits data to SCADA, HMIs, and analytics platforms. It supports large‑scale data logging and event tracking, facilitating process optimization and predictive maintenance.
6. Rugged Industrial Design

   Built to withstand harsh industrial environments, the PNI800 operates reliably across an extended temperature range (-40 °C to +70 °C) and high humidity levels. It complies with strict EMC standards, resisting electrical interference, and features a compact, DIN‑rail‑mountable design for easy installation in space‑constrained control cabinets.
7. Seamless System Integration

   Fully integrated with the ABB AC 800M controller and System 800xA DCS, the PNI800 supports easy expansion and scalability. It connects to up to 12 communication modules via the CEX‑Bus, enabling flexible system growth to meet evolving industrial automation requirements.

Application Scenarios

1. Oil & Gas Processing

   Deployed in refineries, offshore platforms, and pipeline networks for real‑time monitoring and control of distillation, separation, and pipeline operations. Ensures reliable communication between field devices, controllers, and central control rooms in hazardous environments.
2. Power Generation & Distribution

   Integrated into thermal, hydro, and renewable energy power plants for turbine control, boiler management, and grid interconnection. Facilitates seamless data exchange between power generation equipment, control systems, and grid management platforms.
3. Chemical & Pharmaceutical Manufacturing

   Used in chemical plants, refineries, and pharmaceutical facilities for reactor control, batch processing, and GMP‑compliant production. Enables real‑time monitoring of critical process parameters and ensures secure, reliable communication in regulated environments.
4. Water & Wastewater Treatment

   Applied in municipal and industrial water treatment plants for pump control, filtration, chemical dosing, and disinfection. Supports remote monitoring and control of distributed treatment processes, optimizing resource utilization and ensuring compliance with environmental standards.
5. Metal & Mining Processing

   Utilized in steel mills, aluminum smelters, and mineral processing facilities for furnace automation, rolling mill control, and material handling. Delivers reliable communication in high‑temperature, high‑vibration industrial environments.
6. Pulp & Paper Manufacturing

   Integrated into paper mills for pulp processing, drying, and coating control. Manages complex process variables and ensures consistent product quality for high‑speed production lines.
7. Food & Beverage Production

   Deployed in food processing plants for batch control, packaging, and quality assurance. Supports hygienic design requirements and ensures reliable communication for food safety and regulatory compliance.
8. Automotive Manufacturing

   Used in automotive assembly plants for robotic control, conveyor systems, and quality inspection. Facilitates real‑time data exchange between production equipment and manufacturing execution systems (MES).
