Product Short Description
-
Product Identity

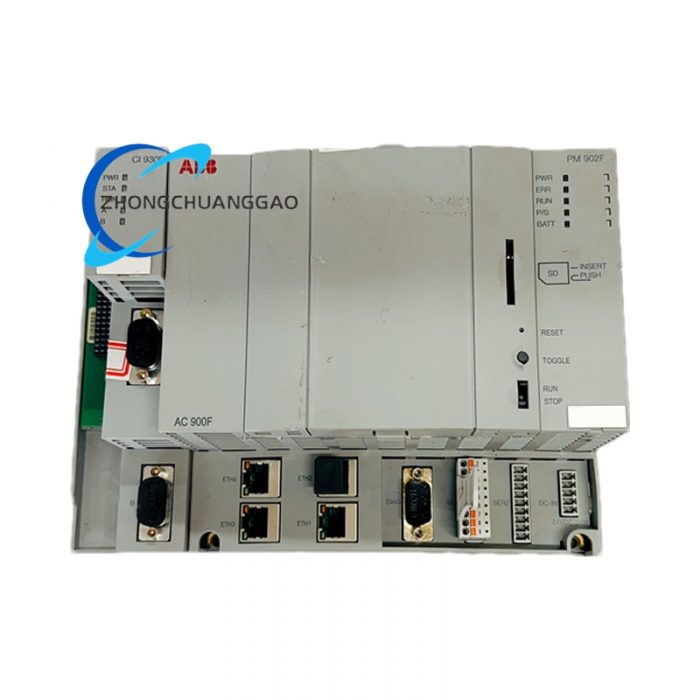

Model: PM902F
Part Number: 3BDH001000R0005
Family: ABB AC 900F (Freelance) controller series – CPU module -
Technical Specifications
-
Processor: 800 MHz high-performance CPU
-
Controller Memory: 24 MB
-
Battery-backed SRAM: 8 MB (retains data during power loss)
-
DRAM: 16 MB
-
Ethernet Interfaces: 4 × 10/100 Mbit/s RJ-45
-
Serial Ports: 2 × RS-232/RS-485; 1 additional diagnostic/clock port
Description
-
Expansion: 2 slots for optional communication interface modules (e.g., PROFIBUS, Modbus, EtherNet/IP, IEC 61850)
-
I/O Capacity: Supports up to 1 500 digital/analog points via local or remote I/O racks
-
Power Supply: External 24 VDC ± 10 %, typical 5 W consumption
-
Operating Temperature: –40 °C to +70 °C (industrial grade)
-
Dimensions: 227 mm × 152 mm × 95 mm (6U single-slot)
-
Weight: 1.1 kg
-
Certifications: CE, UL, SIL 2/3 capable
-
Functional Features
-
Modular Architecture: Hot-swappable CPU with plug-and-play communication cards
-
Redundancy-ready: Supports dual-CPU and dual-power configurations for fault-tolerant systems
-
Rich Protocol Suite: Native Modbus TCP/RTU, PROFIBUS DP/PA, EtherNet/IP, IEC 61850, DNP3
-
Real-time Control: Deterministic scan cycle and < 2 µs event timestamping
-
On-board Diagnostics: LED status, fault registers, and web-based diagnostic pages
-
Firmware & OS: OS is loaded during commissioning; firmware field-upgradeable via Automation Studio or Control Builder M
-
Applications
-
Process Control: Petrochemical, refining, pharmaceutical batch reactors
-
Power Generation: Gas/steam turbine control, substation automation, renewable-energy SCADA
-
Water & Wastewater: Pump stations, desalination plants, chemical dosing systems
-
Manufacturing: Robotics, packaging lines, material handling
-
Infrastructure: Building automation, tunnel ventilation, rail signaling
