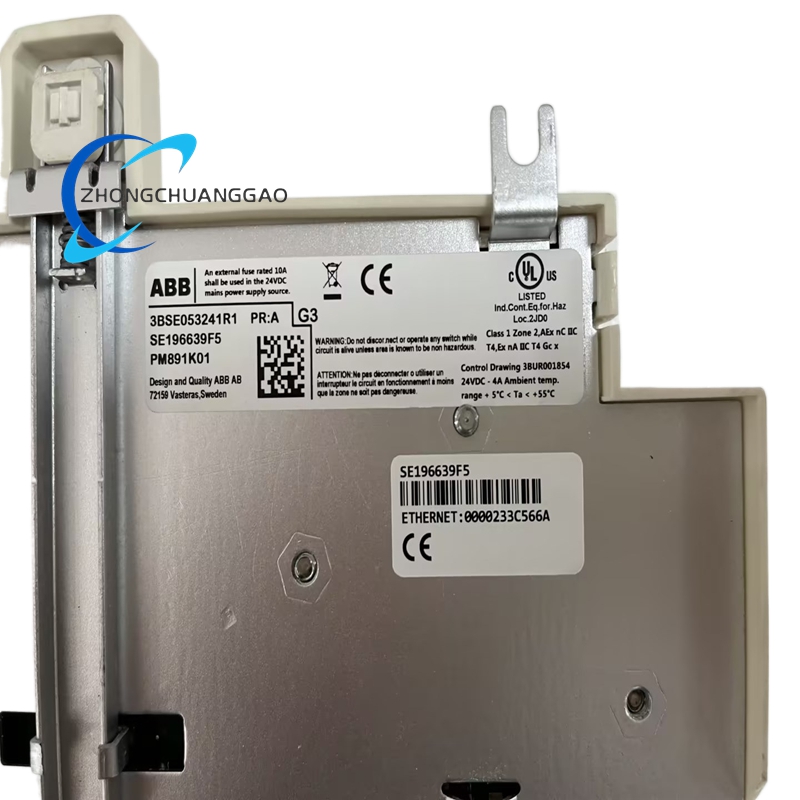

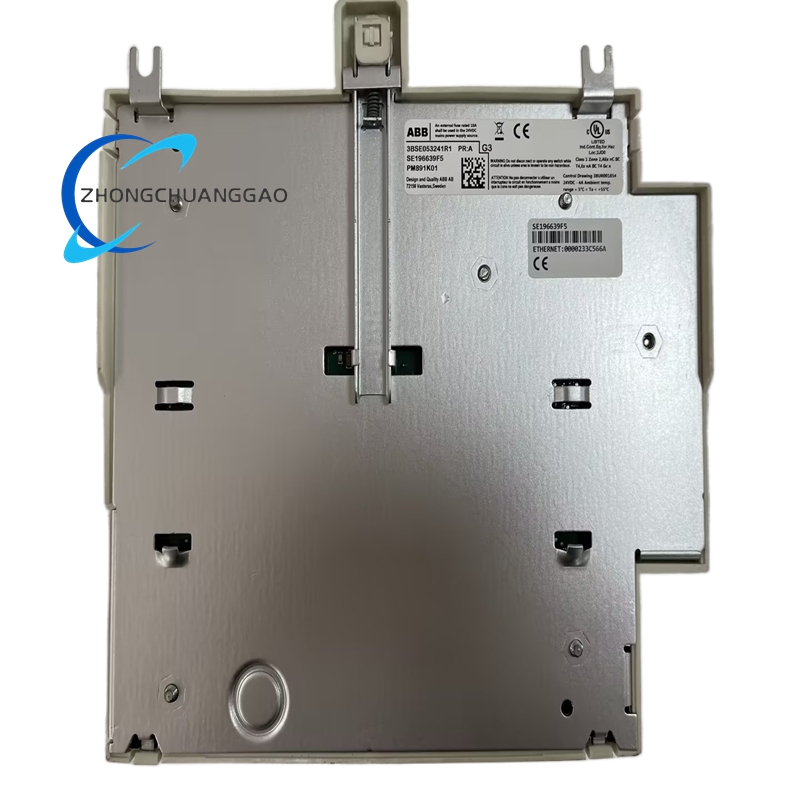

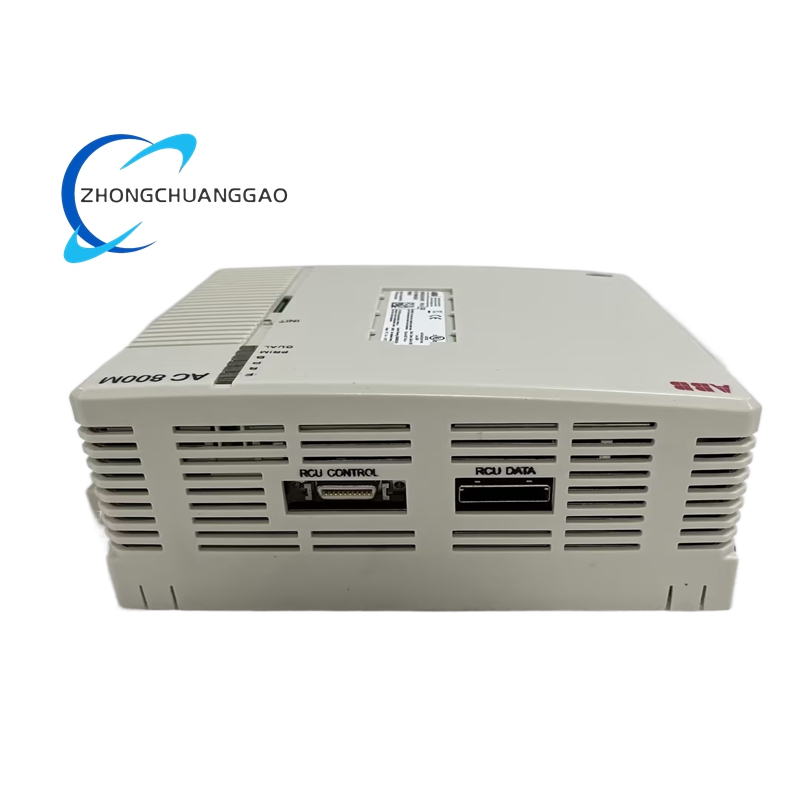

ABB PM891K01 3BSE053241R1 High‑Performance Processor Unit Kit

Description

Technical Specifications

Functional Features

1. Ultra‑Fast Deterministic Processing

   Powered by a 450 MHz PowerPC processor, the PM891K01 delivers high‑speed execution with a minimum application cycle time of 1 ms and 1000 Boolean operations completed in just 0.043 ms. The 256 MB RAM and 16 MB Flash memory provide ample capacity for complex control logic and large‑scale process data, ensuring precise, deterministic control for thousands of I/O pointsABB.
2. Robust Redundancy Architecture

   The kit supports full 1:1 controller redundancy with seamless automatic failover, eliminating single‑point failures across the CPU, CEX‑Bus, communication interfaces, and I/O systems. A dedicated high‑speed link synchronizes data and states between primary and standby controllers in real time, guaranteeing uninterrupted operation for critical industrial processes.
3. Comprehensive Multi‑Protocol Communication

   Dual redundant 10/100 Mbps Ethernet ports enable reliable connectivity to SCADA, HMIs, and enterprise systems via OPC UA and MMS protocols. An isolated RS‑232 port facilitates local configuration and diagnostics, while the CEX‑Bus supports expansion with up to 12 communication modules. Native compatibility with PROFIBUS‑DP, Modbus, and PROFINET ensures seamless integration with field devices and third‑party systemsABB.
4. Massive I/O Scalability

   Featuring an optical Modulebus, the PM891K01 connects up to 7 clusters of S800 I/O units (12 units per cluster), supporting extensive I/O expansion for large‑scale industrial applications. The CEX‑Bus further extends communication capabilities, accommodating diverse field devices and remote I/O setupsABB.
5. Advanced Diagnostics & Monitoring

   Integrated LED indicators and a built‑in web server enable real‑time system monitoring and remote diagnostics. Comprehensive event logging (up to 3000 events per OPC client) and fast data messaging (113–143 messages/sec) simplify troubleshooting and maintenance, minimizing downtimeABB.
6. Rugged Industrial Design

   Built to withstand harsh industrial environments, the PM891K01 operates reliably within a wide temperature range and high humidity levels. It complies with strict EMC standards, resisting electrical interference, and features a DIN rail‑mounted, slide‑and‑lock design for easy installation and hot‑swapping.

Application Scenarios

1. Oil & Gas Processing

   Deployed in refineries, offshore platforms, and pipeline networks for distillation control, wellhead automation, and pipeline monitoring. Ensures precise regulation of temperature, pressure, and flow variables in hazardous environments.
2. Power Generation & Distribution

   Integrated into thermal, hydro, and renewable energy power plants for boiler control, turbine governing, and grid interconnection. Manages complex load balancing and ensures stable power output, meeting strict grid stability standards.
3. Chemical & Pharmaceutical Manufacturing

   Used in chemical plants, refineries, and pharmaceutical facilities for reactor control, fermentation processes, and batch manufacturing. Maintains strict process parameters and supports GMP compliance for regulated production.
4. Water & Wastewater Treatment

   Applied in municipal and industrial water treatment plants for pump control, filtration, chemical dosing, and disinfection. Optimizes resource utilization and ensures compliance with environmental discharge standards.
5. Metal & Mining Processing

   Utilized in steel mills, aluminum smelters, and mineral processing facilities for furnace automation, rolling mill control, and material handling. Delivers accurate control in high‑temperature, high‑vibration environments.
6. Pulp & Paper Manufacturing

   Integrated into paper mills for pulp processing, drying, and coating control. Manages complex process variables and ensures consistent product quality for high‑speed production lines.
