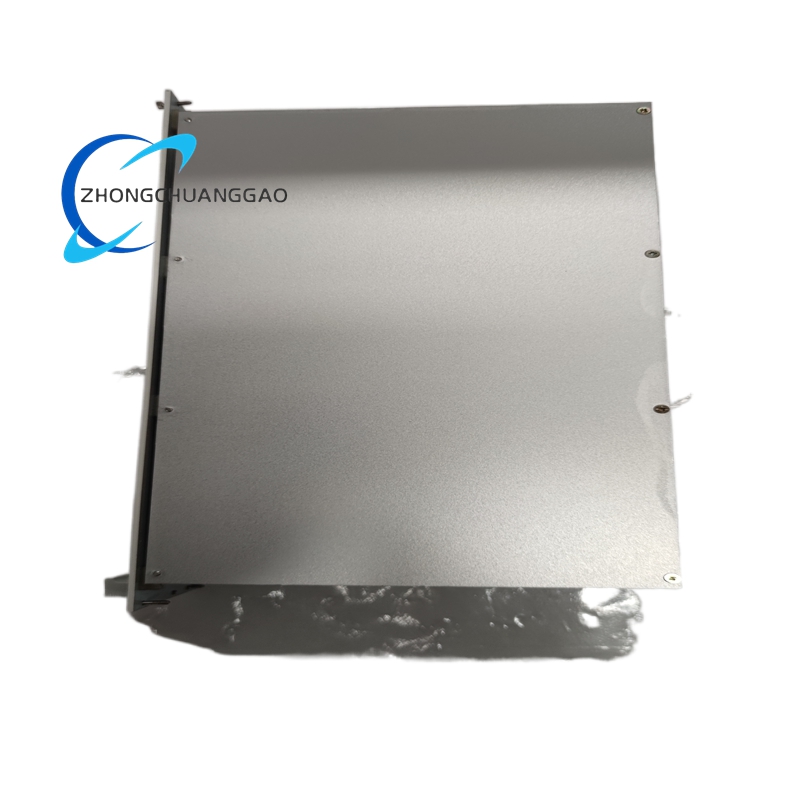

ABB PM876 3BDH000607R1 Symphony Plus High‑Performance Controller Module

Description

Technical Specifications

• Manufacturer: ABB
• Model: PM876 (Order Number: 3BDH000607R1)
• Product Type: Symphony Plus Controller CPU Module
• Processor: 32‑bit PowerPC 750 RISC architecture, 300 MHz clock frequency
• Memory:
  • RAM: 16 MB for application program execution and data processing
  • Flash Memory: 4 MB non‑volatile flash for firmware, control logic, and configuration storage
  • Backup Battery: Integrated lithium battery for real‑time clock and non‑volatile data retention during power interruptions
• Operating System: VxWorks real‑time operating system (RTOS) for deterministic task execution
• System Compatibility: ABB Symphony Plus DCS, fully integrated with Symphony Plus I/O and communication modules
• Power Supply: 24 V DC nominal (18–32 V DC)
• Power Consumption: Typical 8 W, maximum 12 W
• Communication Interfaces:
  • 2 × 10/100 Mbps Ethernet ports (RJ‑45) for control network and supervisory system connectivity
  • 2 × RS‑232 serial ports for local configuration and maintenance
  • 1 × RS‑485 serial port for field device communication
  • Supports Modbus TCP/IP, Modbus RTU, Symphony Plus proprietary protocols, and OPC DA/UA via expansion modules
• Control Performance:
  • Minimum application scan cycle: 5 ms
  • Supports up to 256 PID control loops
  • Deterministic execution of complex control algorithms and multi‑tasking operations
• I/O Capacity:
  • Supports up to 8,000 digital and analog I/O points via Symphony Plus I/O subsystems
  • Compatible with all Symphony Plus I/O module types (digital, analog, special function)
  • Supports remote I/O expansion via fieldbus communication
• Redundancy Support: Full CPU redundancy and power supply redundancy for high‑availability operation
• Environmental Ratings:
  • Operating temperature: 0°C to +55°C
  • Storage temperature: -40°C to +85°C
  • Relative humidity: 5%–95% (non‑condensing)
  • Protection rating: IP20
  • EMC compliance: IEC 61000‑6‑2 (immunity), IEC 61000‑6‑4 (emission)
• Physical Characteristics:
  • Dimensions: 300 mm (depth) × 400 mm (height) × 130 mm (width)
  • Weight: 2.06 kg
  • DIN‑rail mountable design for industrial control cabinet installation
• Certifications: CE, UL, CSA, IEC 61131‑2, RoHS compliant

Functional Features

High‑Performance Processing

• Powerful RISC Processor: 300 MHz PowerPC 750 CPU delivers fast execution of complex control algorithms and multi‑tasking operations.
• Deterministic Real‑Time Control: VxWorks RTOS ensures precise, predictable scan cycles and response times for critical process control.
• Large I/O Capacity: Manages up to 8,000 I/O points, supporting extensive and complex industrial automation systems.

Reliability & Redundancy

• Full Redundancy Capability: Supports hot‑standby CPU and power supply redundancy, eliminating single points of failure and ensuring continuous operation.
• Non‑Volatile Data Retention: Backup battery preserves critical control programs, configuration data, and real‑time clock settings during power outages.
• Industrial‑Grade Durability: Robust construction and wide environmental tolerance ensure reliable operation in harsh industrial conditions.
• Comprehensive Diagnostics: Built‑in self‑monitoring, status indicators, and event logging enable proactive fault detection and rapid troubleshooting.

Communication & Connectivity

• Dual Ethernet Ports: High‑speed 10/100 Mbps Ethernet interfaces provide reliable connectivity to control networks, HMIs, and SCADA systems.
• Flexible Serial Communication: RS‑232 and RS‑485 ports support local configuration, maintenance, and field device integration.
• Extensive Protocol Support: Compatibility with Modbus, OPC, and Symphony Plus protocols ensures seamless integration with third‑party devices and enterprise systems.
• Remote I/O Capability: Supports remote I/O expansion via fieldbus, enabling distributed control architecture.

System Flexibility & Maintainability

• Modular Design: Easily integrates with Symphony Plus I/O and communication modules, supporting scalable system expansion.
• Online Configuration: Allows online program editing, parameter adjustment, and firmware updates without system shutdown, minimizing downtime.
• User‑Friendly Programming: Configurable using ABB Control Builder software with IEC 61131‑3 standard languages (LD, FBD, ST, IL, SFC).
• Synchronized Operation: Supports high‑precision clock synchronization across multiple Symphony Plus controllers for coordinated system performance.

Safety & Compliance

• International Certifications: Meets global safety and EMC standards, ensuring compliance across diverse industrial regions.
• Safe Operation: Built‑in safety features and fault‑tolerant design support safe operation in critical process environments.

Application Scenarios

Power Generation

• Fossil fuel power plants: Boiler control, turbine governing, generator synchronization, and balance‑of‑plant automation.
• Combined‑cycle power plants: Integrated control of gas turbines, steam turbines, and heat recovery steam generators.
• Renewable energy plants: Wind farm and solar power plant monitoring, grid integration, and power management.

Oil & Gas Industry

• Offshore platforms: Process control, safety shutdown systems, and compressor control in hazardous environments.
• Refineries: Distillation, cracking, and reforming process control with high availability requirements.
• Pipeline networks: Long‑distance pipeline monitoring, leak detection, and flow control.

Process Industries

• Chemical & petrochemical: Reactor control, batch processing, and material handling in large‑scale production facilities.
• Pharmaceutical: GMP‑compliant process control for drug manufacturing, ensuring precision and traceability.
• Pulp & paper: Production line control, digester management, and quality assurance for high‑volume manufacturing.
• Metals & mining: Ore processing, smelting, and material handling in harsh, high‑vibration environments.

Water & Wastewater

• Municipal water treatment plants: Pump control, filtration, and disinfection process automation.
• Desalination facilities: Reverse osmosis and distillation process control for freshwater production.
• Water distribution networks: Regional water supply monitoring, pressure regulation, and leak detection.

Manufacturing & Infrastructure

• Food & beverage: Production line control, packaging automation, and quality control.
• Cement & building materials: Kiln control, raw material handling, and finished product packaging.
• Building automation: Large commercial complexes, airports, and hospitals for HVAC control, energy management, and facility monitoring.
