Product Short Description

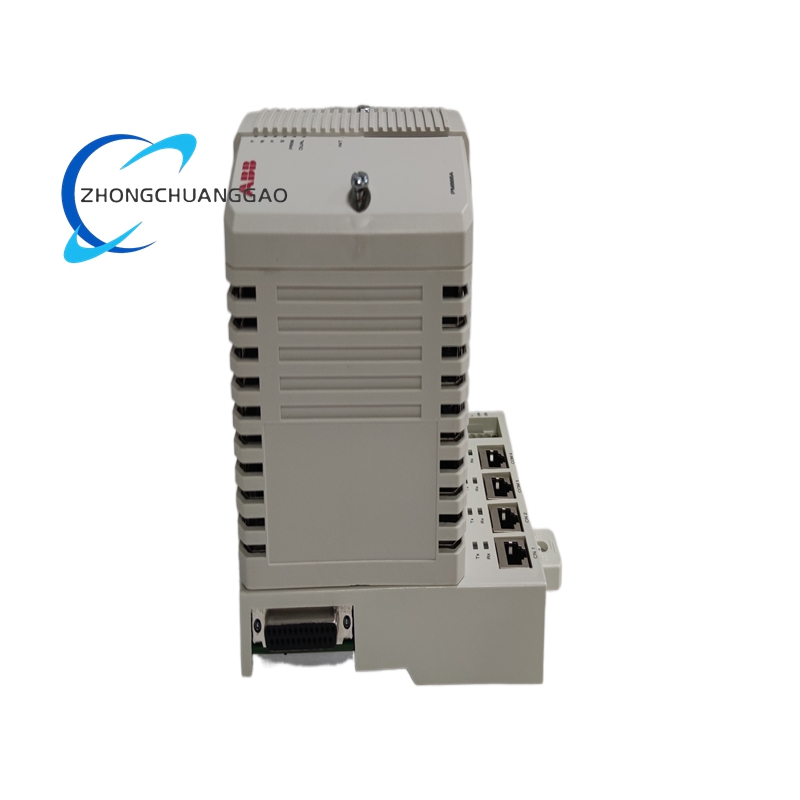

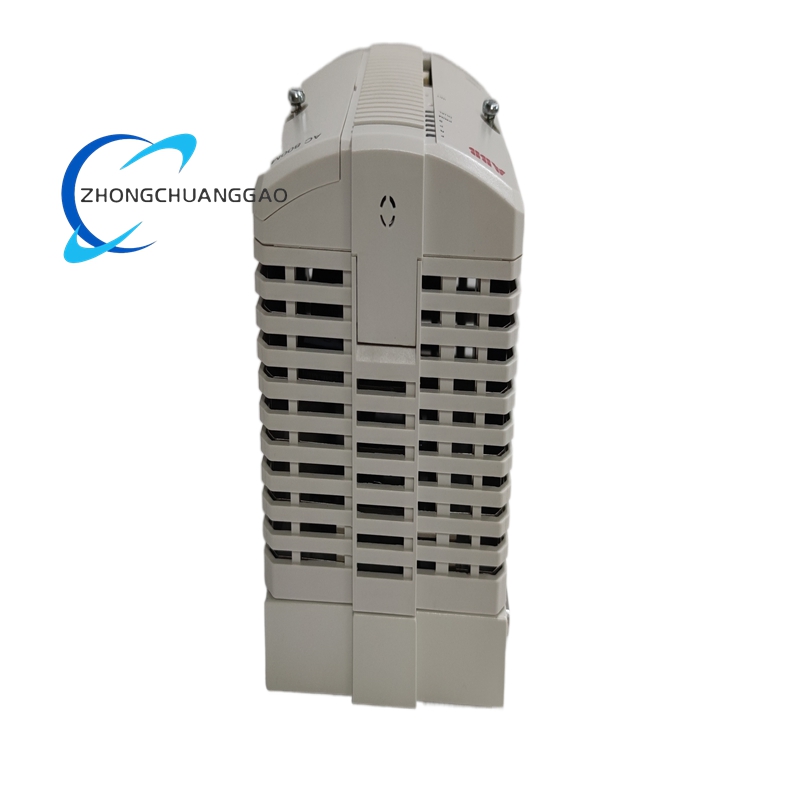

The ABB PM866K01 (3BSE050198R1) is a flagship high‑performance processor unit kit engineered for the ABB AC 800M control system, fully integrated into the ABB Ability™ System 800xA distributed control architecture (DCS). As the core computing component for large‑scale, mission‑critical industrial automation, it executes complex control algorithms, processes massive real‑time field data, and manages multi‑protocol communication across industrial networks. The kit includes the PM866 CPU module, TP830 baseplate, TB807 ModuleBus terminator, TB850 CEX‑bus terminator, and memory backup batteries, forming a complete, ready‑to‑deploy solution. Built for extreme performance and reliability, it supports ultra‑fast control cycles, massive I/O scalability, and robust redundancy, making it ideal for the most demanding process automation projects.
Description
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | High‑Performance Processor Unit Kit for AC 800M Control System |
| Order Number | 3BSE050198R1 |
| Processor | Dual‑core PowerPC e500mc / ARM Cortex‑A9, 800 MHz – 1.2 GHz clock speed |
| Memory | 2 GB DDR3 battery‑buffered RAM; 4 GB Flash memory; CompactFlash slot for extended program/data storage |
| Power Supply | 24 V DC (19.2–30 V DC); Power consumption < 18 W; Power dissipation < 15 W |
| Communication Interfaces | 2 × 10/100/1000 Mbps Gigabit Ethernet ports (RJ45); 2 × RS‑232 serial ports (isolated); 1 × PROFIBUS‑DP interface; Supports Modbus TCP/RTU, OPC UA, MMS, IEC 60870‑5‑101/104, PROFINET |
| I/O Expansion | Supports up to 12 CI8xx communication modules; Max 60,000+ digital/analog I/O points via S800 I/O systems; Remote I/O via PROFIBUS (99 stations max) |
| Redundancy | Full controller redundancy with automatic failover (switchover time ≤ 5 ms); Redundant CPU, CEX‑Bus, communication, and I/O paths |
| Programming | IEC 61131‑3 compliant (LD, FBD, ST, SFC, IL); Supports 100,000+ function block instances; Cycle time down to 0.5 ms; 0.08 μs/Boolean instruction execution speed |
| Dimensions | 270 mm × 115 mm × 100 mm (CPU + Baseplate) |
| Net Weight | 1.1 kg |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% – 95% RH (non‑condensing) |
| Protection Rating | IP20 (DIN rail mounting) |
| Certifications | CE, UL, TÜV, IEC 61131‑2, ATEX, IEC 61508 (SIL2 capable) |
| Country of Origin | Sweden |
Functional Features
-
Extreme High‑Performance Deterministic Processing
Powered by a dual‑core high‑frequency processor, the PM866K01 delivers industry‑leading execution speed with a cycle time as low as 0.5 ms and 0.08 μs per Boolean instruction. The 2 GB RAM and 4 GB Flash memory accommodate ultra‑large‑scale control applications, supporting 100,000+ function block instances for complex process logic. This ensures precise, deterministic control for thousands of process variables in real time.
-
Gigabit‑Class Multi‑Protocol Communication
Dual Gigabit Ethernet ports enable high‑speed, redundant connectivity to SCADA, HMIs, and enterprise networks via OPC UA and MMS protocols. Isolated RS‑232 ports support local configuration and diagnostics, while the PROFIBUS‑DP interface ensures seamless integration with field devices. Native support for Modbus TCP/RTU, PROFINET, and IEC 60870‑5‑101/104 guarantees interoperability with a vast industrial ecosystem.
-
Zero‑Downtime Ultra‑Fast Redundancy
The kit supports fully redundant controller configurations with a failover time of ≤ 5 ms, eliminating single‑point failures across all critical components. A dedicated high‑speed link synchronizes data and states between primary and standby controllers in real time, ensuring uninterrupted operation for processes where downtime incurs catastrophic financial or safety risks.
-
Massive I/O Scalability & Modular Design
Featuring a DIN rail‑mounted, slide‑and‑lock modular design, the PM866K01 simplifies installation, maintenance, and hot‑swapping. It supports extensive I/O expansion via ModuleBus and CEX‑Bus, accommodating over 60,000 I/O points. The system scales seamlessly to support enterprise‑wide automation, adapting to evolving industrial requirements without performance degradation.
-
Rugged Industrial Durability
Built to withstand the harshest industrial environments, the PM866K01 operates reliably across an extended temperature range (-25 °C to +70 °C) and high humidity levels. It complies with strict EMC and ATEX standards, resisting electrical interference and hazardous conditions. Battery‑buffered RAM retains critical process data during power outages, enabling rapid system recovery.
-
Advanced Engineering & Diagnostics
Fully compatible with ABB’s Control Builder M engineering suite, the PM866K01 provides a unified environment for configuration, programming, and diagnostics. Integrated LED indicators and advanced diagnostic tools enable real‑time monitoring and fast troubleshooting. The plug‑and‑play design allows quick component replacement, minimizing downtime in critical operations.
Application Scenarios
-
Large‑Scale Power Generation
Deployed in thermal, nuclear, and renewable energy power plants for boiler control, turbine governing, generator synchronization, and grid interconnection. Manages complex load balancing and ensures stable power output, meeting strict grid stability standards.
-
Oil & Gas Upstream & Downstream
Utilized in offshore platforms, refineries, and LNG terminals for wellhead control, distillation, cracking, and pipeline management. Operates reliably in remote, hazardous environments, supporting strict safety and availability requirements.
-
Chemical & Petrochemical Processing
Implemented in chemical plants, fertilizer facilities, and polymer production for reactor control, distillation, and material handling. Maintains strict process stability for temperature, pressure, and flow variables, adhering to global safety and environmental regulations.
-
Pharmaceutical & Biotech Manufacturing
Applied in bioreactor control, fermentation, and purification processes. Supports GMP compliance, batch tracking, and precise parameter regulation, ensuring product quality and consistency in regulated manufacturing environments.
-
Water & Wastewater Treatment
Used in municipal and industrial water treatment plants for pump control, filtration, chemical dosing, and disinfection. Manages water flow, pH levels, and treatment processes, optimizing resource utilization and meeting environmental discharge standards.
-
Metal & Mining Processing
Deployed in steel mills, aluminum smelters, and mineral processing facilities for rolling mill control, furnace automation, and material handling. Delivers accurate control in high‑temperature, high‑vibration environments, improving production efficiency and product quality.
-
Pulp & Paper Manufacturing
Integrated into paper mills for pulp processing, drying, and coating control. Manages complex process variables and ensures consistent product quality, supporting high‑speed production lines.
