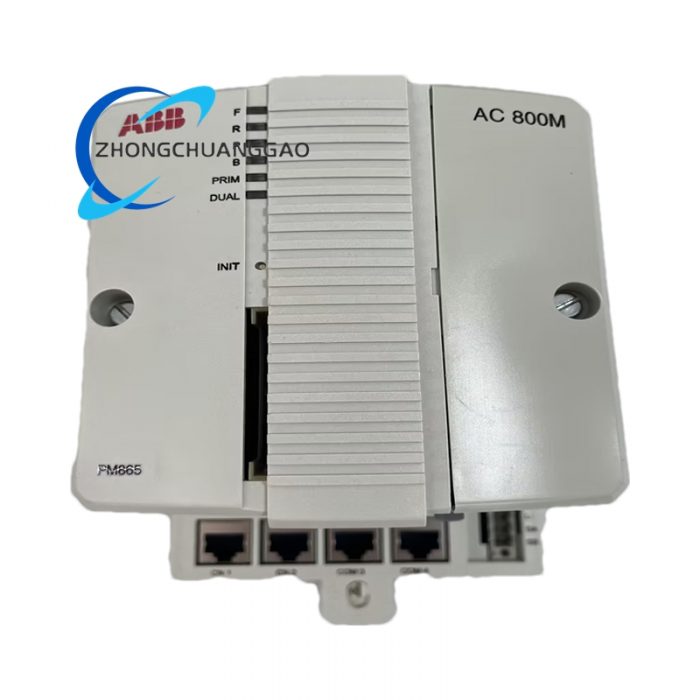

Product Short Description
Technical Specifications
- Processor: Multi-core industrial-grade CPU (specific model undisclosed), optimized for real-time control and high-speed data processing.
- Memory:
- Program memory: ≥32 MB (expandable via firmware updates).
- Data storage: Supports CompactFlash (CF) cards for backup and expansion.
- Communication Interfaces:
- Ethernet: 2 × RJ45 ports (10/100/1000 Mbps), supporting TCP/IP, Modbus TCP, OPC UA, EtherNet/IP, and PROFINET (partial support via additional modules).
- Serial: 1 × RS232/RS485 port for legacy device integration.
- Fieldbus: Optional modules for Profibus DP, CAN, HART, and FF protocols.
- I/O Expansion: Supports S800/S900 series I/O modules (digital, analog, temperature, and communication modules), with scalability up to hundreds of I/O points.
Description
- Power Supply:
- Input voltage: 24 V DC (18–32 V DC range).
- Typical power consumption: 10–20 W (load-dependent).
- Environmental:
- Operating temperature: Standard (-25°C to +60°C); Extended (-40°C to +70°C, with special certification).
- Humidity: 5–95% RH (non-condensing).
- Protection: IP20 (requires installation in a control cabinet).
Functional Characteristics
- High-Speed Processing: Executes complex control algorithms with millisecond-level task scanning.
- Redundancy Support:
- CPU redundancy: Dual-module hot-standby configuration for uninterrupted operation.
- Communication redundancy: Dual Ethernet ports or PROFIBUS redundancy.
- Power redundancy: Optional dual power supply support.
- Real-Time Capabilities: Built-in real-time clock (RTC) with NTP synchronization for precise time-stamping.
- Multi-Tasking: Supports concurrent execution of periodic and event-triggered tasks.
- Diagnostics: Hardware self-checks, fault logging, and LED status indicators for proactive maintenance.
- Modular Design: DIN rail-mountable with sliding-locking mechanism for easy installation/removal.
Application Scenarios
- Process Control: Petroleum refining, chemical production, power generation, and water treatment.
- Discrete Manufacturing: Automotive assembly lines, metal processing, and food/beverage production.
- Infrastructure: Traffic signal control, railway systems, and building automation.
- SCADA/DCS Systems: Large-scale distributed control in energy, mining, and environmental sectors.
Advantages
- Reliability: Industrial-grade components and redundancy ensure 99.99% uptime.
- Scalability: Modular architecture supports system expansion as needs evolve.
- Durability: Withstands extreme temperatures, vibrations, and electromagnetic interference.
- Compatibility: Seamlessly integrates with ABB’s 800xA software and third-party devices via OPC UA.
- Ease of Use: Intuitive programming tools (e.g., Compact Control Builder) reduce development time.
Certifications & Standards
- Compliance: CE, UL, IEC 61131-2 (industrial controller standard).
- EMC: Meets EN 61000-6-2/4 for electromagnetic compatibility.
