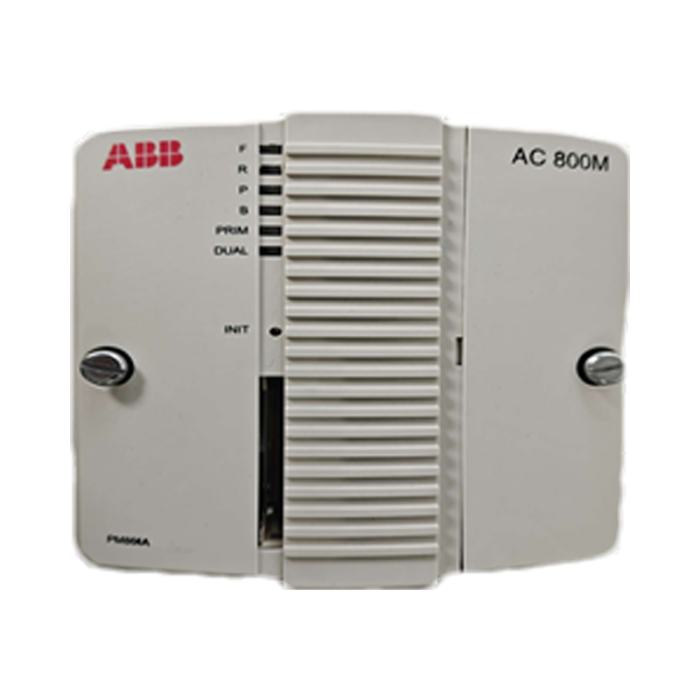

ABB PM864A 3BSE018162R1

Description

• Communication Ports:
  • 1 x Ethernet port (10/100Base-TX, RJ45) for system bus (connectivity to 800xA operator stations, engineering tools)
  • 1 x PROFIBUS DP port (RS-485) for I/O bus
  • 1 x Service port (RS-232, RJ45) for local configuration and diagnostics
• Cycle Time:
  • Minimum control cycle time: 1 ms (for high-priority control loops)
  • Typical cycle time range: 1 ms to 1000 ms (configurable based on application requirements)
• Environmental Ratings:
  • Operating temperature: 0°C to 60°C (32°F to 140°F)
  • Storage temperature: -40°C to 85°C (-40°F to 185°F)
  • Relative humidity: 5% to 95% (non-condensing)
  • Altitude: 0 to 2000 meters (derating required above 1000 meters)
  • Degree of protection (mounted in cabinet): IP20 (front panel)
• Power Supply:
  • Input voltage: 24 V DC (19.2 V DC to 28.8 V DC, redundant power input supported)
  • Power consumption: Typical 15 W, maximum 20 W
• Certifications:
  • Safety certifications: IEC 61508 (SIL 2 for control functions, SIL 3 for safety-related communication)
  • Industry standards: IEC 61131-3 (programming), IEC 61000 (EMC immunity/emission), UL 508 (industrial control equipment)

Functional Features

• Advanced Control Capabilities:
  • Supports IEC 61131-3 standard programming languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), and Instruction List (IL)
  • Enables complex control strategies, including proportional-integral-derivative (PID) control, cascade control, feedforward control, and custom algorithm development
• Redundancy Support:
  • Configurable for 1:1 hot standby redundancy (with a paired PM864A controller) to eliminate single points of failure. Redundant controllers automatically synchronize data and switchover in < 100 ms (typical) to ensure uninterrupted operation.
• Diagnostics & Monitoring:
  • Built-in self-diagnostic functions for processor, memory, communication ports, and power supply. Alerts are sent to the 800xA system for real-time fault detection and troubleshooting.
  • Supports online monitoring of control loop performance, I/O status, and communication traffic via ABB’s Control Builder M engineering tool.
• Data Integration:
  • Seamless integration with ABB Ability™ System 800xA for human-machine interface (HMI), historical data logging, and advanced analytics.
  • Supports OPC UA/DA protocols for data exchange with third-party systems (e.g., enterprise resource planning (ERP) software, cloud platforms).
• Cybersecurity:
  • Implements role-based access control (RBAC) to restrict configuration and operation 权限.
  • Supports secure communication via TLS/SSL for Ethernet connections, preventing unauthorized data access or tampering.
• Flexible Expansion:
  • Scalable to support up to 2048 I/O points per controller (via multiple I/O buses) and can be integrated into multi-controller systems for large-scale processes.

Application Scenarios

• Oil & Gas Industry:
  • Used in upstream (wellhead control, production platforms), midstream (pipeline monitoring, pumping stations), and downstream (refineries, petrochemical plants) applications to control pressure, temperature, flow, and level of fluids/gases. Ensures compliance with safety standards (e.g., SIL) for hazardous environments.
• Power Generation:
  • Applied in thermal power plants (boiler control, turbine synchronization), hydroelectric plants (turbine speed control, dam gate operation), and renewable energy (solar farm inverter control, wind turbine grid integration) to maintain stable power output and grid compatibility.
• Chemical & Pharmaceutical Manufacturing:
  • Controls batch and continuous processes (e.g., reactor temperature/pressure control, mixing ratios, purification steps) to ensure product quality consistency and adherence to regulatory requirements (e.g., FDA, GMP).
• Water & Wastewater Treatment:
  • Manages water purification (coagulation, filtration, disinfection) and wastewater treatment (aeration, sedimentation, sludge processing) processes, optimizing chemical dosage and energy usage while meeting environmental discharge standards.
• Mining & Metals Processing:
  • Used in mineral extraction (crushing, grinding), ore processing (flotation, leaching), and metal smelting (blast furnace temperature control, rolling mill speed regulation) to enhance process efficiency and reduce operational downtime.
• Food & Beverage Production:
  • Controls pasteurization, mixing, filling, and packaging processes to maintain product freshness, hygiene, and compliance with food safety regulations (e.g., HACCP).
