Product Short Description
Product Introduction
Description
Technical Specifications
| Category | Specification |
|---|---|

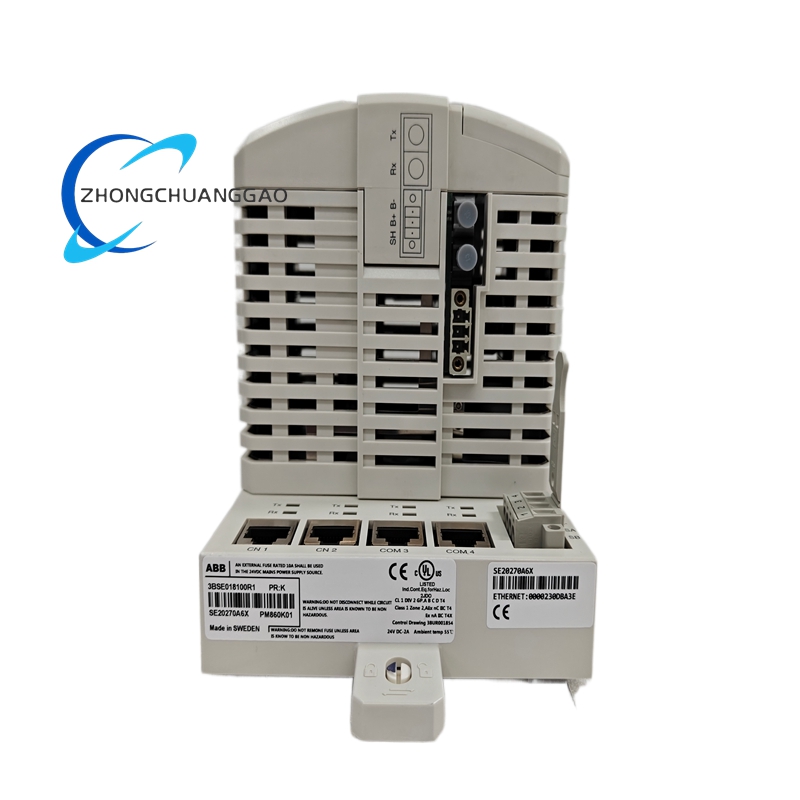

| Product Type | Processor Unit Kit for AC 800M Control System |
| Order Number | 3BSE018100R1 |
| Processor | High‑performance industrial CPU (MPC866 series) |
| Memory Configuration | 32 MB RAM (23.521 MB available for applications); 128 KB EEPROM; CompactFlash slot for program/data storageeero |
| Power Supply | 24 V DC nominal; Power consumption < 15 W |
| Communication Interfaces | 2 × 10/100 Mbps Ethernet ports (RJ45); 2 × RS‑232 serial ports (one with modem control, one isolated for configuration); Supports PROFIBUS‑DP, Modbus TCP/RTU, IEC 60870‑5‑101/104, OPC UA |
| I/O Expansion | Supports up to 12 CI8xx communication modules; Max 4096 I/O points via S800 I/O systems; Remote I/O via PROFIBUS (99 stations max) |
| Redundancy | Supports controller redundancy with automatic failover (switchover time ≤ 10 ms); Redundant power/communication paths optional |
| Dimensions | 270 mm × 115 mm × 100 mm (CPU + Baseplate) |
| Net Weight | 1.2 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% – 95% RH (non‑condensing) |
| Protection Rating | IP20 (DIN rail mounting) |
| Certifications | CE, UL, IEC 61131‑3, IEC 61508 (SIL2/3 capable) |
| Country of Origin | Sweden |
Functional Features
-
High‑Speed Deterministic Processing
Powered by the MPC866 industrial CPU, the PM860K01 delivers fast, predictable execution of control logic, closed‑loop algorithms, and data logging. The 32 MB RAM provides ample memory for large‑scale applications, while the CompactFlash slot enables local program storage and easy firmware updates, ensuring reliable operation in high‑speed process environmentseero.
-
Comprehensive Communication Interoperability
Dual 10/100 Mbps Ethernet ports support high‑speed data exchange with SCADA, HMIs, and enterprise systems via MMS/OPC UA protocols. The two RS‑232 ports facilitate local configuration, diagnostics, and legacy device connectivity. Native PROFIBUS‑DP and Modbus TCP/RTU support ensure seamless integration with sensors, actuators, variable frequency drives, and third‑party controllers, maximizing system flexibility.
-
High‑Availability Redundancy
The kit supports redundant controller configurations with sub‑10 ms failover time, eliminating single‑point failures for critical processes. Redundant power and communication paths can be added to further enhance system uptime, making it suitable for applications where downtime is unacceptable, such as power generation and oil & gas production.
-
Modular & Scalable Architecture

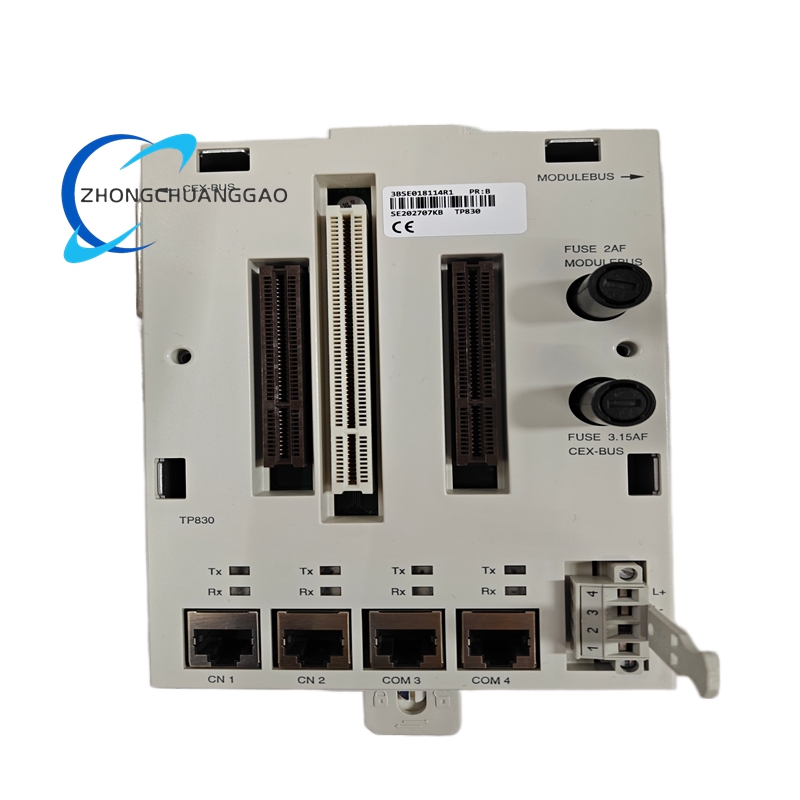

The DIN rail‑mounted design uses a slide‑and‑lock mechanism for easy installation and maintenance. The kit’s modular structure allows step‑by‑step expansion of I/O points and communication interfaces via CI8xx modules, accommodating growing process demands without system replacement. The TP830 baseplate provides a stable platform for all AC 800M components, simplifying system design and upgradesABB.
-
Rugged Industrial Reliability
Built to withstand harsh industrial conditions, the PM860K01 operates reliably across a wide temperature range and high humidity levels. Integrated EMC compliance ensures resistance to electrical interference, while the IP20 rating protects internal components in standard control cabinets. The battery‑buffered RAM retains critical data during power outages, enabling rapid system recoveryABB.
-
Simplified System Integration & Maintenance
The PM860K01 is fully compatible with ABB’s 800xA Control Builder, providing a unified engineering environment for configuration, programming, and diagnostics. LED indicators and built‑in diagnostic tools simplify troubleshooting, reducing maintenance time and costs. The kit’s plug‑and‑play design allows quick replacement of faulty components, minimizing production downtimeABB.
Application Scenarios
-
Oil & Gas Upstream & Downstream
Deployed in offshore platforms, refineries, and pipeline networks for wellhead control, custody transfer, and leak detection. Supports safe, reliable operation in remote, hazardous locations with strict availability requirements, ensuring compliance with API and ISO standards.
-
Power Generation & Distribution
Integrated into thermal, hydro, nuclear, and renewable energy power plants for boiler control, turbine governing, and substation automation. Manages load balancing, voltage regulation, and grid synchronization, ensuring stable power output and grid reliability.
-
Chemical & Petrochemical Processing
Used in chemical plants, refineries, and fertilizer production for precise control of reactors, distillation columns, and mixing systems. Maintains strict process stability for temperature, pressure, and flow variables, complying with SIL safety requirements and environmental regulations.
-
Pharmaceutical & Biotech Manufacturing
Implemented in bioreactor control, fermentation, and purification systems. Supports GMP compliance, batch tracking, and precise process regulation, ensuring product quality and consistency.
-
Water & Wastewater Treatment
Applied in municipal and industrial water treatment plants for pump control, filtration, and chemical dosing. Manages water flow, pH levels, and disinfection processes, optimizing resource utilization and meeting environmental discharge standards.
-
Metal & Mining Processing
Utilized in steel mills, aluminum smelters, and mineral processing facilities for rolling mill control, crusher automation, and material handling. Operates reliably in high‑temperature, high‑vibration environments, improving production efficiency and product quality.
