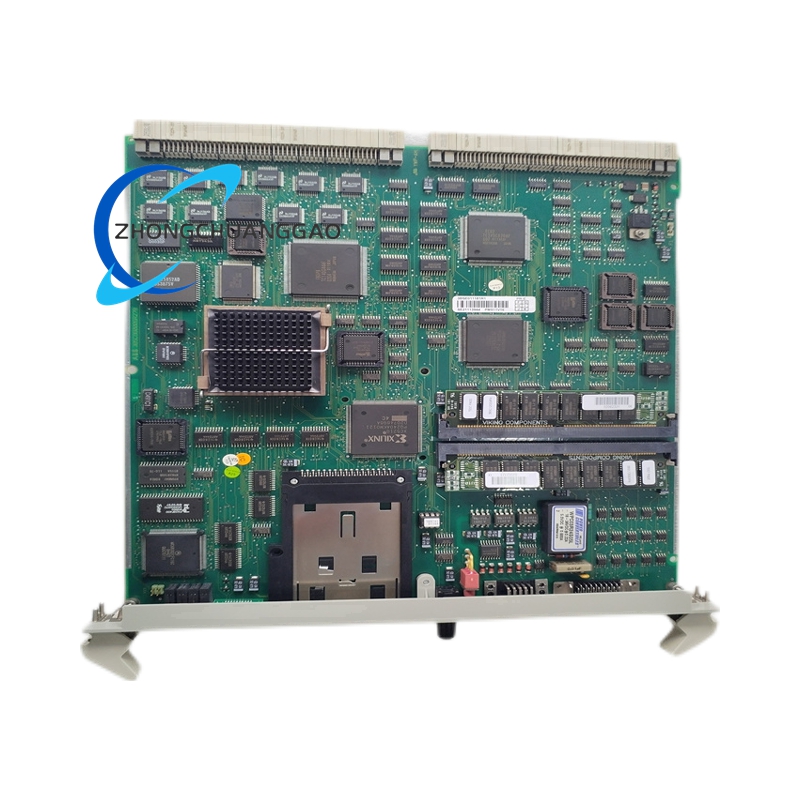

ABB PM511V16 Processor Module

Description

• • Communication Interface: It supports various communication protocols, such as RS – 232, Ethernet, CAN bus, Profibus – DP, CANopen, and EtherCAT. PM511V16 has 2 RS – 232 serial ports and 1 Ethernet interface.
  • Dimensions and Weight: The size of PM511V08 is 274.5 mm×270 mm×27 mm, and the weight is 0.76 kg. The size of PM511V16 is 274.5 mm×270 mm×27 mm, and the weight is about 0.8 kg.
  • Operating Temperature Range: The operating temperature range of PM511V08 is generally – 25℃ to + 55℃. The operating temperature range of PM511V16 is – 25℃ to + 60℃.
• Function Features
  • High – speed Data Processing: Equipped with a high – performance processor, it can quickly execute complex control algorithms and data processing tasks, and is suitable for scenarios with high – speed data processing requirements, such as real – time monitoring and control of industrial production lines.
  • Reliable Data Storage: With ECC error – correction memory, it can ensure the accuracy and reliability of data during storage and processing. Some models are also equipped with a PCMCIA slot, which is convenient for flash memory card replacement and data backup.
  • Modular Design: It has a modular structure, which is convenient for installation, maintenance, and expansion. Users can flexibly configure and expand I/O modules according to actual needs to adapt to different application scenarios.
  • Good Compatibility: It is compatible with a variety of communication protocols, which can be easily integrated with other devices and systems in the industrial automation environment, such as sensors, actuators, and upper – computer monitoring systems.
  • Status Monitoring and Diagnosis: It is usually equipped with LED indicators to display the module status and perform diagnostic functions, which is convenient for users to quickly understand the operating status of the module and troubleshoot faults.
• Application Scenarios
  • Industrial Automation: It is widely used in various industrial production lines, such as the control of equipment and production processes in the manufacturing industry, realizing functions such as speed control, position control, and process parameter adjustment of production equipment.
  • Power System: It is used in power plants, substations and power distribution systems for monitoring and controlling the operating status of power equipment, such as generator control, power quality monitoring, etc.
  • Process Industry: In the chemical, petroleum, natural gas and other industries, it is used to monitor and control production processes, such as controlling parameters such as temperature, pressure, and flow in chemical reaction furnaces to ensure the stability and safety of production.
  • Building Automation: It is applied to the automation control of large – scale buildings, such as the control of lighting systems, heating, ventilation and air – conditioning systems, to achieve energy – saving and intelligent management.
  • Transportation System: It is used in traffic signal control, railway and airport control systems, responsible for realizing logic control and monitoring, and ensuring the orderly operation of the transportation system.
  • Water Treatment and Environmental Protection: It is used in water treatment plants and environmental protection facilities, used to monitor and control the water treatment process, such as the control of water quality parameters and the operation of water treatment equipment.
