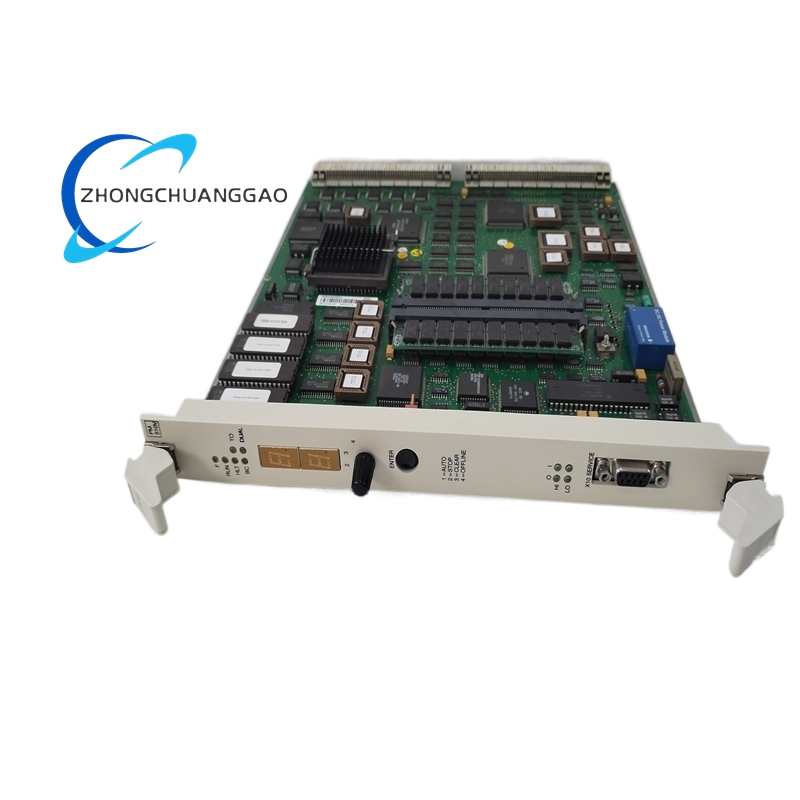

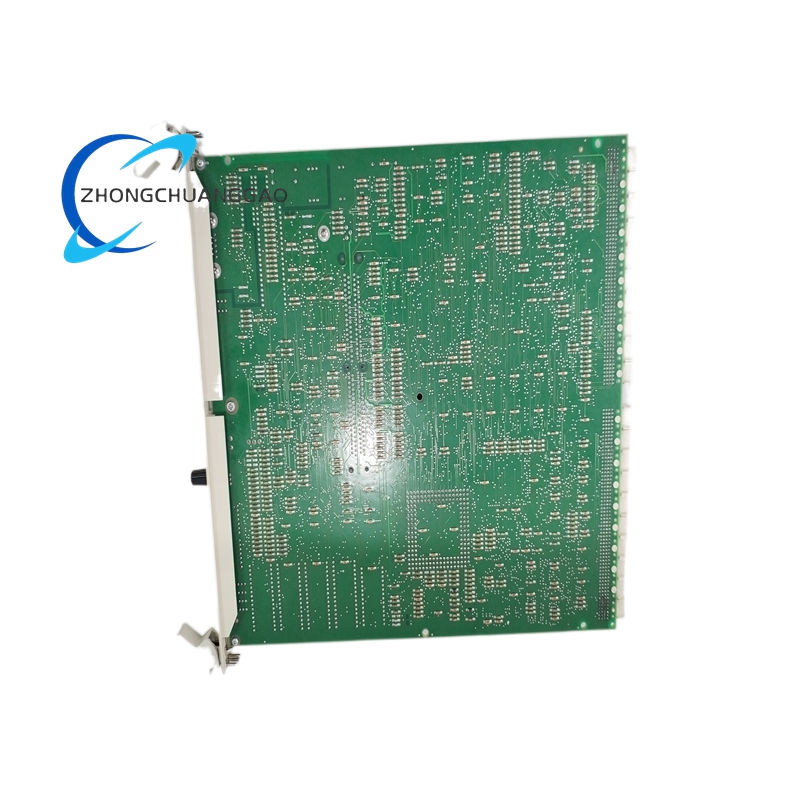

ABB PM510V16 Processor Module

Description

Technical Specifications

Functional Features

1. High‑Speed Processing Performance

   Equipped with a 32‑bit RISC processor running at ≥200 MHz, the PM510V16 executes complex control logic, closed‑loop algorithms, and data processing tasks with minimal latency. This ensures deterministic response times for critical process variables, maintaining stability in high‑speed industrial operations.
2. Flexible Memory Configuration

   The module features a standard 16 MB RAM configuration, with user‑selectable switching to 8 MB via on‑board memory modules. This flexibility accommodates varying application requirements, from basic logic control to large‑scale data logging and advanced process management.
3. Versatile Industrial Communication

   Dual Ethernet ports enable high‑speed data exchange with SCADA systems, HMIs, and other networked devices. The RS‑232/RS‑485 port supports legacy serial communication, while PROFIBUS‑DP compatibility ensures seamless integration with a wide range of field devices and third‑party equipment.
4. Extensive I/O Expansion Capability

   The module supports a large I/O capacity, allowing connection to hundreds of digital and analog field devices. This scalability makes it suitable for small‑scale machinery control and large, complex process plants with extensive I/O requirements.
5. Robust Industrial Design

   Built to withstand harsh industrial conditions, the PM510V16 operates reliably across a wide temperature range and high humidity levels. Its IP20 rating protects internal components from dust and physical contact when installed in standard control cabinets, ensuring long‑term operational stability.
6. System Redundancy Support

   The module is compatible with redundant system configurations, a critical feature for high‑availability applications. Redundant processor setups ensure uninterrupted operation, with automatic failover to a backup module in the event of a primary unit failure, minimizing downtime.
7. Seamless System Integration

   Designed as a drop‑in replacement for legacy processor modules in Advant OCS and AC 450/460 systems, the PM510V16 simplifies system upgrades and retrofits. It maintains full compatibility with existing I/O modules, configuration software, and control programs, reducing integration costs and effort.

Application Scenarios

1. Process Industries (Chemical, Petrochemical, Pharmaceutical)

   Deployed in continuous process plants for precise control of pressure, temperature, flow, and level. Ensures stable operation of reactors, distillation columns, and purification systems, complying with strict safety and quality standards.
2. Power Generation & Distribution

   Integrated into thermal, hydro, and renewable energy power plants for turbine control, generator synchronization, and substation automation. Manages load balancing, voltage regulation, and grid interconnection, ensuring reliable power output and grid stability.
3. Metal & Mining Processing

   Used in steel mills, aluminum smelters, and mineral processing facilities to control rolling mills, crushers, and material handling systems. Delivers accurate control for high‑temperature, high‑vibration environments, optimizing production efficiency and product quality.
4. Water & Wastewater Treatment

   Applied in municipal and industrial water treatment plants for pump control, filtration, and chemical dosing. Manages water flow, pH levels, and disinfection processes, ensuring compliance with environmental regulations and efficient resource utilization.
5. Discrete Manufacturing & Assembly

   Implemented in automotive, electronics, and consumer goods assembly lines for sequential control, robotic coordination, and quality inspection. Synchronizes conveyor systems, pick‑and‑place machines, and packaging equipment, improving production throughput and consistency.
6. Oil & Gas Production & Pipeline

   Utilized in offshore platforms, refineries, and pipeline networks for wellhead control, custody transfer, and leak detection. Operates reliably in remote and hazardous locations, ensuring safe and efficient hydrocarbon processing and transportation.
