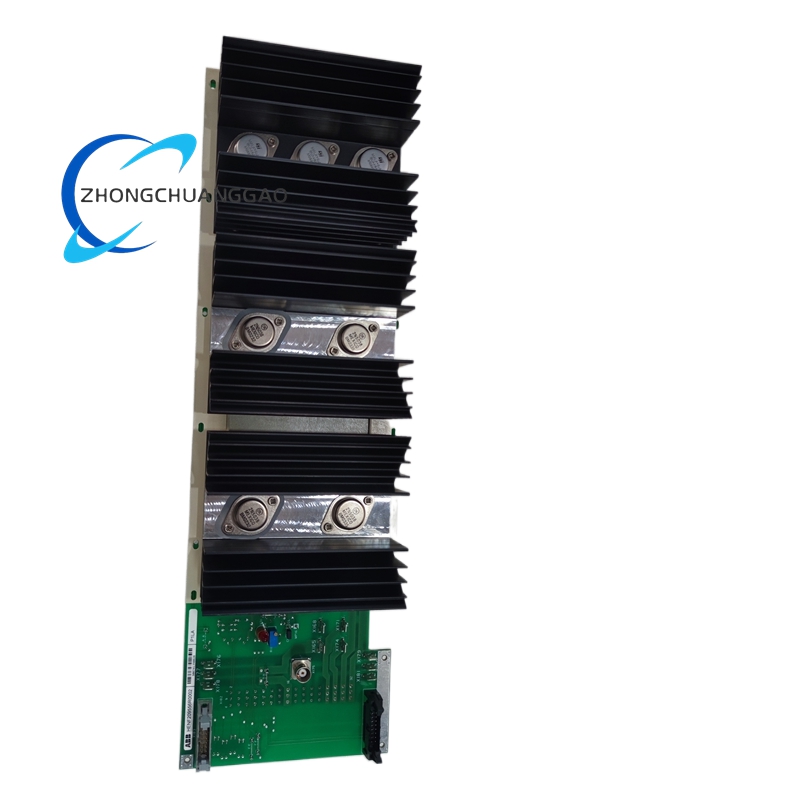

ABB PILA HENF209556R0002 Control Module

Description

Technical Specifications

Functional Features

1. High‑Speed Processing & Memory Capacity

   Equipped with a 100 MHz processor, the module rapidly executes complex control algorithms and real‑time data processing, ensuring responsive and accurate control of dynamic industrial processes. The 64 MB RAM and 128 MB Flash memory provide ample space for program storage, data logging, and parameter retention, supporting flexible and scalable control logic implementation.
2. Flexible I/O & Signal Conversion

   The 32 digital inputs and 32 digital outputs offer versatile connectivity for field devices such as sensors, actuators, and pushbuttons, enabling comprehensive system monitoring and control. Integrated 4‑channel analog outputs with 12‑bit resolution deliver precise 4–20 mA current and 0–10 V voltage signals, ensuring accurate actuation of valves, variable frequency drives, and other analog‑controlled equipment.
3. Reliable Communication & Data Exchange

   The module features Ethernet and RS‑232 interfaces, supporting high‑speed data transmission and seamless integration with SCADA systems, HMIs, and other control devices. Compatibility with Modbus TCP/IP ensures standardized and reliable communication across the industrial network, facilitating efficient data sharing and system interoperability.
4. Robust Environmental Hardening

   Designed to operate reliably across a wide temperature range (-25 °C to +70 °C) and high‑humidity conditions, the module withstands harsh industrial environments including dust, vibration, and electrical interference. Its IP20 protection rating safeguards internal circuitry, ensuring long‑term operational stability and reducing maintenance requirements.
5. Easy Integration & System Compatibility

   The board‑mount and DIN‑rail mount design simplifies installation and replacement in control cabinets, minimizing downtime during system setup or maintenance. It is fully compatible with ABB’s industrial control platforms, enabling straightforward integration into new or existing automation systems and supporting cost‑effective system upgrades.
6. Built‑In Protection & Diagnostics

   The module incorporates overvoltage, overcurrent, and short‑circuit protection to prevent damage from electrical faults, ensuring safe and continuous operation. Comprehensive diagnostic capabilities enable quick troubleshooting of communication errors, I/O faults, and program issues, reducing mean time to repair (MTTR) and enhancing overall system availability.

Application Scenarios

1. Manufacturing Automation Lines

   Deployed in automotive, electronics, and consumer goods manufacturing to control conveyor systems, robotic arms, and assembly processes. Ensures precise coordination of production steps, improves product quality, and increases line efficiency.
2. Process Industries (Oil & Gas, Chemicals)

   Used in oil and gas refineries, chemical plants, and pipeline systems for monitoring and controlling pressure, flow, and temperature. Provides reliable operation in hazardous areas, supporting safe and efficient process management.
3. Power Generation & Distribution

   Integrated into thermal, hydro, and renewable energy power plants to control generators, transformers, and switchgear. Ensures stable power output and rapid response to load changes, supporting grid reliability and power quality control.
4. Water & Wastewater Treatment

   Applied in water treatment plants and wastewater facilities to manage pumps, valves, and filtration systems. Enables precise control of water flow, level, and quality, ensuring compliance with environmental regulations and efficient resource utilization.
5. Material Handling & Logistics

   Utilized in port terminals, warehouses, and material handling systems to control cranes, conveyors, and automated storage/retrieval systems. Supports smooth and efficient movement of goods, optimizing logistics operations and reducing labor costs.
6. Building Automation & Smart Facilities

   Implemented in large commercial buildings, airports, and hospitals to control HVAC systems, lighting, and security systems. Provides energy‑efficient management of building resources, enhancing occupant comfort and reducing operational costs.
