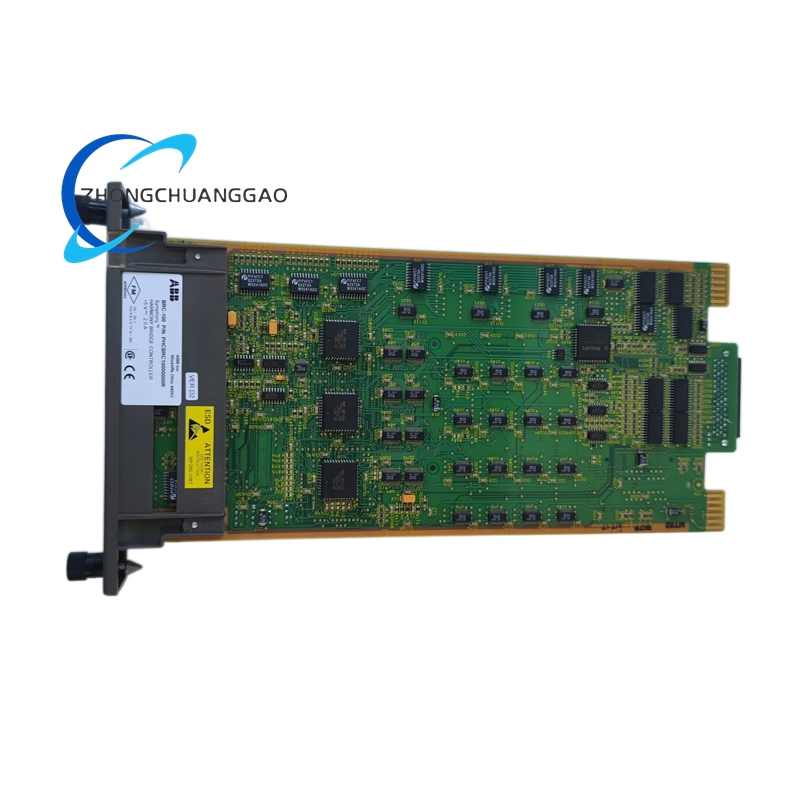

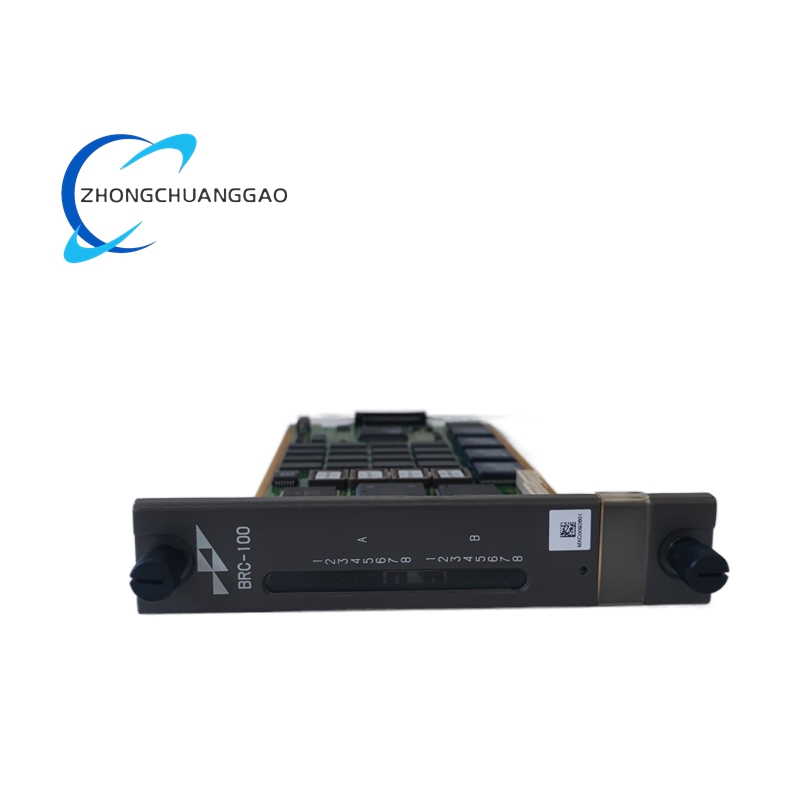

ABB PHCBRC10000000R (BRC100) Symphony Plus Harmony Bridge Controller

Description

Technical Specifications

• Manufacturer: ABB
• Model: PHCBRC10000000R (BRC100)
• Product Type: Harmony Bridge Controller / Rack Controller
• System Compatibility: ABB Symphony Plus, Bailey INFI 90 Harmony DCS
• Processor: 32‑bit industrial‑grade CPU for high‑speed real‑time processing
• Memory: Integrated program and data memory for large‑scale configuration and control logic storage
• Communication Interfaces:
  • System Bus: Symphony Plus Control Network (CNET) for system‑wide communication
  • I/O Bus: Harmony Local I/O Bus for direct connection to I/O modules
  • Optional Protocols: Modbus RTU, OPC, Ethernet for third‑party integration
• Electrical Isolation: Triple electrical isolation between channels, backplane, and system bus
• Power Supply: Backplane‑mounted 5 V DC / 24 V DC; supports redundant power configurations
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Protection Rating: Industrial‑grade, suitable for harsh factory environments
• Dimensions: 127 mm (W) × 76 mm (H) × 127 mm (D)
• Weight: 0.4 kg (0.88 lbs)
• Mounting: Standard rack‑mountable, hot‑swap compatible
• Redundancy: Supports 1:1 redundant configuration for high‑availability applications
• Certifications: CE, UL compliant; meets industrial EMC and safety standards

Functional Features

• Core System Hub: Acts as the central bridge between local I/O subsystems and the higher‑level Symphony Plus control network, enabling efficient data routing and system‑wide coordination.
• Real‑Time Control Execution: Executes complex control algorithms and logic programs with minimal latency, ensuring precise and responsive process regulation.
• High‑Speed I/O Management: Directly interfaces with and manages a full range of Harmony I/O modules, including analog, digital, and specialty I/O, for comprehensive process data acquisition and control.
• Advanced Redundancy: 1:1 redundant operation ensures uninterrupted control; automatic failover occurs without process disruption, maximizing system availability.
• Comprehensive Diagnostics: Built‑in self‑diagnostic tools continuously monitor module health, communication status, and I/O integrity, providing proactive alerts for predictive maintenance.
• Hot‑Swappable Design: Allows for installation, removal, or replacement without powering down the entire system, significantly reducing maintenance downtime.
• Multi‑Protocol Integration: Supports standard industrial communication protocols (Modbus, OPC, Ethernet) for seamless connectivity with PLCs, SCADA systems, and third‑party devices.
• Robust Electrical Isolation: Triple‑level isolation protects against electrical noise, ground loops, and transient voltages, ensuring signal integrity and system safety in harsh industrial environments.
• Scalable Architecture: Modular design supports system expansion, allowing the addition of more I/O modules and controllers to accommodate growing process requirements.
• Hazardous Area Compatibility: Certified for operation in Class I, Division 2, Groups A‑D, T4 hazardous locations, suitable for use in potentially explosive atmospheres.

Application Scenarios

• Power Generation: Fossil fuel and renewable power plants for boiler control, turbine governing, and balance‑of‑plant automation.
• Oil & Gas: Refineries, offshore platforms, and pipeline systems for process control, safety instrumented functions, and asset management.
• Chemical & Petrochemical: Continuous and batch chemical processing plants for reactor control, distillation, and material handling.
• Metals & Mining: Smelters, rolling mills, and ore processing facilities for furnace control, material handling, and quality assurance.
• Water & Wastewater: Municipal water treatment plants and desalination facilities for pump control, filtration, and distribution system management.
• Pulp & Paper: Paper mills and converting lines for process control, web tension management, and quality control.
• Pharmaceuticals: GMP‑compliant manufacturing facilities for precise control of reaction processes, drying, and packaging lines.
• Food & Beverage: Processing plants for batch control, pasteurization, and packaging line automation.
• Cement & Building Materials: Kiln control, raw material handling, and finished product packaging in cement production facilities.
