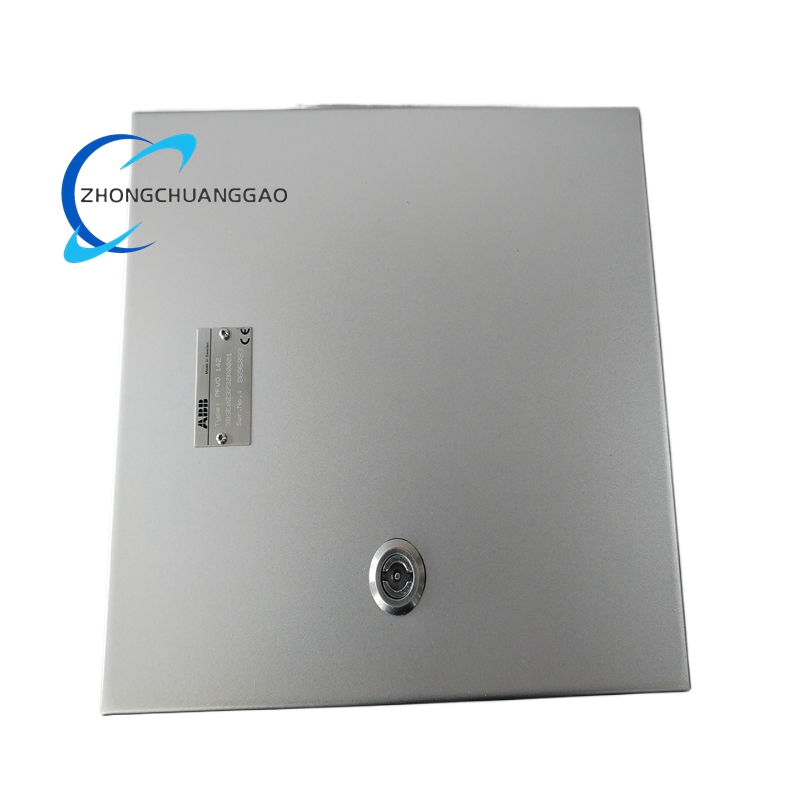

ABB PFVO142 3BSE023732R1 Matching Unit

Description

Technical Specifications

Functional Features

1. High‑Power Excitation for Heavy‑Duty Sensors

   Delivers a stable 25 A excitation current at 1638 Hz, specifically engineered to drive high‑capacity PFVL141 roll force load cells (>8 MN). This ensures strong, low‑impedance AC signals that maintain measurement accuracy even under extreme mechanical loads and electrical noiseABB.
2. Pressductor® Technology Compatibility

   Optimized for ABB’s Pressductor® magnetoelastic measurement principle, the unit preserves the inherent advantages of low impedance, high signal power, and exceptional resistance to electromagnetic interference (EMI), ground faults, and insulation degradationABB. It guarantees reliable signal transmission in electrically harsh rolling mill environments.
3. Precise Impedance Matching

   Provides exact impedance matching between the PFVL141 load cell and the control system, eliminating signal reflections and ensuring maximum power transfer. This matching capability is critical for maintaining measurement linearity and minimizing errors in high‑force rolling applications.
4. Robust Stainless Steel Construction

   Housed in a durable stainless steel enclosure, the unit withstands extreme temperatures, vibration, dust, and moisture typical in steel mills. The IP65 rating ensures protection against harsh process conditions, extending operational life and reducing maintenance requirementsABB.
5. Long‑Distance Signal Transmission

   Supports cable runs of up to 25 meters between the matching unit and the load cell, offering flexible installation options in large rolling mill setups. This long‑range capability maintains signal integrity without amplification or signal loss.
6. Full Interchangeability & Hot‑Swap Support

   Designed for full interchangeability between PFVL141 load cells, simplifying spare parts management and maintenance. The unit supports hot‑swap replacement, allowing installation or replacement without shutting down the rolling process, minimizing downtime.
7. Integrated Protection Circuits

   Incorporates overcurrent, overvoltage, and short‑circuit protection to safeguard both the matching unit and connected load cells. Fast‑response protection circuits (<5 ms) prevent damage from transient electrical events, ensuring continuous operation.

Application Scenarios

1. Steel Hot & Cold Rolling Mills

   Deployed in heavy‑duty rolling stands for measuring roll force in hot strip mills, cold rolling mills, and plate mills. Ensures precise force control for thickness uniformity, flatness, and material quality in high‑capacity steel production lines.
2. Aluminum & Non‑Ferrous Metal Rolling

   Used in aluminum foil, sheet, and strip rolling lines to monitor and control roll force during high‑speed processing. Maintains consistent material properties and prevents defects in thin‑gauge non‑ferrous metal production.
3. Heavy Plate & Structural Steel Manufacturing

   Integrated into heavy plate mills and structural steel rolling lines for accurate force measurement during forming and shaping processes. Supports quality control and process optimization in large‑scale metal fabrication.
4. Tandem Rolling Mill Control Systems

   Implemented in multi‑stand tandem mills to provide synchronized roll force data across all stands. Enables coordinated control for uniform material reduction and consistent product dimensions in continuous rolling operations.
5. High‑Capacity Metal Processing Lines

   Applied in forging presses, extrusion lines, and heavy machinery where extreme force measurement is required. Delivers reliable data for process monitoring, equipment protection, and quality assurance in heavy industrial environments.
