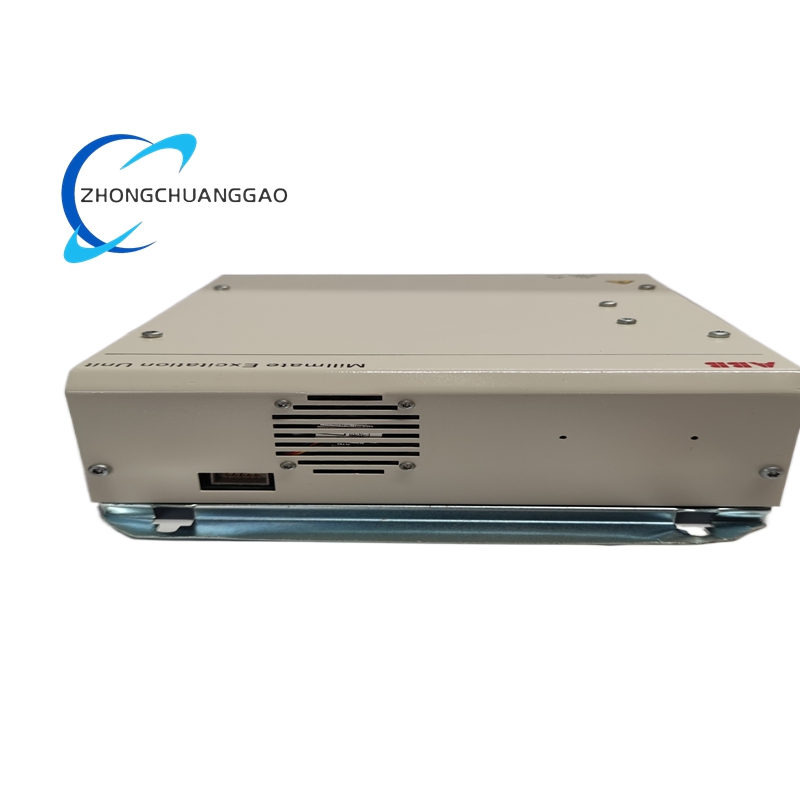

ABB PFVI401 Millmate Excitation Unit

Description

Technical Specifications

• Manufacturer: ABB
• Model: PFVI401
• Product Type: Millmate Excitation Unit / Rolling Force Measurement Module
• Supply Voltage: 100–240 VAC, 50/60 Hz; 24 VDC (18–36 VDC)
• Power Consumption: 15 W
• Load Cell Excitation: 10 VDC, high‑stability output for load cell powering
• Analog Inputs: 2–4 channels for load cell force signals
• Analog Outputs: 4 configurable channels (0–10 VDC / 4–20 mA) for force data transmission
• Digital I/O: 8 digital inputs; 8 digital outputs for control and status signaling
• Auxiliary Power Output: +24 VDC, max 0.5 A for external sensors/displays
• Communication Interfaces:
  • Ethernet: For service, configuration, and multi‑unit networking
  • RS‑232: 2 ports for external displays and local control
  • RS‑485: 1 port for remote display integration
  • PROFIBUS DP (optional): High‑speed industrial bus connectivity
• Measurement Range: Configurable for various load cell capacities (kN, MN, t, lb)
• Filtering: Adjustable digital filtering (1–2000 ms) for signal stabilization
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Protection Rating: IP20 (panel‑mounted enclosure)
• Dimensions: 278 mm × 195 mm × 60 mm
• Weight: 1.5 kg
• Mounting: Panel or rack‑mountable
• Certifications: CE, RoHS compliant; meets industrial EMC standards

Functional Features

• High‑Stability Excitation: Delivers clean, regulated 10 VDC power to load cells, ensuring accurate and drift‑free force measurement.
• Multi‑Channel Signal Processing: Accepts up to 4 load cell inputs, supporting multi‑point force measurement in rolling mills.
• Flexible I/O Configuration: 4 analog outputs and 16 digital I/O points enable seamless integration with diverse control architectures.
• Advanced Filtering: User‑adjustable digital filtering (1–2000 ms) eliminates noise and ensures stable readings in high‑vibration environments.
• Comprehensive Communication Suite: Ethernet, RS‑232, RS‑485, and optional PROFIBUS DP support remote monitoring, configuration, and system integration.
• Predefined Measurement Modes: Built‑in standard measurement profiles simplify setup for common rolling mill configurations.
• Built‑in Load Cell Database: Preloaded load cell parameters reduce calibration time and ensure compatibility with various sensor types.
• Self‑Diagnostic System: Continuous monitoring of sensor health, signal quality, and module status; provides fault alerts for predictive maintenance.
• Multi‑Unit Scalability: Can be networked with other PFVI401 modules to support large‑scale, multi‑stand rolling mill installations.
• User‑Friendly Configuration: Intuitive setup via Ethernet or serial interfaces, with support for multiple engineering units (N, kN, MN, t, lb).

Application Scenarios

• Steel Rolling Mills: Hot and cold rolling mills for strip, plate, and sheet production; precise rolling force control and roll gap regulation.
• Non‑Ferrous Metal Processing: Aluminum, copper, and brass rolling and extrusion lines; force monitoring for quality control.
• Paper & Pulp Industry: Calenders, supercalenders, and large paper machines; web tension and roll force measurement.
• Rubber & Tire Manufacturing: Calendering lines for rubber sheets and tire cord fabrics; precise force control for material thickness uniformity.
• Plastics & Films: Film extrusion and calendering lines; roll force monitoring for consistent film thickness.
• Metal Forming: Presses, stamping machines, and roll forming lines; load monitoring to prevent overload and ensure product consistency.
• Converting Industry: Laminating, coating, and slitting lines for metal, paper, and plastic webs; tension and force control for high‑quality output.
