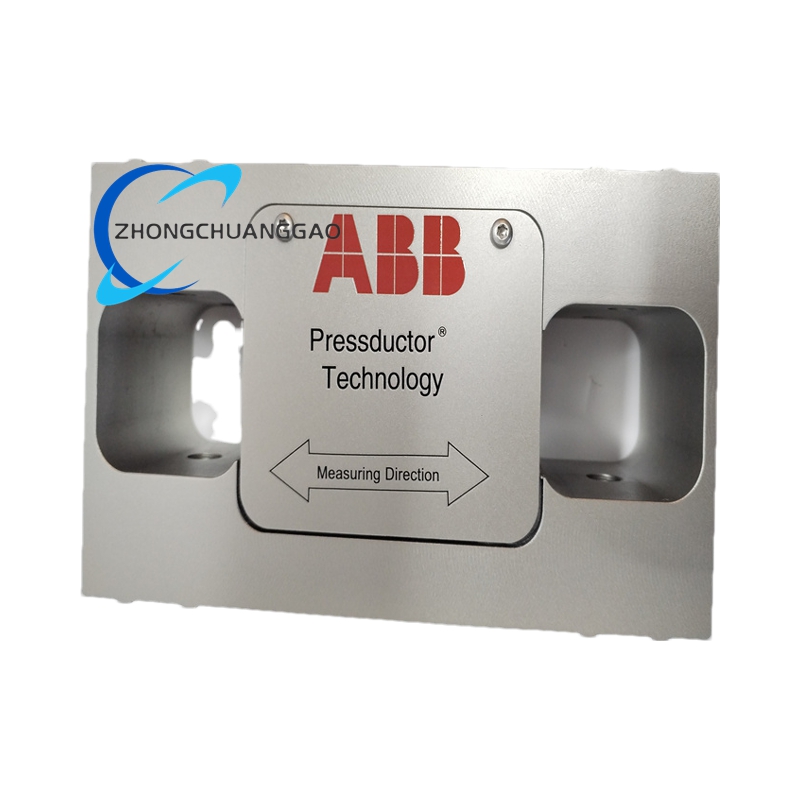

ABB PFTL101A 2.0KN – Tension Force Transducer

Description

• Rated Capacity: 2 000 N
• Overload Safe: 150 % rated load
• Sensitivity: 2 mV/V ±0.1 %
• Combined Error: ≤ ±0.5 % of rated output
• Excitation Voltage: 5 – 12 V DC, ripple < 1 %
• Insulation Resistance: > 5 GΩ at 50 V DC
• Bridge Resistance: 350 Ω ±3 Ω
• Temperature Range:
  – Operating: –10 °C … +80 °C
  – Compensated: 0 °C … +60 °C
• Temperature Effect on Zero: < ±0.02 % / °C
• Temperature Effect on Span: < ±0.02 % / °C
• Mechanical Protection: IP65 (IP67 option)
• Material: Stainless-steel sensing element, anodised aluminium housing
• Cable: 10 m PUR-jacketed, 4-wire shielded, Ø 5 mm
• Mounting: Pillow-block bearing adapter, M12 threaded holes

• High stiffness, low deflection – maintains web geometry
• Strain-gauge full-bridge technology delivers fast dynamic response
• Hermetic sealing resists dust, moisture and aggressive media
• Integrated overload stop prevents sensor damage during web breaks
• Compatible with ABB PFEA series tension controllers via plug-and-play cable

• Paper machines: measuring web tension between dryer sections and reels
• Film & foil lines: controlling unwind/rewind torque in vacuum coaters
• Steel cold-rolling mills: strip tension feedback for automatic gauge control
• Textile finishing: tension regulation of synthetic fibre webs
• Wire & cable: tension monitoring during drawing and annealing processes
