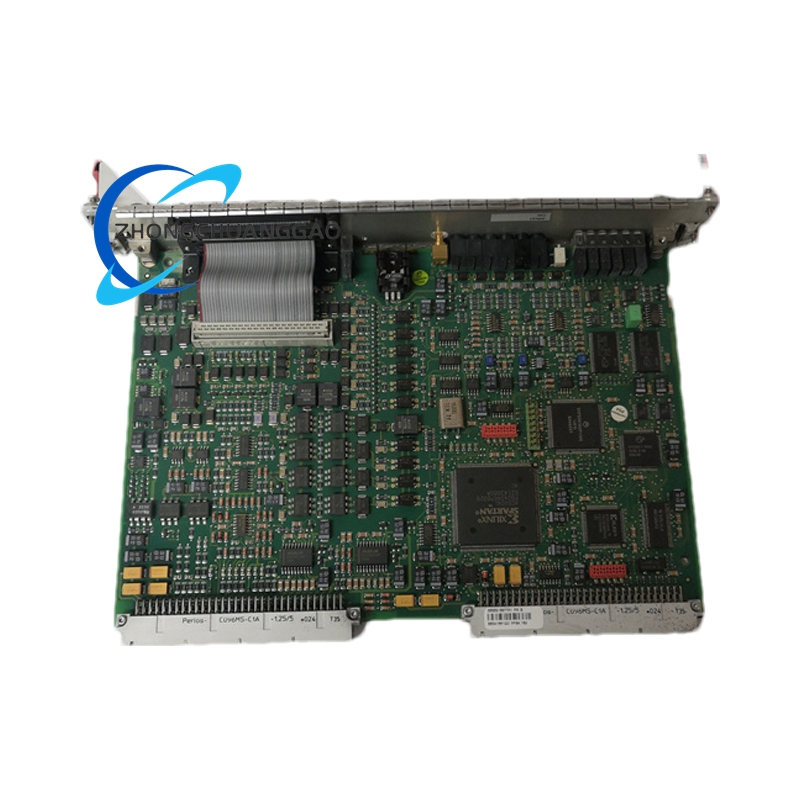

ABB PFSK152 3BSE018877R1 – System Control Module

Description

• Ethernet: Modbus TCP, Profinet, EtherNet/IP
• Fieldbus: CANopen, DeviceNet
• Serial: RS-232 / RS-485 service port
  I/O (per configuration):
• Digital: 24 VDC DI/DO, opto-isolated
• Analog: 4–20 mA or 0–10 V AI/AO, 16-bit
  Memory: embedded Flash for firmware; slot for add-on I/O cards
  Power: 24 VDC ±10 %, 5 W typical
  Isolation: 2.5 kV between channels and system
  Response time: ≤ 2 µs
  Operating temperature: –40 °C to +85 °C
  Humidity: 5 %–95 % non-condensing
  Shock/vibration: IEC 60068 compliant
  Dimensions: 250 mm × 210 mm × 140 mm, 6.5 kg
  Protection: IP20

• High-precision signal processing with low latency
• Redundant power inputs and hot-swap capable
• Modular design allows online expansion of digital, analog or specialty I/O
• Parameterised through ABB Automation Studio or Control Builder M

• Discrete manufacturing lines: automotive, food & beverage, packaging, textiles
• Process industries: temperature, pressure, flow closed-loop control in chemical, metals
• Power generation: turbine/generator monitoring, transformer management
• Infrastructure: rail signalling, building automation, environmental monitoring
