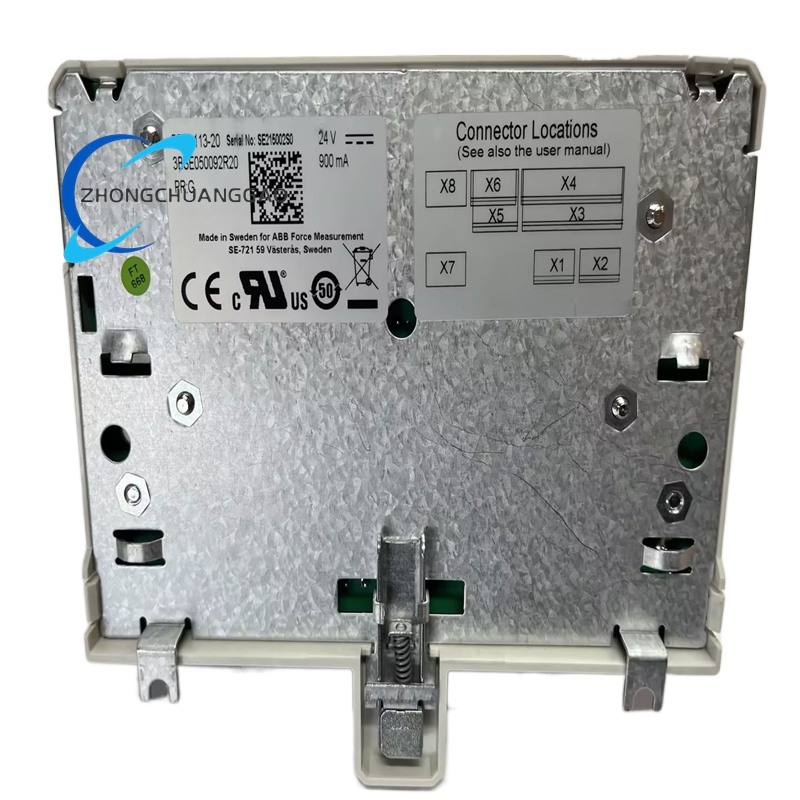

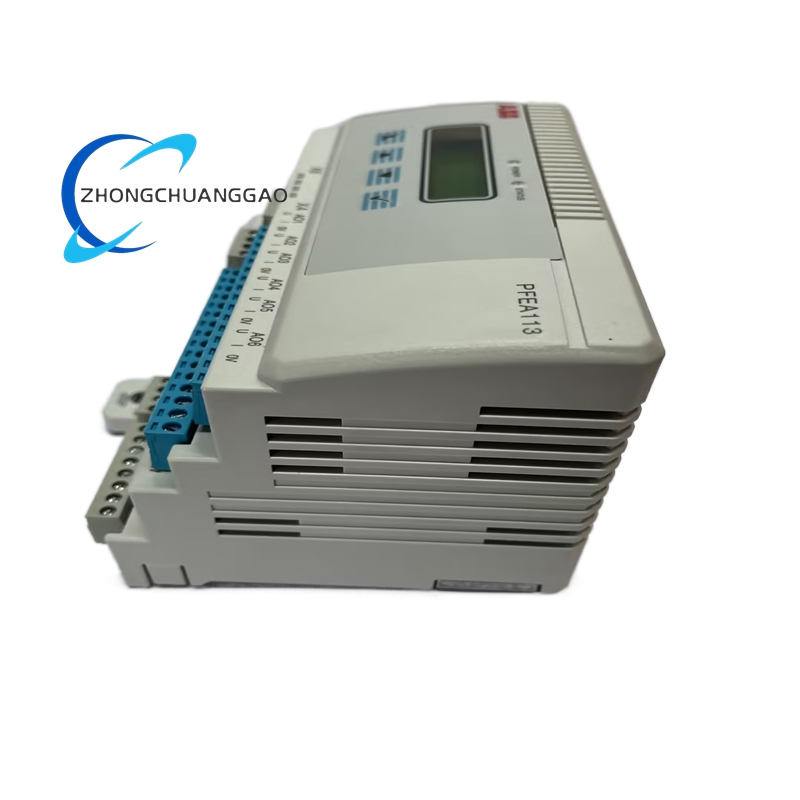

ABB PFEA113-20 3BSE050092R20 Tension Control Module

Description

Technical Specifications

Functional Features

1. Four‑Channel High‑Density Load Cell Processing

   Supports up to four load cell inputs for multi‑zone tension measurement, enabling simultaneous monitoring and control of complex web paths. It provides individual, SUM (total tension), and DIFF (differential tension) calculation modes, ideal for segmented winders, multi‑roll systems, and high‑density production lines.
2. Flexible I/O Configuration

   Features six configurable analog outputs (voltage/current) and four digital outputs for direct integration with drives, PLCs, and alarm systems. Digital outputs indicate system status, alarms, and level detection, while analog outputs can be scaled to match specific process requirements.
3. High‑Speed PROFIBUS DP Communication

   Delivers up to 12 Mbps data transfer for real‑time tension data transmission, remote parameter configuration, and diagnostic monitoring. It supports GSD file integration for seamless connection to PLCs (e.g., Siemens, ABB) and SCADA systems, enabling centralized control and monitoring.
4. Adaptive Gain Scheduling & Zero Reset

   Allows remote zero reset and gain switching via digital input or PROFIBUS signals, supporting two different web path gain settings. This feature ensures accurate tension control across varying machine setups and material types, reducing manual calibration errors.
5. Advanced Signal Processing & Filtering

   Incorporates built‑in amplification, isolation, and linearization for tension signals. Selectable filtering and step response settings optimize control stability for high‑speed web processes, suppressing electromagnetic interference and ensuring low‑noise signal output.
6. Comprehensive Self‑Diagnostics & Alarms

   Monitors sensor health, communication status, and system faults in real time. It triggers alarms via digital outputs or PROFIBUS for over‑tension, under‑tension, sensor failure, and communication errors, reducing downtime and simplifying maintenance.
7. System Scalability & Modular Integration

   Supports combining up to three PFEA113-20 modules to build systems with up to 12 load cells, enabling distributed control for large‑scale web handling applications. It is fully compatible with ABB ACS series drives and third‑party PLC/SCADA systems, facilitating retrofits and new installations.
8. User‑Friendly Local Operation

   Equipped with a multi‑language LCD and front‑panel keys for local setup, parameter adjustment, and real‑time status monitoring. Tension units and display modes (individual/sum/diff) are easily selectable, reducing operator training requirements.

Application Scenarios

1. Paper & Board Manufacturing

   Used in paper machines, coaters, slitter‑rewinders, and converting lines. It maintains precise tension during web formation, coating, and slitting, optimizing sheet quality, minimizing breaks, and supporting high‑speed production in paper mills.
2. Steel & Metal Processing

   Deployed in rolling, slitting, laminating, and galvanizing lines for steel strips, aluminum foils, and metal sheets. It ensures uniform tension to prevent material deformation, maintain thickness consistency, and support high‑speed processing in metal fabrication plants.
3. Packaging & Printing Machinery

   Applied in flexographic, rotogravure, and offset printing presses, as well as food, pharmaceutical, and consumer goods packaging lines. It controls tension for films, foils, labels, and paper webs, preventing wrinkling/breakage and maintaining print registration accuracy.
4. Textile & Nonwoven Production

   Used in spinning, weaving, dyeing, and finishing lines to regulate tension for fabrics, yarns, and nonwoven materials. It delivers stable tension control during stretching, coating, and winding processes, improving product uniformity and reducing defects.
5. Plastic Film & Extrusion Lines

   Integrated into extrusion, casting, and biaxial stretching lines for plastic films, sheets, and profiles. It ensures precise tension control during material forming and cooling, preventing stretching or warping and ensuring dimensional accuracy.
6. Wire & Cable Manufacturing

   Deployed in wire drawing, stranding, and coating lines for copper, aluminum, and fiber optic cables. It controls tension during production to prevent cable damage or elongation, ensuring consistent diameter and performance.
7. Tire & Rubber Processing

   Used in calendering and extrusion lines for rubber sheets and tire components. It provides precise tension control during material feeding and shaping, ensuring consistent thickness and quality in tire manufacturing processes.
