Product Introduction

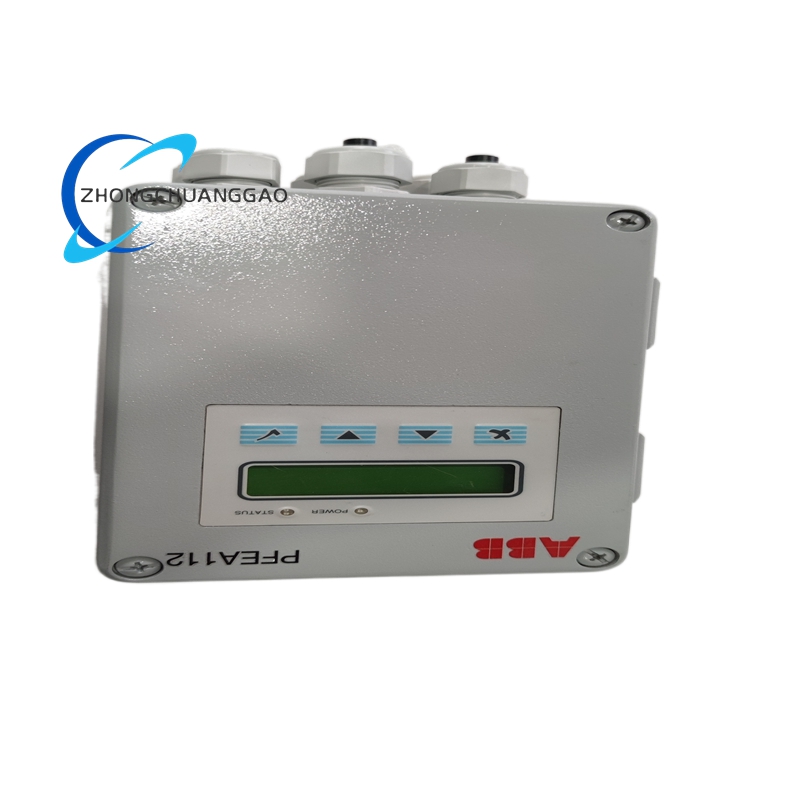

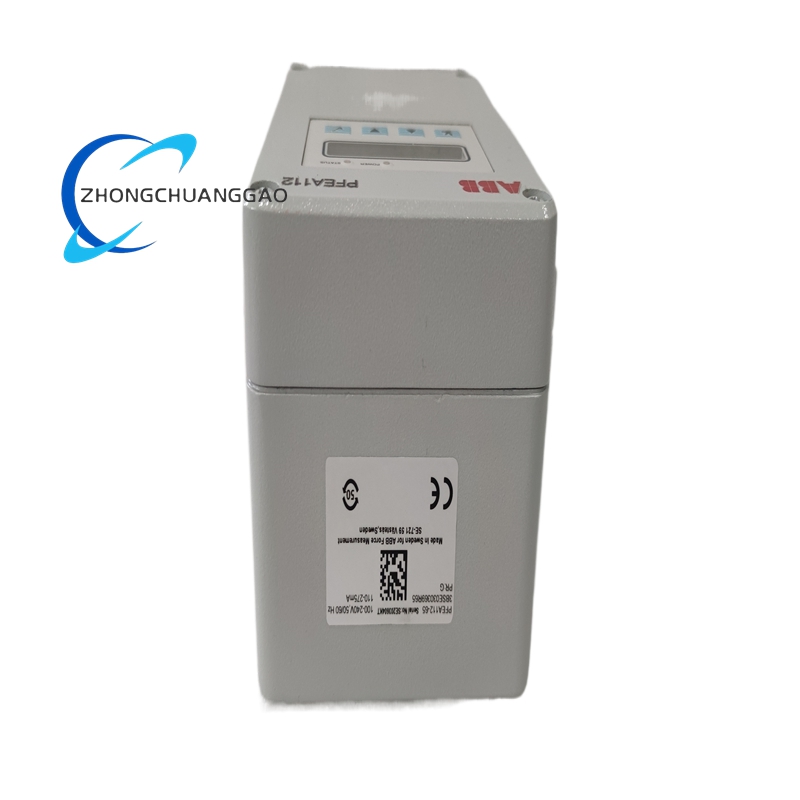

The ABB PFEA112-65 is a high‑precision, industrial‑grade tension control and measurement module engineered for accurate web tension monitoring and closed‑loop regulation in continuous manufacturing processes. It serves as a core interface between tension sensors and industrial control systems, converting sensor signals into stable control outputs to maintain consistent material tension. Built with a robust IP65 enclosure and advanced signal processing capabilities, it operates reliably in harsh, dusty, and wet environments. This module integrates seamlessly with ABB drive systems, PLCs, and DCS platforms, delivering stable performance for web‑handling applications across multiple industries. As a member of the PFEA11 series, it combines high accuracy with flexible fieldbus communication, ensuring consistent material quality, minimizes production defects, and optimizes process efficiency.
Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PFEA112-65 |
| Product Type | Tension Electronics Module / Tension Measurement Amplifier |
| Supply Voltage (IP65 Version) | 24 VDC (18–36 VDC); 100–240 VAC (100–15% to 240+10%) |
| Power Consumption | 7.5 W |
| Frequency | 45–65 Hz |
| Input | Dual‑channel tension sensor input; supports Pressductor and strain‑gauge load cells; 2 load cells plus 5 Ω cable resistance |
| Load Cell Excitation | 10 VDC |
| Tension Measurement Range | 0–65 N (standard); configurable for extended ranges |
| Control Accuracy | ±0.1% full‑scale precision |
| Response Time | ≤ 50 ms |
| Signal Processing | Real‑time calculation of SUM (A+B) and DIFF (A‑B) tension values; adjustable digital filtering (15, 30, 75, 250, 750, 1500 ms) |
| Output Signals | 1 channel of -5 to +11 VDC (max load 5 mA); 1 channel of 0–21 mA (max load 550 Ω); configurable scaling function |
| Communication Interfaces | PROFIBUS DP (baud rate up to 12 Mbit/s); supports integration with ABB 800xA and third‑party control systems |
| Physical Form Factor | Enclosed IP65 (NEMA 4) design; wall‑mountable; compact industrial housing |
| Weight | 1 kg |
| Operating Temperature | -40°C to +70°C (wide‑temperature industrial range) |
| Protection Rating | IP65 / NEMA 4 (dust‑tight and water‑resistant) |
| Certifications | CE, UL, cUL compliance; meets industrial EMC standards (2014/30/EU); Low Voltage Directive (2014/35/EU) |
| Self‑diagnostics | LED status indicators (green/red); alarm via PROFIBUS; fault detection for sensors, signals, and module |
Functional Features
- High‑Precision Closed‑Loop Control: Implements advanced PID algorithms for ultra‑stable tension regulation, compensating for real‑time fluctuations to prevent material breakage, wrinkling, or slack. The ±0.1% full‑scale precision ensures consistent tension accuracy across the entire measurement range.
- Dual‑Channel Sensor Support: Accepts inputs from two tension sensors, enabling differential and sum tension calculations for balanced web control across wide material widths. Supports up to 5 Ω cable resistance for flexible sensor placementABB.
- IP65 Rugged Design: Dust‑tight and water‑resistant construction, suitable for installation in harsh industrial environments with high dust, moisture, and vibration. The IP65 enclosure protects against water jets and solid contaminants.
- Advanced Signal Filtering: Adjustable digital filtering (15–1500 ms) to suppress mechanical vibration and electromagnetic interference, ensuring stable and accurate tension readings in noisy industrial environmentsABB.
- Multi‑Mode Operation: Supports manual, automatic, and constant tension control modes with seamless switching; includes simulation mode for system pre‑validation and commissioning.
- Intelligent Diagnostics & Protection: Built‑in self‑diagnosis detects sensor faults, signal overloads, and module malfunctions; triggers alarms via PROFIBUS or LED indicators; supports data logging for fault analysisABB.
- Flexible System Integration: Plug‑and‑play compatibility with ABB drives and control systems; PROFIBUS DP communication for high‑speed data exchange with PLCs, HMIs, and SCADA networks.
- User‑Friendly Interface: Integrated 2×16 character multi‑language display for real‑time tension monitoring (A, B, A+B, A‑B values); front‑panel keys for simplified parameter configuration; selectable tension units (N, kN, kg, lbs.)ABB.
- Energy‑Efficient Operation: Low power consumption design (7.5 W) for continuous, cost‑effective operation in 24/7 production environmentsABB.
- Wide Environmental Tolerance: Operates reliably across a temperature range of -40°C to +70°C, making it suitable for both indoor and outdoor industrial installations.
Application Scenarios
- Printing & Packaging: Flexographic, gravure, and offset printing presses; laminating, slitting, and bag‑making machines for high‑quality packaging production. Ensures precise tension control to prevent web breaks and print registration errors.
- Paper & Pulp: Paper machines, coating lines, and slitter‑rewinders to maintain consistent web tension during printing, coating, and converting processes. Reduces paper breaks and improves sheet quality.
- Textile Manufacturing: Fiber spinning, weaving, and dyeing lines; film and nonwoven fabric production lines requiring stable tension control. Prevents yarn breakage and fabric wrinkling.
- Plastics & Films: Extrusion, coating, and converting lines for plastic films, sheets, and flexible packaging materials. Ensures uniform film thickness and reduces defects during high‑speed production.
- Metal Processing: Steel, aluminum, and stainless‑steel rolling mills; cold‑rolling lines for thin strip and foil production. Maintains precise tension to prevent strip breakage and edge defects.
- Wire & Cable: Wire drawing, stranding, and winding machines for precise tension control in cable manufacturing. Ensures consistent wire diameter and insulation quality.
- Converting Industry: Slitting, rewinding, and laminating operations across various web materials, ensuring uniform tension and product consistency. Critical for maintaining tight roll tolerances and reducing waste.
- Rubber & Tire: Calendering lines for rubber sheets and tire cord fabrics, maintaining precise tension in material processing. Prevents fabric stretching and ensures uniform rubber coating.
