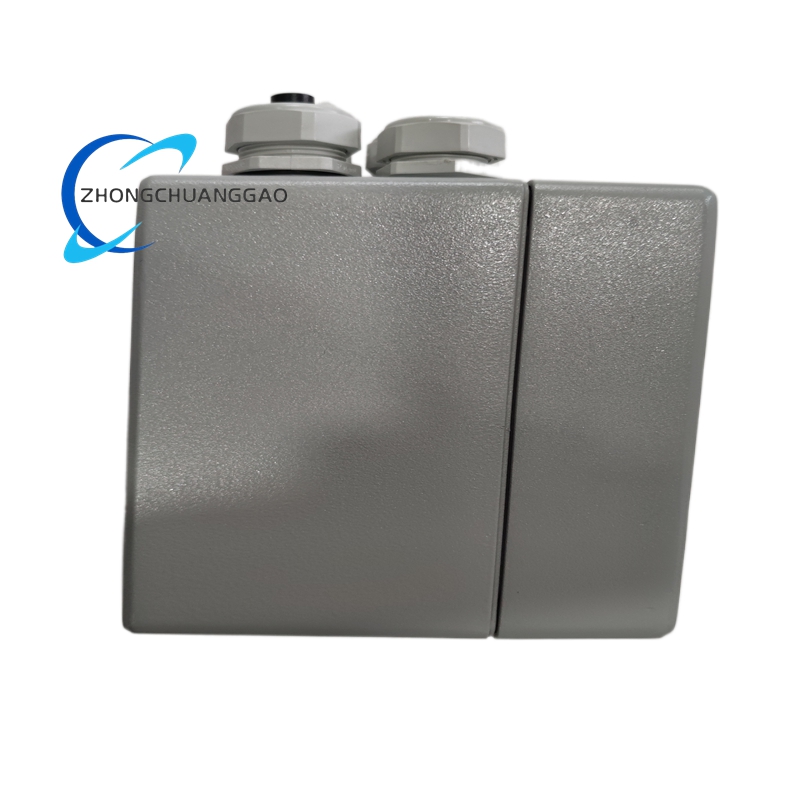

ABB PFEA112-65 IP65 Tension Control Module

Description

Technical Specifications

Functional Features

1. Dual‑Channel High‑Precision Signal Processing

   Integrates two fully independent load cell channels for simultaneous tension measurement. It supports individual A/B channel display, SUM (total tension), and DIFF (differential tension) calculation modes, enabling precise control in complex web‑handling scenarios. Advanced amplification, filtering, and linearization algorithms ensure stable, low‑noise signal output even under high‑speed operation.
2. IP65‑Rated Rugged Design

   Features a sealed, IP65‑protected enclosure that resists dust, moisture, and liquid splashes. This design allows direct mounting on production machinery or in exposed industrial areas without additional protective enclosures, ensuring reliable performance in harsh manufacturing environments.
3. Advanced Communication Integration

   Equipped with PROFIBUS DP V1, Modbus RTU, RS‑232, and RS‑485 interfaces for seamless connectivity to industrial control networks. It enables real‑time tension data transmission, remote parameter configuration, and diagnostics, supporting centralized control and monitoring of web processes.
4. Intuitive Local Operation & Configuration

   Includes a 2×16 character backlit LCD and front‑panel pushbuttons for local setup and monitoring. It supports multi‑language menus and flexible tension unit selection, allowing operators to adjust parameters, view real‑time values, and diagnose issues directly on the module.
5. Adaptive Wrap‑Angle Gain Compensation

   Incorporates automatic wrap‑angle gain adjustment for non‑standard roller contact angles (e.g., 115°). This feature eliminates manual calibration errors and ensures accurate tension measurement regardless of web path geometry, enhancing control stability across diverse machine setups.
6. Comprehensive Fault Detection & Alarms

   Provides real‑time monitoring of load cell health, signal integrity, and communication status. It triggers audible and visual alarms for over‑tension, under‑tension, sensor failure, and communication errors, enabling rapid troubleshooting and reducing unplanned downtime.
7. Flexible Installation & Compatibility

   Designed for standard DIN‑rail mounting, facilitating quick installation and integration into control cabinets or machine frames. It is fully compatible with ABB ACS series drives and third‑party PLC/SCADA systems, offering a versatile solution for retrofitting or new web‑handling equipment.

Application Scenarios

1. Packaging & Printing Machinery

   Deployed in high‑speed packaging lines, flexographic, and rotogravure printing presses to control tension for films, foils, labels, and paper webs. It ensures consistent material feeding, prevents wrinkling or breakage, and maintains precise print registration for high‑quality output.
2. Textile & Nonwoven Manufacturing

   Used in spinning, weaving, dyeing, and finishing lines to regulate tension for fabrics, yarns, and nonwoven materials. It delivers stable tension control during stretching, coating, and winding processes, improving product uniformity and reducing defects.
3. Paper & Board Processing

   Applied in paper machines, coaters, slitter‑rewinders, and converting lines. It maintains precise tension during web formation, coating, and slitting, optimizing sheet quality, minimizing breaks, and supporting high‑speed production in paper mills.
4. Plastic & Metal Film Processing

   Integrated into extrusion, laminating, and slitting lines for plastic films, aluminum foils, and steel strips. It ensures uniform tension to prevent material deformation, maintain thickness consistency, and enable efficient high‑speed processing.
5. Cable & Wire Manufacturing

   Used in wire drawing, stranding, and coating lines to control tension for copper, aluminum, and fiber optic cables. It prevents cable stretching or breakage during production, ensuring dimensional accuracy and product integrity.
6. Rubber & Tire Production

   Deployed in calendering and extrusion lines for rubber sheets and tire components. It provides precise tension control during material feeding and shaping, ensuring consistent thickness and quality in tire manufacturing processes.
