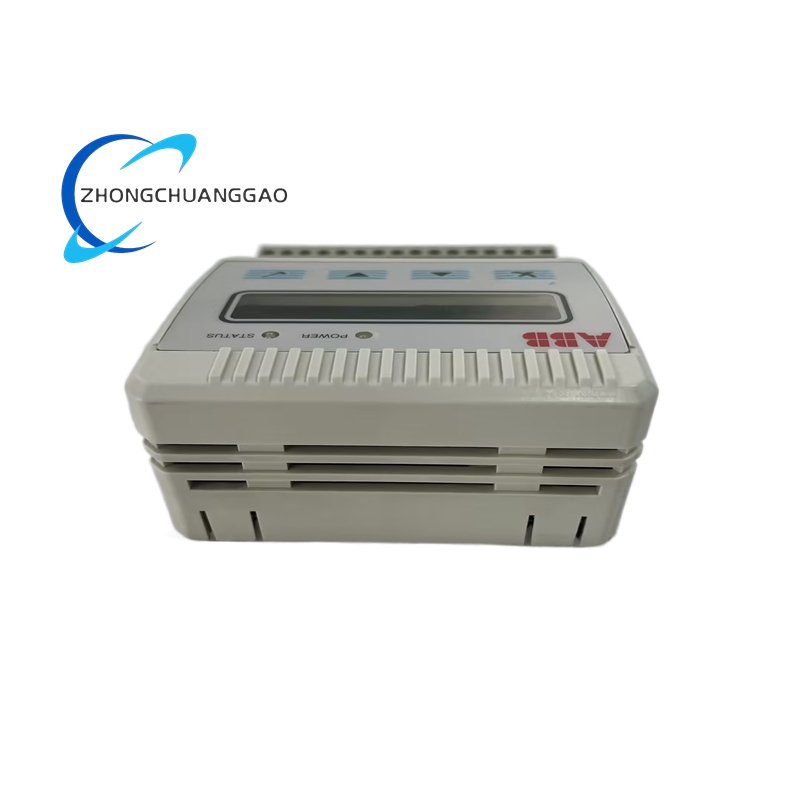

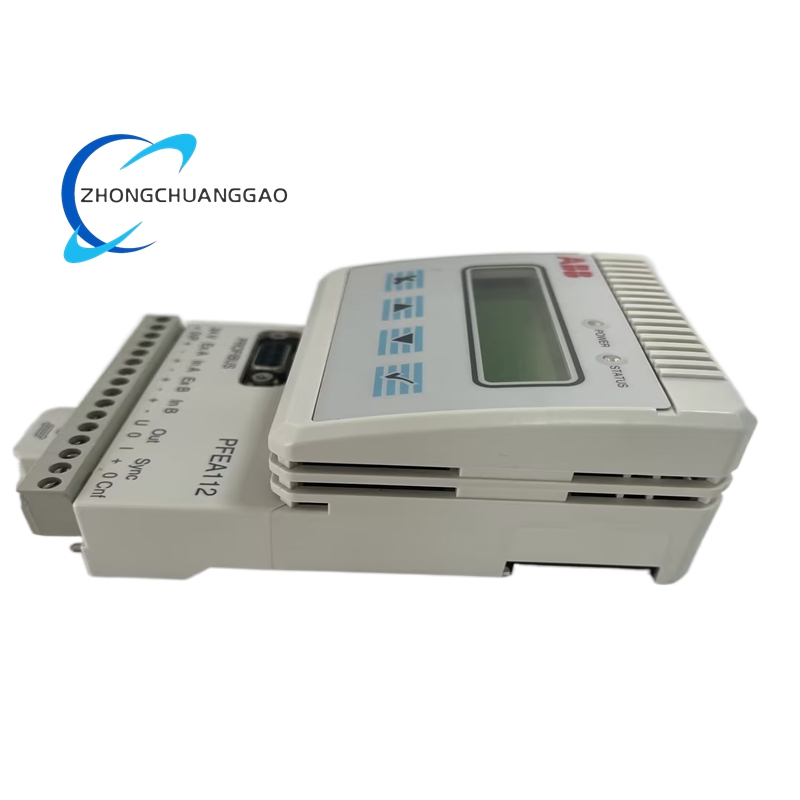

ABB PFEA112-20 Tension Control Electronics Module

Description

Technical Specifications

• Manufacturer: ABB
• Model: PFEA112-20
• Product Type: Tension Control Electronics Module / Tension Measurement Amplifier
• Supply Voltage: 24 VDC (18–36 VDC operating range)
• Power Consumption: 7.5 W
• Input: Dual‑channel tension sensor input; supports Pressductor and strain‑gauge load cells
• Signal Processing: Real‑time calculation of SUM (A+B) and DIFF (A‑B) tension values; adjustable digital filtering
• Control Accuracy: ±0.1% full‑scale precision
• Response Time: ≤ 50 ms
• Output Signals: 0–10 VDC analog voltage; 4–20 mA analog current; configurable scaling function
• Communication Interfaces: Profibus‑DP, Modbus RTU/TCP, RS‑485, CANopen
• Physical Dimensions: 120 mm × 80 mm × 35 mm (compact DIN‑rail mountable form factor)
• Weight: 0.32 kg
• Operating Temperature: -40°C to +70°C
• Protection Rating: IP20 (for cabinet installation)
• Certifications: CE, UL, cUL compliance; meets industrial EMC standards

Functional Features

• High‑Precision Closed‑Loop Control: Implements advanced PID algorithms for ultra‑stable tension regulation, compensating for real‑time fluctuations to prevent material breakage, wrinkling, or slack.
• Dual‑Channel Sensor Support: Accepts inputs from two tension sensors, enabling differential and sum tension calculations for balanced web control across wide material widths.
• Advanced Signal Filtering: Adjustable digital filtering technology effectively suppresses mechanical vibration and environmental electromagnetic interference, ensuring stable and accurate tension readings.
• Multi‑Mode Operation: Supports manual, automatic, and constant tension control modes with seamless switching; includes simulation mode for system pre‑validation.
• Intelligent Diagnostics & Protection: Built‑in self‑diagnosis detects sensor faults, signal overloads, and module malfunctions; triggers alarms or safety shutdowns; supports data logging for fault analysis.
• Flexible System Integration: Plug‑and‑play compatibility with ABB drives and control systems; supports multiple communication protocols for easy connection to PLCs, HMIs, and SCADA networks.
• User‑Friendly Interface: Integrated display for real‑time tension monitoring (A, B, A+B, A‑B values); front‑panel keys for simplified parameter configuration.
• Industrial‑Grade Durability: Rugged construction with wide temperature tolerance and strong electromagnetic interference resistance, suitable for environments with motors and frequency converters.

Application Scenarios

• Printing & Packaging: Flexographic, gravure, and offset printing presses; laminating, slitting, and bag‑making machines for high‑quality packaging production.
• Paper & Pulp: Paper machines, coating lines, and slitter‑rewinders to maintain consistent web tension during printing, coating, and converting processes.
• Textile Manufacturing: Fiber spinning, weaving, and dyeing lines; film and nonwoven fabric production lines requiring stable tension control.
• Plastics & Films: Extrusion, coating, and converting lines for plastic films, sheets, and flexible packaging materials.
• Metal Processing: Steel, aluminum, and stainless‑steel rolling mills; cold‑rolling lines for thin strip and foil production.
• Wire & Cable: Wire drawing, stranding, and winding machines for precise tension control in cable manufacturing.
• Converting Industry: Slitting, rewinding, and laminating operations across various web materials, ensuring uniform tension and product consistency.
• Rubber & Tire: Calendering lines for rubber sheets and tire cord fabrics, maintaining precise tension in material processing.
