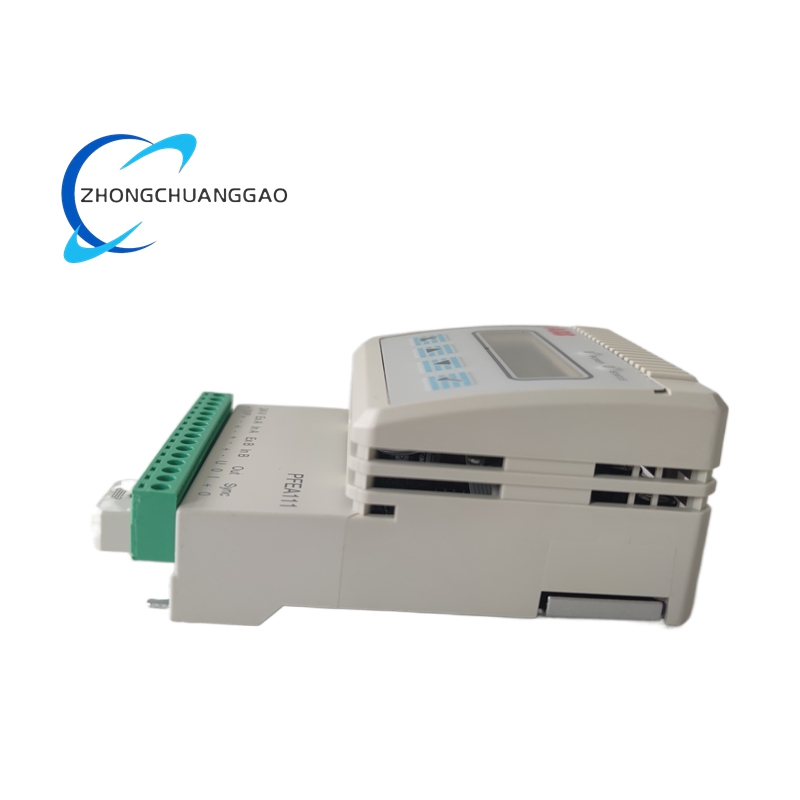

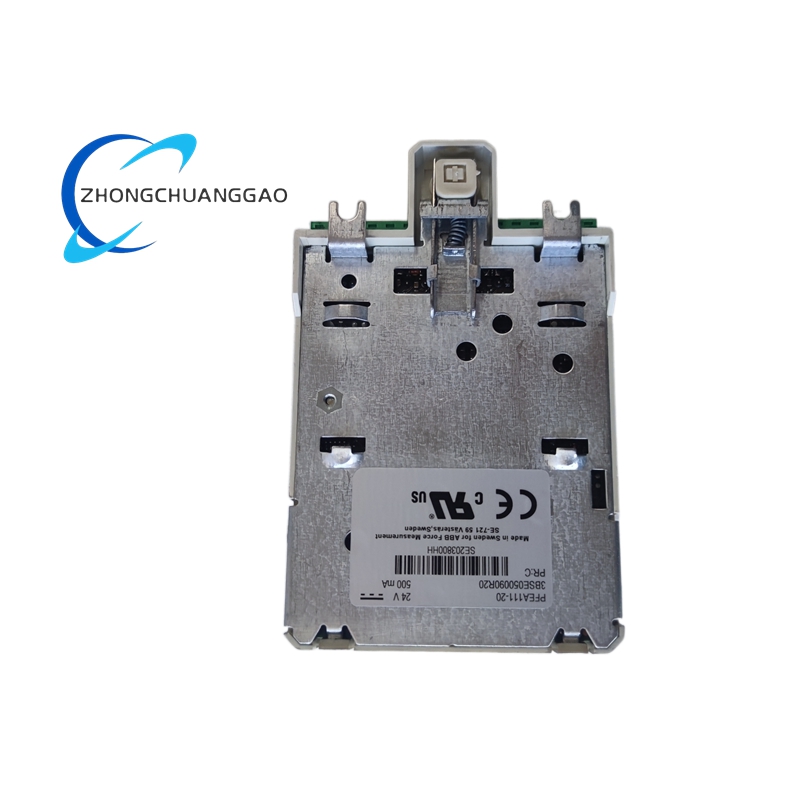

ABB PFEA111-20 3BSE050090R20 Tension Control Module

Description

Technical Specifications

Functional Features

1. Dual‑Mode Operation

   Combines high‑precision tension control and PROFIBUS DP V1 communication in one module. It processes tension feedback from load cells/transducers and enables seamless data exchange between ACS800 drives and industrial control networks.
2. High‑Precision Tension Regulation

   Delivers ±0.1% full‑scale control accuracy with fast response. It supports dual sensor inputs for differential tension measurement and provides adjustable signal filtering to suppress electromagnetic interference, ensuring stable tension in high‑speed web processes.
3. Multi‑Protocol Communication

   Integrates PROFIBUS DP V1 (up to 12 Mbps), Modbus RTU, Ethernet/IP, DeviceNet, and OPC UA. It enables real‑time data transmission to PLCs, SCADA, and cloud platforms, supporting remote monitoring, configuration, and diagnostics.
4. Advanced Signal Processing

   Features built‑in amplification, isolation, and linearization for analog tension signals. It supports 0–10 V and 4–20 mA I/O, with configurable output limits and alarm thresholds to protect materials and equipment.
5. Built‑in Diagnostics & Fault Detection

   Provides real‑time monitoring of sensor health, communication status, and system faults. It generates alarms for over‑tension, under‑tension, sensor failure, and communication errors, reducing downtime and simplifying maintenance.
6. Robust Industrial Design

   Operates reliably in harsh environments with wide temperature and humidity ranges. It offers galvanic isolation between input, output, and communication circuits, protecting against electrical noise and transient voltages.
7. Flexible Integration & Scalability

   DIN‑rail mountable for easy installation. It integrates directly with ABB ACS800 drives and supports expansion via fieldbus adapters, enabling distributed control and system scalability.

Application Scenarios

1. Packaging & Printing Machinery

   Used in food, pharmaceutical, and consumer goods packaging lines to control tension for films, foils, and labels. It ensures consistent material feeding, prevents breakage or wrinkling, and maintains print registration accuracy.
2. Textile & Nonwoven Processing

   Deployed in spinning, weaving, dyeing, and finishing lines. It regulates tension for fabrics, yarns, and nonwovens, ensuring uniform stretching, preventing distortion, and improving product quality.
3. Paper & Board Manufacturing

   Applied in paper machines, coaters, and slitter‑rewinders. It controls tension during web formation, coating, and winding, optimizing sheet quality and minimizing breaks in high‑speed production.
4. Metal & Plastic Film Processing

   Used in rolling, slitting, and laminating lines for steel, aluminum, and plastic films. It maintains precise tension to prevent material deformation, ensure thickness uniformity, and support high‑speed processing.
5. ACS800 Drive Integration

   Serves as a PROFIBUS DP V1 interface for ABB ACS800 drives in conveyor systems, material handling, pumps, and fans. It enables centralized control, speed regulation, and diagnostics via industrial networks.
6. Wind Turbine Cable Management

   Monitors and controls tension in turbine cable reeling systems. It triggers safety alarms and shutdowns when tension exceeds thresholds, protecting cables and ensuring operational safety.
