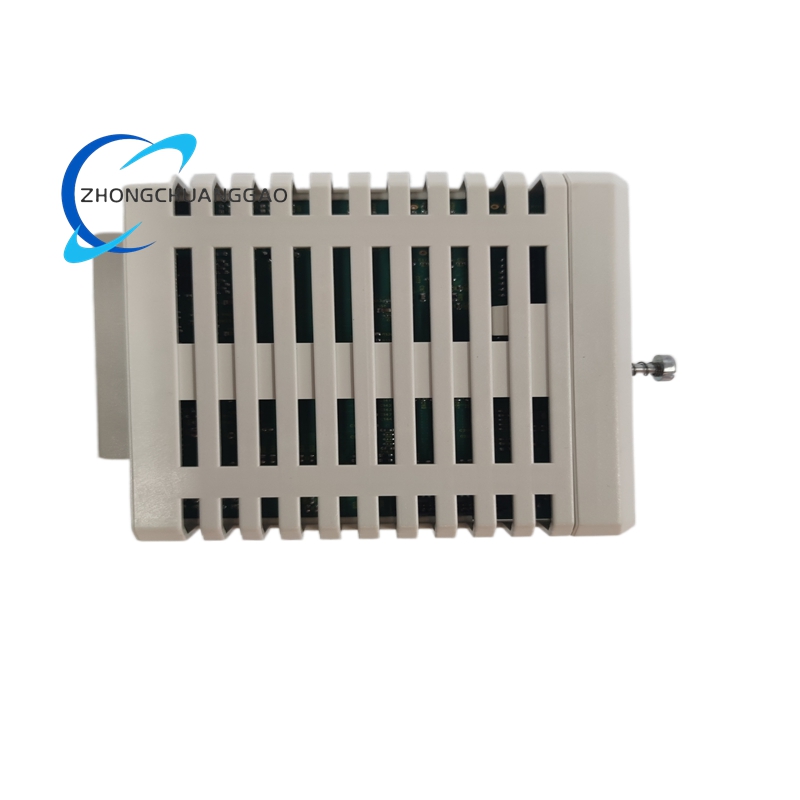

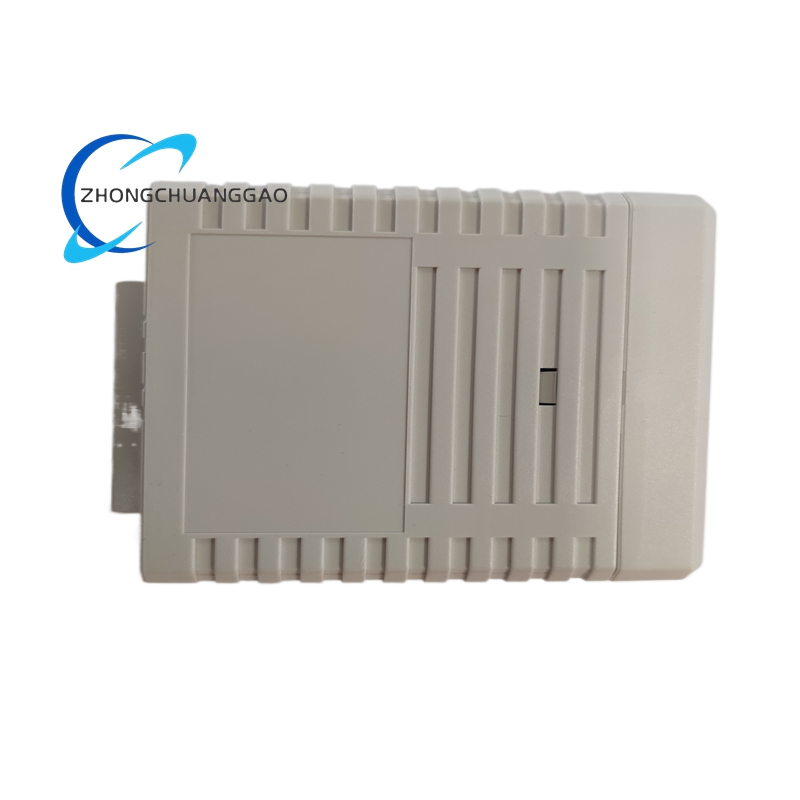

ABB PDP800 PROFIBUS DP V0/V1/V2 Master Module

Description

Technical Specifications

Functional Features

1. Comprehensive Protocol Support

   Implements PROFIBUS DP-V0 for cyclic real-time data exchange, DP-V1 for acyclic parameterization and diagnostics, and DP-V2 for isochronous mode and high-precision time stamping. Enables integration with PROFIBUS PA field devices through a DP/PA coupler, supporting both discrete and process instrumentation.
2. Multi-Level Redundancy Architecture

   Delivers end-to-end redundancy for critical components: PDP800 module redundancy, redundant power supplies, dual PROFIBUS DP communication links, and redundant controller bus connections. All redundant paths operate independently, ensuring uninterrupted communication and zero downtime during component failure.
3. High-Speed & Long-Distance Communication

   Supports data rates up to 12 Mbps for fast, deterministic control. Offers fiber-optic connectivity for extended communication distances up to 15 km, ideal for large-scale plants and remote I/O locations with high electromagnetic interference.
4. Precision Event Sequencing

   Leverages PROFIBUS DP-V2 to provide 1-millisecond accurate time stamping at the source for S800 I/O sequence-of-events (SOE) data. This ensures precise synchronization of process events, critical for root-cause analysis and regulatory compliance.
5. Advanced Diagnostics & Configuration

   Integrates with ABB Symphony Plus engineering tools (S+ Engineering) for complete network configuration, device commissioning, and real-time diagnostics. Provides detailed status monitoring, fault reporting, and device health analytics to simplify maintenance and reduce mean time to repair (MTTR).
6. Broad Device Compatibility

   Seamlessly connects to a wide range of PROFIBUS DP devices, including ABB and third-party smart transmitters, actuators, motor control centers (MCC), variable frequency drives (VFD), flame scanners, and intelligent electronic devices (IED).

Application Scenarios

1. Process Automation in Power Generation

   Deployed in fossil-fuel, nuclear, and renewable power plants for turbine control, boiler monitoring, generator protection, and balance-of-plant systems. Connects critical field instruments and motor controls to the Symphony Plus DCS for reliable, real-time operation.
2. Oil & Gas Production & Refining

   Used in upstream production facilities, midstream pipelines, and downstream refineries. Integrates pressure, temperature, flow transmitters, and control valves via PROFIBUS, supporting distributed control and safety instrumented systems (SIS).
3. Chemical & Pharmaceutical Manufacturing

   Applied in continuous and batch process plants for precise control of reactors, distillation columns, and material handling systems. Ensures compliance with strict regulatory standards through accurate data acquisition and diagnostics.
4. Water & Wastewater Treatment

   Implemented in municipal and industrial water facilities for pump control, flow regulation, level monitoring, and filtration processes. Enables remote monitoring and control of distributed treatment assets.
5. Metals & Mining Operations

   Used in smelting, crushing, and material transport systems. Connects heavy-duty motor controls, conveyor systems, and process sensors, providing robust communication in harsh industrial environments.
6. Large-Scale Manufacturing & MCC Integration

   Integrated into motor control centers (MCC) and assembly lines for centralized control of industrial motors, drives, and production machinery. Facilitates efficient data exchange between the DCS and field-level motor management systems.
