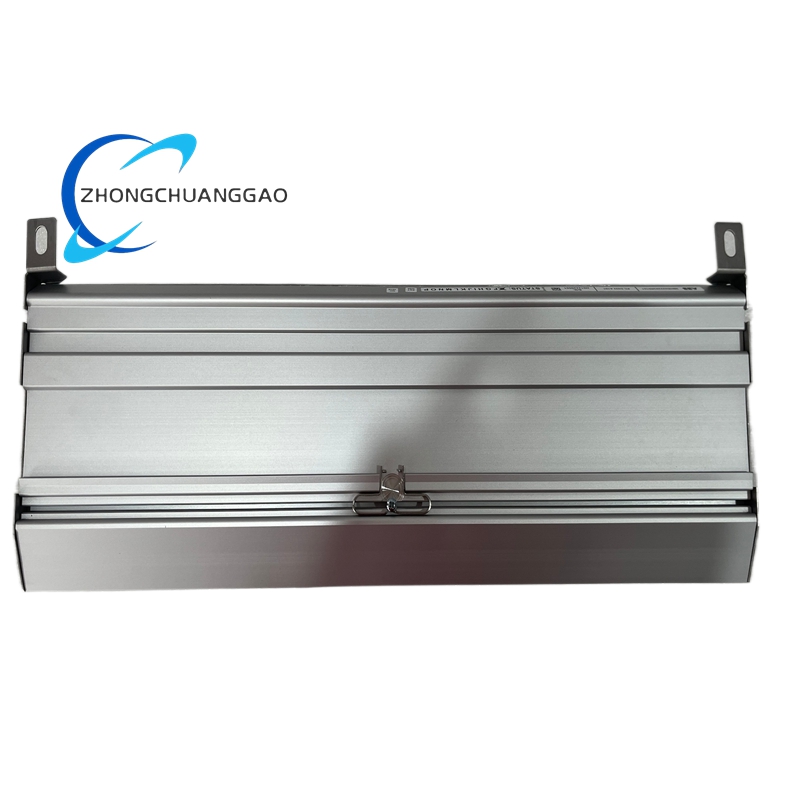

ABB PCD232A101 3BHE022293R0101 Communication Interface Unit

Description

Technical Specifications

• Manufacturer: ABB
• Model Designation: PCD232A101, Part Number: 3BHE022293R0101
• Product Type: Communication Interface Unit / Communications I/O Module
• Physical Dimensions: 8.8 cm × 3.2 cm × 7.8 cm (compact industrial form factor)
• Weight: 0.58 kg
• Country of Origin: Sweden
• Operating Temperature: -20°C to +70°C (industrial operating range)
• Storage Temperature: -40°C to +85°C
• Power Consumption: Less than 2.5 mA (low-power design)
• Communication Protocols Supported:
  • Serial: RS-232, RS-485
  • Industrial Fieldbus: Modbus (RTU), Profibus, DeviceNet
  • Ethernet-based: Ethernet/IP
  • HART Protocol (for analog I/O and field device management)
• Data Transfer Rate: Up to 115.2 kbps (serial communication)
• I/O Configuration: Integrated digital and analog I/O channels; supports HART-enabled analog I/O for field device diagnostics
• Certifications: Compliant with industrial safety and electromagnetic compatibility (EMC) standards for industrial automation

Functional Features

• Multi-Protocol Communication: Supports a comprehensive suite of industrial communication standards, ensuring compatibility with diverse field devices, PLCs, and DCS components.
• HART Protocol Integration: Enables direct HART communication with field instruments, eliminating external HART bridges and supporting remote configuration, calibration, and diagnostics via software tools (e.g., Emerson AMS, Endress+Hauser Field Care).
• High Reliability & Durability: Rugged construction with industrial-grade components, designed to operate continuously in harsh environments with temperature extremes, vibration, and electrical interference.
• Seamless System Integration: Plug-and-play compatibility with ABB control systems (e.g., PEC80) and easy integration with third-party PLCs, inverters, and industrial computers, reducing system integration time and cost.
• Real-Time Data Processing: Microprocessor-based architecture for fast, precise data handling and control execution, supporting high-speed, low-latency communication in critical processes.
• Diagnostic & Management Capabilities: Built-in diagnostics for module health and communication status; supports remote monitoring and asset management to minimize unplanned downtime.
• Compact & Space-Saving Design: Optimized form factor for installation in tight control cabinet spaces, ideal for modern industrial automation systems with space constraints.

Application Scenarios

• Power Generation: Thermal, hydroelectric, and nuclear power plants for control system communication, generator monitoring, and auxiliary equipment control.
• Oil & Gas: Refineries, pipelines, and offshore platforms for process control, safety instrumented systems (SIS), and remote field device communication.
• Chemical & Petrochemical: Continuous process control, reactor monitoring, and hazardous area communication with HART-enabled instruments.
• Manufacturing & Process Industries: Food & beverage, pharmaceuticals, pulp & paper, and cement production for automated line control, I/O signal management, and system integration.
• Water & Wastewater: Treatment plants for pump control, sensor data acquisition, and SCADA system communication.
• Mining & Metals: Extraction and processing facilities for heavy-duty equipment control and industrial network communication.
• Marine & Offshore: Shipboard automation and offshore rig control systems requiring robust, reliable communication in marine environments.
