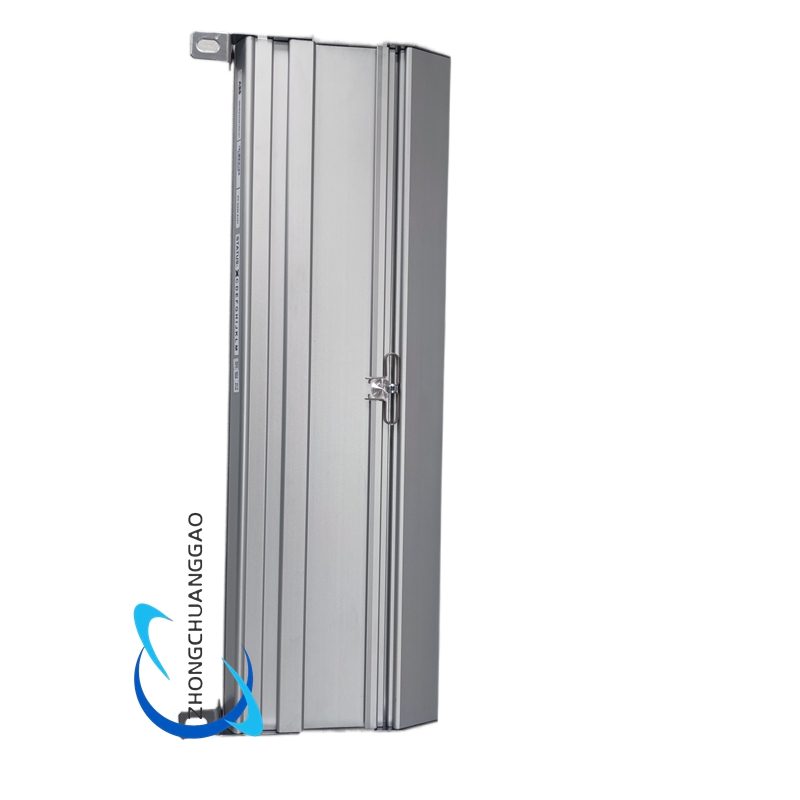

ABB PCD230A101 3BHE022291R0001

Description

Technical Specifications

Core Identification

• Model: PCD230A101
• Part Number: 3BHE022291R0001
• Product Type: High‑Performance Controller Module (PEC80‑CCM)
• Compatible Systems: ABB UNITROL 6000 Excitation Systems, AC 800PEC High‑Speed Control Platforms
• Manufacturer: ABB (Sweden)
• Country of Origin: Sweden
• Net Weight: 1.0 kg
• Dimensions: 145 mm (L) × 72 mm (W) × 48 mm (H)
• Status: Active production for power generation and high‑speed automation applications

Processor & Memory

• Processor: High‑performance PowerPC architecture processor
• Processing Speed: Ultra‑fast cycle times down to 100 μs for high‑speed control loops
• Working Memory (RAM): 16 MB high‑speed volatile memory
• Non‑Volatile Memory (Flash/ROM): 16 MB for program storage and configuration data
• Battery‑Backed SRAM: 512 KB for critical parameter retention during power loss

Communication Interfaces

• Ethernet Ports: 2 × 10/100 Mbps auto‑sensing industrial Ethernet ports (RJ45)
• Fieldbus Support: Integrated Profibus‑DP, Modbus (RTU/TCP), CAN bus master/slave functionality
• Serial Ports: 2 × RS‑232/422/485 ports with automatic flow control (DB9 connectors)
• Optical Communication: High‑speed optical links for fast I/O and system synchronization
• Communication Protocols: TCP/IP, UDP, Modbus RTU/TCP, Profibus‑DP, proprietary ABB control protocols

Electrical Specifications

• Power Supply: 24 V DC nominal (18–30 V DC operating range)
• Power Consumption: Maximum 25 W (typical 15 W)
• Isolation Voltage: 2500 V AC galvanic isolation between field and control circuits
• Input/Output: Configurable digital and analog I/O via expansion modules
• Signal Levels: 24 V DC digital, ±10 V / 4–20 mA analog
• Response Time: <100 μs for critical control signal processing
• Terminal Type: Screw terminal blocks for field connections
• Surge Protection: Built‑in transient voltage suppression for all I/O channels

Mechanical Specifications

• Mounting: DIN rail mounting (35 mm standard) or direct panel mounting
• Housing Material: High‑strength, flame‑retardant industrial plastic (UL 94 V‑0 rated)
• Protection Rating: IP20 (indoor cabinet installation)
• Cooling: Passive convection cooling with optional fan assembly
• Terminal Marking: Permanent, clear labeling for all connection points
• Cable Entry: Multiple side‑entry points for flexible wiring arrangements
• Durability: Designed for 20+ years of continuous operation in industrial environments

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH, non‑condensing
• Vibration Resistance: IEC 60068‑2‑6 compliant (10–2000 Hz, 2 g)
• Shock Resistance: IEC 60068‑2‑27 compliant (30 g, 11 ms)
• EMC Compliance: EN 55011, IEC 61000‑6‑2, IEC 61000‑6‑4
• Chemical Resistance: Resists industrial oils, solvents, and mild corrosives

Certifications & Compliance

• CE Marking
• UL Listed (UL 61010‑1)
• CSA Certified (CSA C22.2 No. 61010‑1)
• IECEx and ATEX certification for hazardous areas
• RoHS Directive compliance
• Grid code compliance for power generation applications
• IEC 61508 functional safety compliance for critical control functions

Key Features

Ultra‑Fast Processing & Control

• Sub‑100 microsecond control cycle times for high‑speed excitation and process control
• Deterministic performance ensures consistent response in critical applications
• High‑performance PowerPC processor handles complex control algorithms
• Parallel processing architecture for simultaneous multi‑loop control
• Optimized for real‑time power system regulation and stability control

Extensive Communication Capabilities

• Dual industrial Ethernet ports for redundant network connectivity
• Multi‑protocol fieldbus support for seamless integration with plant systems
• High‑speed optical communication for fast I/O and synchronization
• Built‑in Modbus TCP/IP for easy SCADA integration
• Proprietary ABB communication protocols for optimized system performance

Robust Memory Architecture

• 16 MB RAM for fast data processing and temporary storage
• 16 MB non‑volatile memory for program and configuration retention
• Battery‑backed SRAM preserves critical parameters during power outages
• No loss of configuration data or setpoints during unexpected shutdowns
• Supports large application programs and extensive data logging

Redundancy & Reliability

• Supports 1:1 controller redundancy for maximum system availability
• Automatic failover between primary and backup controllers
• Redundant communication paths eliminate single points of failure
• Continuous self‑diagnostics for proactive fault detection
• Hot‑swap capability for controller replacement without system shutdown

Advanced Excitation Control Functions

• Precise voltage regulation for synchronous generators (±0.1% accuracy)
• Fast response to grid disturbances for enhanced system stability
• Built‑in power system stabilizer (PSS) functions
• Overexcitation and underexcitation limiters for generator protection
• Compliance with international grid codes for power generation

Flexible I/O Configuration

• Supports a wide range of digital and analog I/O expansion modules
• Isolated I/O channels prevent fault propagation
• Configurable signal conditioning for various field devices
• High‑resolution analog inputs for precise measurement
• Fast digital I/O for high‑speed switching applications

Industrial‑Grade Durability

• Operates reliably across extreme temperature ranges
• High immunity to electrical noise and interference
• Robust construction withstands vibration and shock
• Flame‑retardant housing enhances safety in industrial environments
• Designed for continuous operation with minimal maintenance

Comprehensive Diagnostic Tools

• Real‑time system monitoring and performance analysis
• Detailed fault reporting and alarm generation
• Historical data logging for performance trending
• Remote diagnostic capabilities via Ethernet
• Compliance with IEC 61508 diagnostic coverage requirements

Application Scenarios

Power Generation

• Thermal Power Plants: Excitation control for large steam turbines and generators
• Hydroelectric Facilities: Generator voltage regulation and grid synchronization
• Nuclear Power Plants: Non‑nuclear safety‑related excitation control systems
• Combined Cycle Power Plants: Integrated control for gas and steam turbines
• Renewable Energy: Grid integration control for wind farms and solar power plants
• Cogeneration Plants: Combined heat and power system excitation control

Grid & Substation Automation

• High‑Voltage Substations: Reactive power control and voltage regulation
• Grid Stability Systems: Fast response to grid disturbances and oscillations
• Flexible AC Transmission Systems (FACTS): High‑speed power electronics control
• Distribution Networks: Voltage control and power quality management
• Microgrids: Islanded operation and grid reconnection control

Industrial Power Systems

• Oil & Gas Platforms: Generator excitation for offshore production facilities
• Petrochemical Complexes: Critical power supply control for process plants
• Mining Operations: Large motor control and power system regulation
• Metal Processing: Arc furnace and rolling mill power control
• Cement Production: Kiln and mill drive control systems

High‑Speed Process Automation

• Paper Mills: High‑speed web tension and drive control
• Plastics Manufacturing: Extrusion and injection molding control
• Printing Industry: High‑speed registration and tension control
• Textile Manufacturing: Yarn processing and weaving control
• Packaging Lines: High‑speed motion control and synchronization

Marine & Offshore Applications

• Shipboard Power Systems: Generator excitation for large vessels
• Offshore Drilling Rigs: Dynamic positioning and power management
• FPSO Vessels: Process and power system integration control
• Naval Vessels: Weapon system power and control management
• Port Facilities: Crane and conveyor drive control systems

Data Centers & Critical Infrastructure

• Uninterruptible Power Supply (UPS) Systems: High‑speed inverter control
• Data Center Power Management: Redundant power system control
• Airport Infrastructure: Flight lighting and power system regulation
• Railway Systems: Traction power and substation control
• Telecommunication Facilities: Backup power and voltage regulation
