Product Short Description
Technical Specifications
-

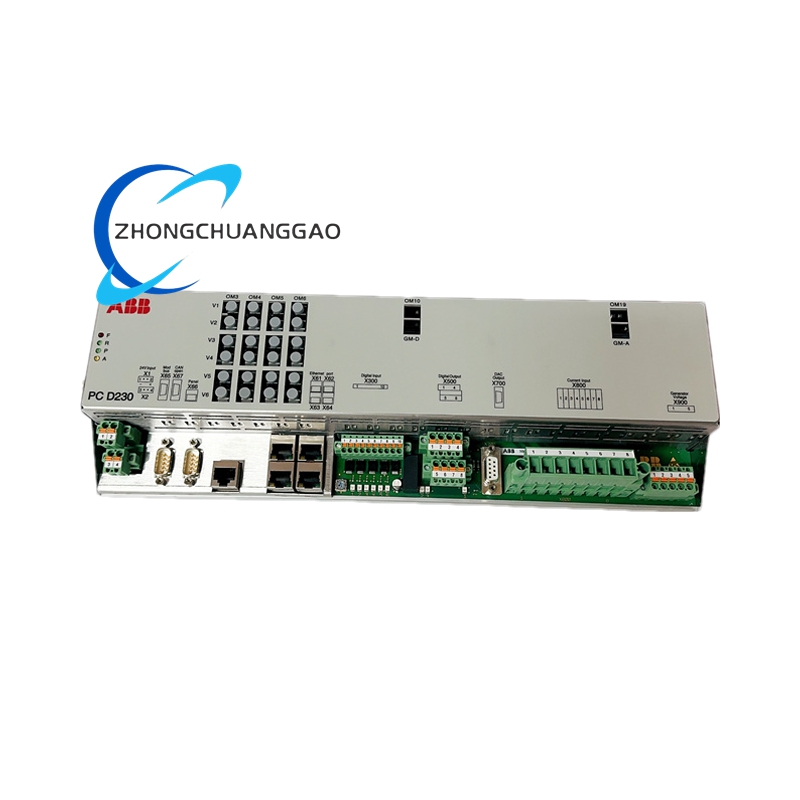

Product Type: Excitation Controller Module
-
Memory: 128 – 256 MB DDR
-
Processor: Celeron-class CPU (650 MHz) with 512 kB L2 cache
-
Control Loop Cycle: microseconds to seconds, selectable
-
Operating Systems: Windows XP, XPE, WINCE 6.0, Linux
-
Communication Ports: 2 × RS-232/RS-485, 2 × USB, 1 × parallel port
Description
-
Network: 10/100 Mbit Ethernet (RJ-45)
-
Power Supply: 24 V DC, 4 W typical, dual-redundant input supported
-
Dimensions: 100 mm × 150 mm × 50 mm
-
Weight: 3.5 kg
-
Operating Temperature: –20 °C to +60 °C (wide-temp –40 °C to +85 °C option)
-
Protection: IP30 aluminium housing, 80 V surge, OVP, UVP, OCP, reverse-polarity
Functional Features
-
Automatic and manual excitation regulation to maintain generator terminal voltage and power factor
-
Built-in 120 GB data logger for fault analysis and trend recording
-
Five IEC 61131-3 programming languages supported (LAD, FBD, ST, IL, SFC)
-
Real-time diagnostics: over-current, over-voltage, under-voltage, fibre-link and power-failure alarms with relay output (48 V/1 A)
-
Hot-swap capability and redundancy switch-over < 100 ms
-
MATLAB/Simulink model-based design import for rapid algorithm deployment
Application Scenarios
-
Power generation: excitation control for steam, gas and hydro generators; grid-stability support
-
Industrial automation: steel, chemical, metallurgy and oil & gas plants requiring high-precision motor control
-
Transportation: electric-vehicle charging, traction substations and signalling systems
-
Aerospace & defence: UAV flight control, rocket launch systems and high-reliability military power units
-
Renewable energy: wind-turbine converter control, solar inverter grid synchronisation
-
Utilities & process plants: DCS/PLC integration, energy metering and SCADA gateways
