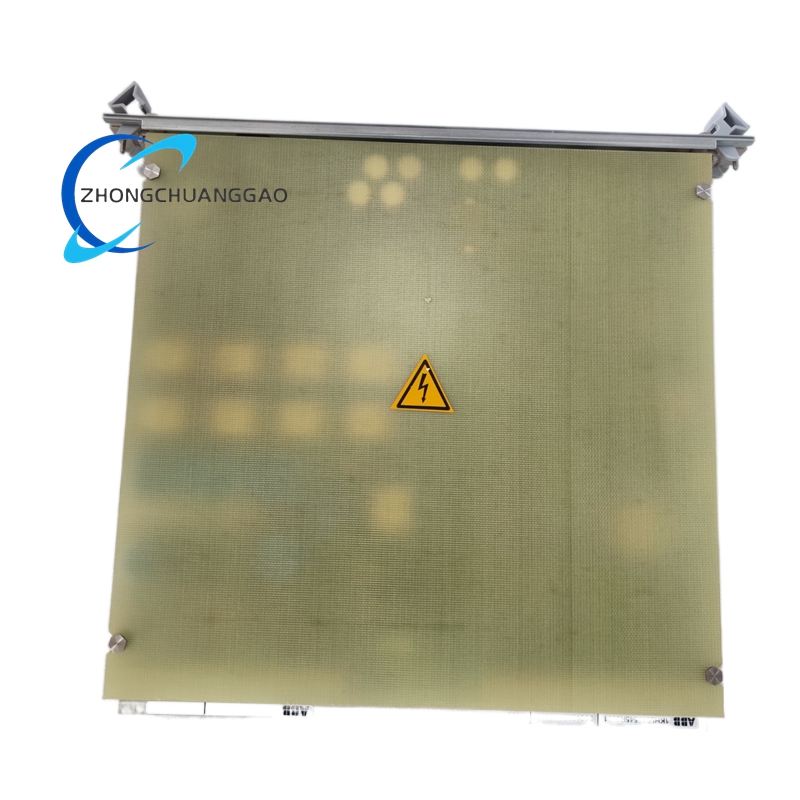

ABB O4LE 1KHL015545R0001 Emergency Shutdown (ESD) System Card / I/O Control Module

Description

Technical Specifications

Core Identification

• Model: O4LE
• Part Number: 1KHL015545R0001
• Product Type: ESD System Card / Digital I/O Control Module
• Manufacturer: ABB (Sweden)
• Country of Origin: Sweden
• Net Weight: Approximately 0.24 kg
• Dimensions: 125 mm (W) × 230 mm (L) × 55 mm (H)
• Status: Legacy product with active safety‑critical support

Electrical Specifications

• Power Supply: 24 V DC nominal (18–30 V DC operating range)
• Power Consumption: Maximum 250 mA (low‑power design)
• I/O Configuration: 16 digital input channels, 8 digital output channels
• Input Signal: 24 V DC dry contact / proximity switch compatible
• Output Type: Solid‑state relay / transistor outputs (24 V DC)
• Isolation: Galvanic isolation (1000 V AC) between field and system circuits
• Response Time: <5 ms for input detection and output actuation
• Terminal Type: Screw / spring terminal blocks (0.5–2.5 mm² wire)
• Surge Protection: Built‑in transient voltage suppression for all channels
• Processor: 20 MHz microcontroller (10 MHz option available)
• Memory: 512 KB RAM, 32 KB ROM

Mechanical Specifications

• Mounting: DIN rail mounting (35 mm standard) or direct panel mounting
• Housing Material: High‑strength, flame‑retardant industrial plastic (UL 94 V‑0)
• Protection Rating: IP20 (indoor cabinet installation)
• Terminal Marking: Permanent, clear channel labeling for safety identification
• Cable Entry: Multiple entry points for flexible safety wiring
• Durability: Terminal connections withstand repeated use without degradation

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH, non‑condensing
• Vibration Resistance: IEC 60068‑2‑6 compliant (10–2000 Hz, 1 g)
• Shock Resistance: IEC 60068‑2‑27 compliant (15 g, 11 ms)
• EMC Compliance: EN 55011, IEC 61000‑6‑2, IEC 61000‑6‑4
• Chemical Resistance: Resists industrial oils, solvents, and mild corrosives

Certifications & Compliance

• Safety Integrity Level (SIL) certified for ESD applications
• CE Marking
• UL Listed (UL 61010‑1)
• CSA Certified (CSA C22.2 No. 61010‑1)
• RoHS Directive compliance
• IEC 61508 functional safety standard compliance

Key Features

Safety‑Critical ESD Functionality

• Dedicated for Emergency Shutdown systems with SIL‑compliant performance
• Provides fast, deterministic response to safety sensor inputs
• Executes pre‑programmed shutdown sequences without external intervention
• Supports redundant configurations for maximum safety availability
• Monitors safety loop integrity continuously

16‑Channel Digital I/O Interface

• 16 isolated digital input channels for safety sensors (emergency stops, pressure switches, flame detectors)
• 8 isolated digital output channels for actuating safety valves, pumps, and shutdown devices
• Individual channel isolation prevents fault propagation between safety circuits
• Supports both sourcing and sinking input/output configurations
• Compatible with standard 24 V DC safety field devices

Ultra‑Fast Response & Reliability

• Sub‑5‑millisecond response time for critical safety actions
• Built‑in fault detection for open/short circuits on all I/O channels
• Galvanic isolation protects the safety system from field‑side electrical faults
• High‑noise immunity ensures reliable operation in electrically harsh environments
• Continuous self‑diagnostics for proactive safety system maintenance

Robust Industrial Design

• Operates reliably across a wide temperature range (-20°C to +60°C)
• Low power consumption minimizes heat generation in safety cabinets
• Compact form factor optimizes space in safety control panels
• Flame‑retardant housing enhances safety in case of electrical faults
• Designed for long‑term operation with minimal maintenance

Seamless System Integration

• Directly compatible with ABB safety control systems and ESD platforms
• Supports MODBUS RTU/RS485 communication for system integration
• Easily integrates with legacy and modern industrial control architectures
• Backward compatible with existing ABB safety I/O systems
• Plug‑and‑play installation reduces safety system commissioning time

Comprehensive Diagnostic Capabilities

• Real‑time channel status monitoring for all inputs and outputs
• Fault indication LEDs for quick identification of safety system issues
• Detailed diagnostic data accessible via communication interface
• Predictive maintenance alerts for potential safety system failures
• Compliance with IEC 61508 diagnostic coverage requirements

Enhanced Safety Protection

• Overcurrent and short‑circuit protection for all output channels
• Reverse polarity protection for power supply connections
• Secure terminal connections prevent accidental disconnections
• Isolated design ensures safety system independence from process control systems
• Meets global safety standards for industrial emergency shutdown applications

Application Scenarios

Oil & Gas Industry

• Offshore Drilling Platforms: ESD for wellhead control, blowout preventers (BOP), and emergency shutdown valves
• FPSO Vessels: Safety shutdown for cargo handling, process systems, and fire/gas detection
• Onshore Refineries: Critical ESD for distillation units, cracking furnaces, and pipeline systems
• Gas Processing Plants: Safety control for compressor stations, gas treatment, and storage facilities
• LNG Terminals: Emergency shutdown for liquefaction processes and loading/unloading systems

Petrochemical & Chemical Industry

• Chemical Processing Plants: ESD for reactor control, toxic material handling, and fire protection
• Polymer Manufacturing: Safety shutdown for polymerization reactors and extrusion lines
• Fertilizer Plants: Critical safety functions for ammonia synthesis and gas processing
• Pharmaceutical Manufacturing: Safety interlocks for high‑pressure reactors and cleanroom systems
• Hazardous Material Storage: Emergency shutdown for storage tank farms and transfer systems

Power Generation

• Thermal Power Plants: ESD for boiler protection, turbine control, and generator safety
• Combined Cycle Power Plants: Safety shutdown for gas turbines and heat recovery systems
• Nuclear Power Plants: Non‑nuclear safety I/O for auxiliary systems and emergency cooling
• Renewable Energy: Safety control for wind turbine arrays and solar inverter stations
• Substation Automation: Emergency shutdown for high‑voltage switchgear and protection systems

Mining & Mineral Processing

• Ore Processing Plants: ESD for conveyor systems, crushing mills, and flotation cells
• Underground Mining: Safety shutdown for ventilation fans, gas detection, and mine door interlocks
• Mineral Refineries: Critical safety functions for leaching, solvent extraction, and smelting
• Coal Handling Facilities: Emergency shutdown for conveyor belts and dust control systems
• Stockpile Management: Safety interlocks for loading equipment and material transfer

Water & Wastewater Treatment

• Municipal Water Treatment: ESD for pump stations, chemical feed systems, and filter control
• Wastewater Treatment: Safety shutdown for aeration basins, sludge handling, and disinfection systems
• Desalination Plants: Critical safety functions for high‑pressure pumps and membrane systems
• Industrial Water Systems: Emergency shutdown for cooling towers and boiler feedwater control
• Pipeline Networks: Safety valves and shutdown for water transmission systems

Marine & Offshore Applications

• Ship Automation Systems: ESD for engine room safety, fire protection, and navigation systems
• Dynamic Positioning Vessels: Safety shutdown for thruster systems and position reference sensors
• Offshore Support Vessels: Emergency shutdown for cargo handling and deck machinery
• Port Facilities: Safety control for loading docks, pipeline connections, and fire systems
• Naval Vessels: Critical safety I/O for weapon systems and damage control

Infrastructure & Industrial Facilities

• Airport Fueling Systems: ESD for fuel storage and aircraft refueling operations
• Port Container Terminals: Safety shutdown for crane systems and automated guided vehicles
• Data Centers: Emergency shutdown for UPS systems and critical power distribution
• Large‑Scale Manufacturing: Safety interlocks for assembly lines and robotic systems
• Chemical Storage Terminals: Emergency shutdown for tank farms and transfer pipelines
