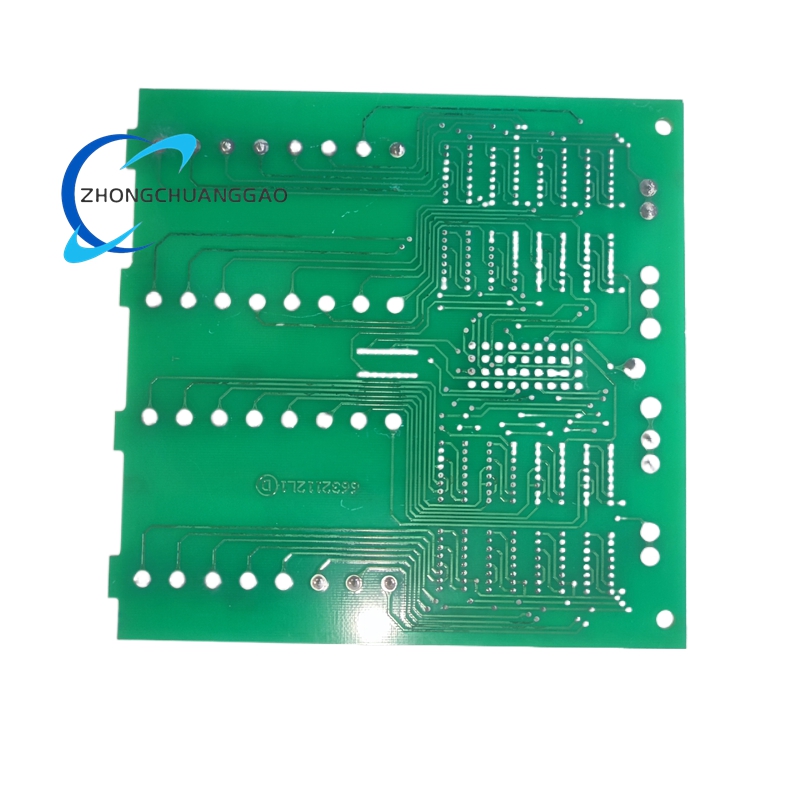

ABB NTDI01 Digital I/O Termination Unit

Description

Technical Specifications

Core I/O Configuration

• I/O Type: 16 digital input channels, 4 analog output channels (hybrid digital/analog termination)
• Digital Input Compatibility: Dry contact (passive) and wet contact (active) 24 VDC signals; supports sinking and sourcing operation
• Digital Input Voltage: 24 VDC nominal; compatible with 5–30 VDC field devices
• Digital Input Current: 3 mA per channel at 24 VDC
• Analog Output Type: 4–20 mA current loop signals
• Analog Output Accuracy: ±0.1% full-scale for precise control signal generation
• Isolation: Full galvanic isolation between field circuits and DCS control electronics (2500 VAC isolation voltage)
• Terminal Rating: 0.25 A at 120 VAC / 125 VDC; 3 A at 24 VDC per terminal

Electrical Specifications

• Power Supply: Passive operation (no external power required); powered via INFI 90 system bus
• Power Consumption: Minimal power dissipation (≤ 2 W)
• EMC Compliance: Conforms to IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (industrial emissions) standards
• Protection Features: Built-in surge protection, over-voltage protection, and short-circuit protection for all I/O channels
• Certifications: CE marked, ABB industrial quality certified, compliant with IEC 61131-2 safety standards

Mechanical Specifications

• Dimensions: 213.36 mm (W) × 233.68 mm (H) × 78.74 mm (D) (8.4″ × 9.2″ × 3.1″)ABB
• Net Weight: Approximately 0.4 kg (0.88 lbs)
• Mounting: Standard DIN rail mounting for control cabinet installation
• Construction: High-strength, flame-retardant plastic housing
• Terminal Type: Screw terminals for secure, vibration-resistant field wiring
• Ingress Protection: IP20, suitable for indoor cabinet installation
• Labeling: Clear, permanent terminal labeling for simplified wiring and maintenance

Environmental Specifications

• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH, non-condensing
• Vibration Resistance: Withstands industrial vibration (10–2000 Hz, 2 g peak)
• Shock Resistance: Withstands 15 g shock (11 ms duration)
• Altitude: Operates reliably at altitudes up to 2000 meters

System Compatibility

• Primary Compatibility: Fully integrated with ABB Symphony Harmony INFI 90 and Net 90 DCS systems
• Compatible Modules: Works seamlessly with DSI, DSO, DSM, SET, SED, ASO, HSS, FCS, NKTU, NKST, and NKSD controller modulesABB
• System Integration: Direct connection to INFI 90 control bus and I/O modules; plug-and-play design
• Wiring Compatibility: Supports standard industrial field wiring practices (single-ended and differential wiring)

Key Functional Features

High-Density I/O Termination

• Combines 16 digital inputs and 4 analog outputs in a single module, optimizing control cabinet space
• Supports both digital monitoring and analog control functions in one termination unit
• Dedicated screw terminals for each I/O channel, ensuring secure and reliable connections
• Vibration-resistant terminal design maintains signal integrity in harsh industrial environments

Advanced Signal Isolation & Protection

• Full galvanic isolation eliminates ground loops and common-mode electrical interference
• Protects sensitive DCS control electronics from voltage transients and surges from field devices
• Built-in surge and short-circuit protection prevents damage to the module and connected equipment
• Ensures clean, accurate signal transmission between field devices and the control system

Flexible Signal Compatibility

• Digital inputs support both dry contact (passive) and wet contact (active) 24 VDC signals
• Accommodates sinking and sourcing digital input configurations for broad field device compatibility
• Analog outputs provide precise 4–20 mA current loop signals for controlling valves, actuators, and transmitters
• Adjustable signal filtering for optimal noise suppression in electrically noisy environments

Seamless DCS Integration

• Native compatibility with ABB Symphony Harmony INFI 90 and Net 90 control systems
• Direct connection to INFI 90 controller modules without external signal converters
• Simplifies system architecture and reduces installation complexity
• Fully configurable via INFI 90 system software for custom I/O setups

Robust Industrial Design

• Rugged construction withstands extreme temperatures, vibration, and shock
• Flame-retardant housing ensures safety in industrial environments
• Compact DIN rail form factor for easy installation in standard control cabinets
• Long service life with minimal maintenance requirements

Easy Installation & Diagnostics

• Clear terminal labeling accelerates wiring, commissioning, and troubleshooting
• LED status indicators for power, signal validity, and fault detection on each channel
• Facilitates quick identification of faulty channels or wiring issues
• Modular design allows for easy replacement and system expansion

Enhanced System Reliability

• Improves overall system stability by ensuring accurate and reliable I/O signal transmission
• Reduces downtime by minimizing signal-related faults and communication errors
• Protects critical DCS investment from electrical damage
• Supports continuous operation in mission-critical industrial processes

Application Scenarios

Power Generation Industry

• Thermal Power Plants: Digital termination for boiler safety interlocks, turbine control switches, and generator monitoring signals; analog outputs for valve position control
• Hydroelectric Plants: Interfaces with water level sensors, flow switches, and turbine speed control signals
• Renewable Energy: Termination for wind turbine pitch control, solar inverter status, and battery management system signals
• Substations: Digital I/O for switchgear control, circuit breaker status, and protective relay signals

Oil & Gas Industry

• Upstream Operations: Digital termination for wellhead pressure switches, emergency shutdown (ESD) signals, and valve position feedback; analog outputs for flow control valves
• Midstream Pipelines: Interfaces with pipeline pressure transmitters, leak detection sensors, and pump control signals
• Refineries: Supports distillation column control, reactor safety interlocks, and flare system monitoring
• LNG Facilities: Termination for cryogenic process switches, storage tank level sensors, and compressor control signals

Chemical & Petrochemical Processing

• Reactor Control: Digital termination for temperature switches, pressure relief valve signals, and safety interlocks; analog outputs for feedstock flow control
• Distillation Systems: Interfaces with level sensors, control valve positioners, and pump start/stop signals
• Hazardous Area Monitoring: Isolated termination for toxic gas detection, fire alarm, and emergency shutdown signals
• Polymer Production: Supports extrusion control, temperature monitoring, and material flow regulation

Water & Wastewater Treatment

• Water Treatment Plants: Digital termination for filter status, pump control, and chemical dosage switches; analog outputs for flow regulation valves
• Wastewater Facilities: Interfaces with aeration control, sludge level sensors, and effluent quality monitoring signals
• Pumping Stations: Termination for pump start/stop, level control, and pressure regulation signals
• Desalination Plants: Supports reverse osmosis control, salinity monitoring, and pressure valve signals

Manufacturing & Process Automation

• Food & Beverage: Digital termination for conveyor control, tank level switches, and packaging line sensors; analog outputs for temperature control
• Pharmaceuticals: Interfaces with cleanroom monitoring, batch process control, and safety interlock signals
• Pulp & Paper: Supports stock consistency control, dryer temperature, and roll tension monitoring
• Metal Processing: Termination for furnace control, rolling mill switches, and material handling signals

Mining & Mineral Processing

• Ore Processing: Digital termination for crusher control, conveyor speed switches, and material level sensors; analog outputs for feeder control
• Smelting Operations: Interfaces with furnace temperature switches, molten metal level sensors, and ventilation control signals
• Material Handling: Supports conveyor control, hopper level, and load monitoring signals
• Tailings Management: Termination for tailings pond level, flow control, and pump status signals

Building & Infrastructure

• HVAC Systems: Digital termination for building automation, fan control, and temperature setpoint switches; analog outputs for damper control
• Fire Protection: Interfaces with sprinkler system control, smoke detection, and safety interlock signals
• Energy Management: Supports power monitoring, voltage regulation, and load control signals
• Transportation Hubs: Termination for airport baggage handling, port crane control, and railway signaling systems
