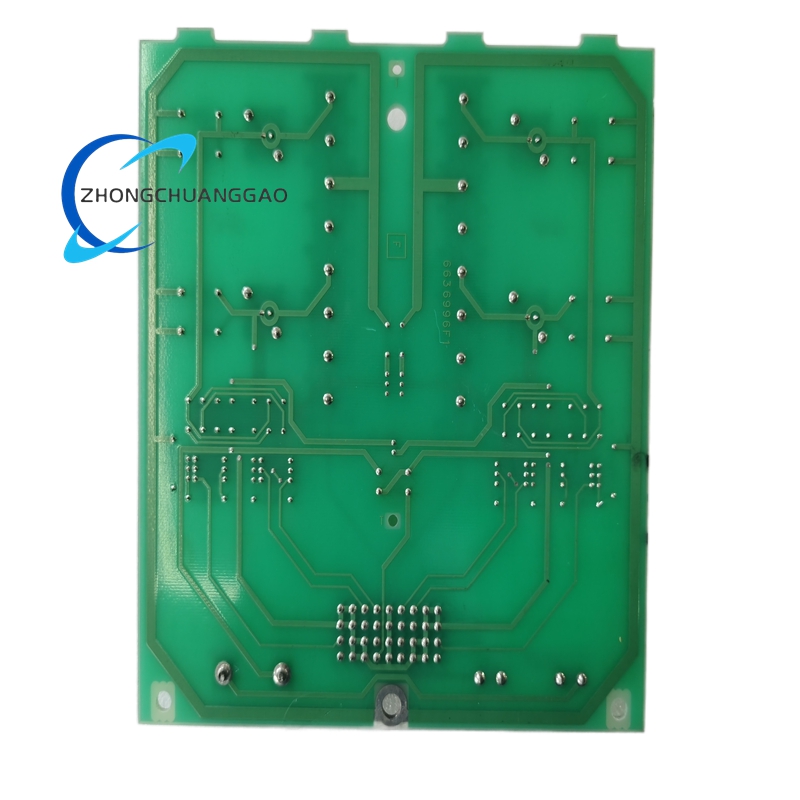

ABB NTCL01 Bailey Communication Link Terminal Unit

Description

Technical Specifications

Core Identification

• Model: NTCL01
• Product Type: Communication Link Terminal Unit
• Manufacturer: ABB (Bailey Controls)
• Compatible Systems: ABB INFI 90 DCS, ABB Symphony Plus DCS, INNIS01 network interface slave modules, INLIM03 loop interface modules
• Part Numbers: 3BSE003832R1, 6636997L1 (assembly part number)
• Country of Origin: USA (varies by production batch), with regional assembly in China (Xiamen) for some markets
• Net Weight: 0.476 kg (gross weight 3 kg for shipping)
• Dimensions (D × W × H): 9.65 cm × 22.10 cm × 23.62 cm

Communication Specifications

• Communication Protocol: INFI-NET® communication protocol
• Function: Terminates INFI-NET communication loops and factory circuits
• Cable Compatibility: Supports both twinaxial and coaxial communication cables
• Configuration: Jumper settings to select cable type (twinaxial/coaxial)
• Interface Role: Provides terminal points for network interface slave modules (INNIS01) and loop interface modules (INLIM03)
• Signal Integrity: Maintains stable signal transmission with built-in termination circuitry

Power Specifications

• Power Supply: 24 V DC
• Power Consumption: 15.8 mA (typical), 19.7 mA (maximum)
• Power Output: 1 A @ 24 V DC (for connected modules)
• Power Protection: Built-in protection against electrical surges in communication lines
• Cooling Requirement: No active cooling needed when installed in ABB Bailey control cabinets and operated within environmental limits

Mechanical Specifications

• Mounting: Designed for installation in ABB Bailey control cabinets, compatible with standard industrial racks
• Housing: Industrial-grade plastic construction with robust terminal connections
• Termination: Secure terminal blocks for communication cable and module connections
• Protection Rating: IP20 (for indoor cabinet installation); some variants offer IP65 protection for harsh environments
• Coating: Protective coating on electronic components to resist dust and minor moisture

Environmental Specifications

• Operating Temperature: -20°C to +60°C (extended range: -25°C to +70°C for industrial use)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–90% RH (±5%) up to 55°C (non-condensing); 5–40% RH (±5%) up to 70°C (non-condensing)
• Air Quality: Designed for non-corrosive industrial environments
• Vibration Resistance: IEC 60068-2-6 compliant (10–2000 Hz, 1 g)
• Shock Resistance: IEC 60068-2-27 compliant (15 g, 11 ms)
• EMC Compliance: EN 55011, EN 61800-3, IEC 61000-6-2/4-2

Certifications & Compliance

• CE Marking
• UL Listed (UL 61010-1)
• CSA Certified (CSA C22.2 No. 61010-1)
• RoHS Directive compliance
• Hazardous Area Certification: Class 1, Div 2, Groups A, B, C, D (T4)
• IEC 61010-1 safety standard compliance
• Factory Warranty: 12 months (brand new units)

Key Features

INFI-NET Loop Termination

• Specifically designed to terminate INFI-NET communication loops and factory circuits
• Provides secure terminal points for INNIS01 and INLIM03 interface modules
• Supports both twinaxial and coaxial cables, selectable via jumper settings
• Ensures proper signal termination to minimize signal reflection and interference
• Maintains high signal integrity for reliable data transmission in large-scale systems

Seamless ABB System Integration

• Fully compatible with ABB INFI 90 and Symphony Plus DCS platforms
• Integrates seamlessly with ABB Bailey PLCs and I/O modules
• Automatically recognized by connected interface modules for plug-and-play operation
• Supports system expansion by enabling additional communication loops
• Maintains backward compatibility with legacy ABB Bailey control systems

Industrial-Grade Reliability

• Constructed with high-quality materials for long-term stable operation
• Withstands harsh industrial conditions, including extreme temperatures and vibration
• Built-in surge protection to safeguard against electrical faults in communication lines
• Resists dust and moisture in non-corrosive environments
• Designed for continuous 24/7 operation with minimal maintenance requirements

Flexible Cable Configuration

• Jumper-selectable cable compatibility (twinaxial/coaxial) for versatile system design
• Accommodates different communication cable types to meet specific installation needs
• Simplifies wiring and reduces the need for additional adapter modules
• Ensures compatibility with existing cable infrastructure in legacy systems
• Supports long-distance communication loops with minimal signal degradation

Compact & Easy Installation

• Space-saving design optimizes cabinet space utilization
• Lightweight construction (0.476 kg) reduces mounting rail load
• Designed for direct installation in ABB Bailey control cabinets
• Clear terminal labeling for easy wiring and troubleshooting
• No active cooling required, reducing installation complexity

Low Power Consumption

• Ultra-low power consumption (15.8 mA typical) minimizes energy usage
• Reduces heat generation in control cabinets, improving overall system reliability
• Compatible with standard 24 V DC industrial power supplies
• Efficient power management ensures stable operation even during voltage fluctuations

Comprehensive Protection

• Built-in surge protection for communication lines to prevent module damage
• Protects connected interface modules from electrical transients and ground loops
• Complies with hazardous area standards for use in Class 1, Div 2 environments
• Ensures safe operation in electrically noisy industrial settings
• Prevents signal loss and data corruption during power surges

Easy Maintenance & Troubleshooting

• Modular design allows for quick replacement without system shutdown
• Clear visual indicators for power and communication status
• Simplified wiring with pluggable terminal blocks
• Compatible with ABB diagnostic tools for remote monitoring
• Reduces downtime with easy access to terminals and configuration jumpers

Application Scenarios

Process Control Systems

• Oil & Gas Refineries: Terminating INFI-NET communication loops in distributed control systems for process monitoring and control
• Chemical Plants: Connecting interface modules to communication networks in corrosive and high-temperature environments
• Petrochemical Facilities: Ensuring reliable data transmission between controllers and field devices in hazardous areas
• Pharmaceutical Manufacturing: Supporting precise communication in cleanroom process control systems
• Food & Beverage Processing: Terminating communication loops for hygienic production line control

Power Generation & Distribution

• Thermal Power Plants: Integrating with ABB INFI 90 DCS to terminate communication loops for turbine and boiler control
• Hydroelectric Facilities: Connecting interface modules in dam and turbine monitoring systems
• Wind Farms: Terminating communication lines for wind turbine control and power management
• Solar Power Plants: Supporting communication between inverter systems and central control platforms
• Substation Automation: Terminating INFI-NET loops for protection relay and monitoring system connectivity

Water & Wastewater Treatment

• Municipal Water Plants: Terminating communication loops for filter, pump, and valve control systems
• Wastewater Treatment Facilities: Connecting interface modules in aeration and sludge processing systems
• Desalination Plants: Supporting large-scale process control communication networks
• Industrial Water Systems: Integrating cooling water and boiler feedwater control systems

Manufacturing & Production

• Automotive Manufacturing: Terminating communication loops in assembly line control systems
• Metal Processing: Connecting interface modules in furnace and rolling mill control systems
• Pulp & Paper Mills: Supporting large-scale distributed control architectures with reliable communication termination
• Cement Production: Terminating INFI-NET loops for kiln and raw material processing control
• Plastics Manufacturing: Integrating extrusion and molding control systems

Mining & Mineral Processing

• Ore Processing Plants: Terminating communication loops for crushing, grinding, and flotation control systems
• Underground Mining: Ensuring reliable communication in harsh underground environments
• Conveyor Systems: Connecting interface modules for long-distance material handling control
• Mineral Processing: Supporting communication between distributed I/O and central controllers

Marine & Offshore Applications

• Offshore Drilling Platforms: Terminating communication loops for drilling and production control systems
• FPSO Vessels: Supporting communication networks on floating production units
• Ship Automation Systems: Connecting navigation and propulsion control modules
• Dynamic Positioning Systems: Ensuring reliable communication for thruster control systems

Infrastructure & Building Automation

• Airport Baggage Handling: Terminating communication loops for conveyor and sorting system control
• Port Container Terminals: Connecting interface modules for crane and automated guided vehicle control
• Data Center Automation: Supporting communication between cooling and power management systems
• Large-Scale HVAC Systems: Terminating loops for building management and climate control systems
