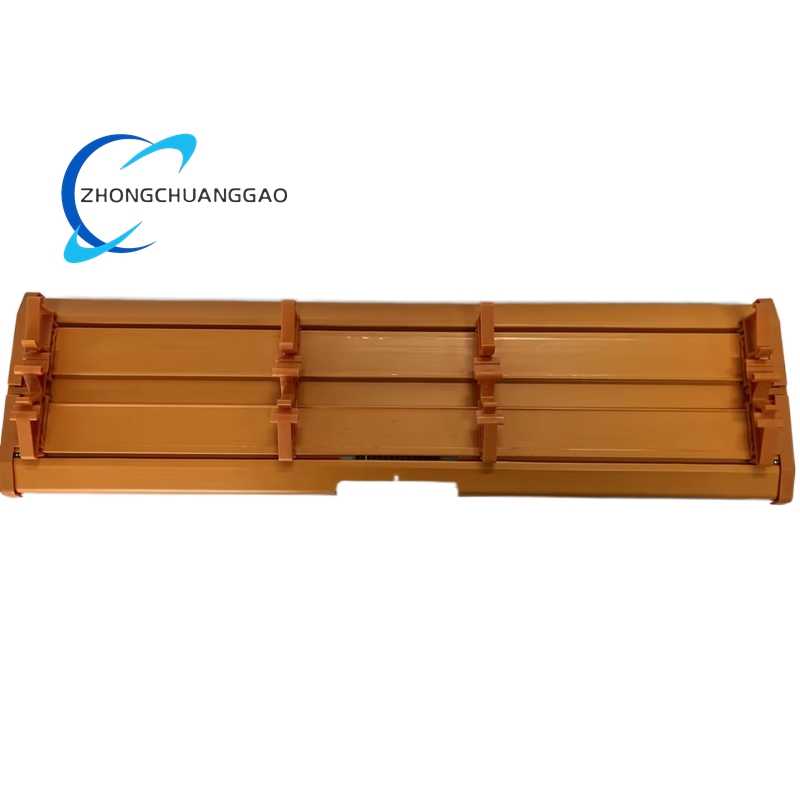

ABB NRAO01 HN800/CW800 Vertical Top Bus Extender

Description

Technical Specifications

Core Identification

• Model: NRAO01
• Product Type: HN800/CW800 Vertical Top Bus Extender
• Compatible Systems: ABB Symphony Plus DCS, SD Series I/O, HN800/CW800 control platforms
• Mounting Position: Vertical top of HN800 device columns
• Country of Origin: Sweden
• Net Weight: Approximately 0.2 kg (198 g)

Bus & Communication

• Bus Type: HN800/CW800 redundant I/O bus
• Bus Speed: 4.0 Mbps data transfer rate
• Bus Extension: Extends HN800 bus up to 100 meters per segment
• Redundancy Support: Fully compatible with redundant HN800 bus configurations
• Isolation: Galvanic isolation between bus segments (1500 V DC test voltage)

Power Specifications

• Power Input: 24 V DC (±10%) external power supply
• Power Output: Distributes 24 V DC to connected I/O and communication modules
• Maximum Output Current: 3.0 A @ 24 V DC
• Power Protection: Overcurrent, short-circuit, and reverse polarity protection
• Power Terminals: Screw terminal block for secure power connections

Mechanical Specifications

• Dimensions (W × H × D): 45 mm × 137 mm × 106 mm
• Mounting: Vertical mounting on HN800 device column rails
• Housing: Industrial-grade plastic with metal mounting brackets
• Coating: Conformal coating for environmental protection
• Protection Rating: IP20 (suitable for indoor cabinet installation)
• Termination: Pluggable terminal blocks for easy wiring and maintenance

Environmental Specifications

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant (10–2000 Hz, 1 g)
• Shock Resistance: IEC 60068-2-27 compliant (15 g, 11 ms)
• EMC Compliance: EN 55011, EN 61800-3, IEC 61000-6-2/4-2

Certifications & Compliance

• CE Marking
• UL Listed (UL 61010-1)
• CSA Certified (CSA C22.2 No. 61010-1)
• RoHS Directive compliance
• IEC 61010-1 safety standard compliance
• ATEX certification for potentially explosive environments (optional)

Key Features

Optimized HN800 Bus Extension

• Specifically engineered for vertical top mounting in HN800 device columns
• Extends HN800 bus reach up to 100 meters for large system layouts
• Supports seamless integration with existing Symphony Plus DCS architecture
• Maintains full compatibility with SD Series I/O and communication modules
• Enables daisy-chaining of multiple bus extenders for extensive system expansion

Centralized Power Distribution

• Provides dedicated 24 V DC power distribution to all connected modules
• Eliminates need for individual power supplies for each I/O module
• Simplifies cabinet wiring and reduces installation complexity
• Offers robust overcurrent and short-circuit protection for connected devices
• Supports redundant power input configurations for enhanced reliability

Redundant Bus Support

• Fully compatible with HN800 redundant bus architecture
• Ensures uninterrupted operation in case of primary bus failure
• Supports automatic failover between primary and redundant bus paths
• Maintains consistent data transmission during bus switching operations
• Enhances overall system availability and fault tolerance

Conformal Coated Design

• Features protective conformal coating on all electronic components
• Resists dust, moisture, and chemical contaminants in industrial environments
• Withstands harsh operating conditions in process industries
• Extends module service life and reduces maintenance requirements
• Ensures reliable performance in high-humidity and corrosive atmospheres

Plug-and-Play Installation

• Automatically detected by the Symphony Plus control system
• Requires minimal configuration for basic operation
• Supports hot-swapping for maintenance without system shutdown
• Integrates seamlessly with ABB Control Builder software
• Provides intuitive LED indicators for status monitoring

Compact & Space-Saving

• Slim profile design maximizes cabinet space utilization
• Enables dense installation of I/O modules in limited cabinet space
• Lightweight construction reduces structural load on mounting rails
• Compatible with standard HN800 column mounting hardware
• Facilitates easy integration into new and existing control cabinets

Enhanced Signal Integrity

• Maintains high signal quality over extended bus distances
• Minimizes signal attenuation and electromagnetic interference
• Features galvanic isolation between bus segments
• Ensures reliable data transmission in electrically noisy environments
• Supports stable operation of high-speed 4.0 Mbps HN800 bus

Comprehensive Diagnostics

• Features LED indicators for power, bus status, and fault conditions
• Supports real-time monitoring of bus performance and power output
• Generates detailed fault codes for rapid troubleshooting
• Enables remote diagnostics via the Symphony Plus control system
• Provides proactive maintenance alerts for potential issues

Application Scenarios

Process Industries

• Oil & Gas Refineries: Extending HN800 bus in large-scale process control systems
• Chemical Plants: Connecting distributed I/O modules in hazardous areas
• Petrochemical Facilities: Ensuring reliable communication in corrosive environments
• Pharmaceutical Manufacturing: Supporting precise process control in cleanroom environments
• Food & Beverage Processing: Extending control bus in hygienic production areas

Power Generation & Distribution

• Thermal Power Plants: Connecting turbine control systems with distributed I/O
• Hydroelectric Facilities: Extending bus for dam and turbine monitoring systems
• Wind Farms: Integrating wind turbine controllers with central control systems
• Solar Power Plants: Connecting inverter systems with power management platforms
• Substation Automation: Extending control bus for protection and monitoring systems

Water & Wastewater Treatment

• Municipal Water Treatment Plants: Extending bus for filter and pump control
• Wastewater Treatment Facilities: Connecting aeration and sludge processing systems
• Desalination Plants: Supporting large-scale process control architectures
• Industrial Water Systems: Integrating cooling water and boiler feedwater systems
• Irrigation Control: Extending bus for agricultural water management systems

Manufacturing & Production

• Automotive Manufacturing: Extending HN800 bus in assembly line control systems
• Metal Processing: Connecting furnace and rolling mill control systems
• Pulp & Paper Mills: Supporting large-scale distributed control architectures
• Cement Production: Extending bus for kiln and raw material processing systems
• Plastics Manufacturing: Integrating extrusion and molding control systems

Mining & Mineral Processing

• Ore Processing Plants: Extending bus for crushing and grinding operations
• Conveyor Systems: Connecting long-distance material handling control systems
• Mineral Processing: Supporting flotation and leaching process control
• Underground Mining: Ensuring reliable communication in harsh underground environments
• Stockpile Management: Integrating loading and unloading control systems

Marine & Offshore Applications

• Offshore Drilling Platforms: Extending bus for drilling and production control
• Ship Automation Systems: Connecting navigation and propulsion control systems
• FPSO Vessels: Supporting large-scale process control on floating production units
• Dynamic Positioning Systems: Integrating thruster control with central systems
• Cargo Handling: Extending bus for crane and winch control systems

Infrastructure & Building Automation

• Airport Baggage Handling: Extending bus for conveyor and sorting systems
• Port Container Terminals: Connecting crane and automated guided vehicle systems
• Data Center Automation: Monitoring and controlling cooling and power systems
• Large-Scale HVAC Systems: Integrating building management with climate control
• Smart City Infrastructure: Extending control bus for utility management systems
