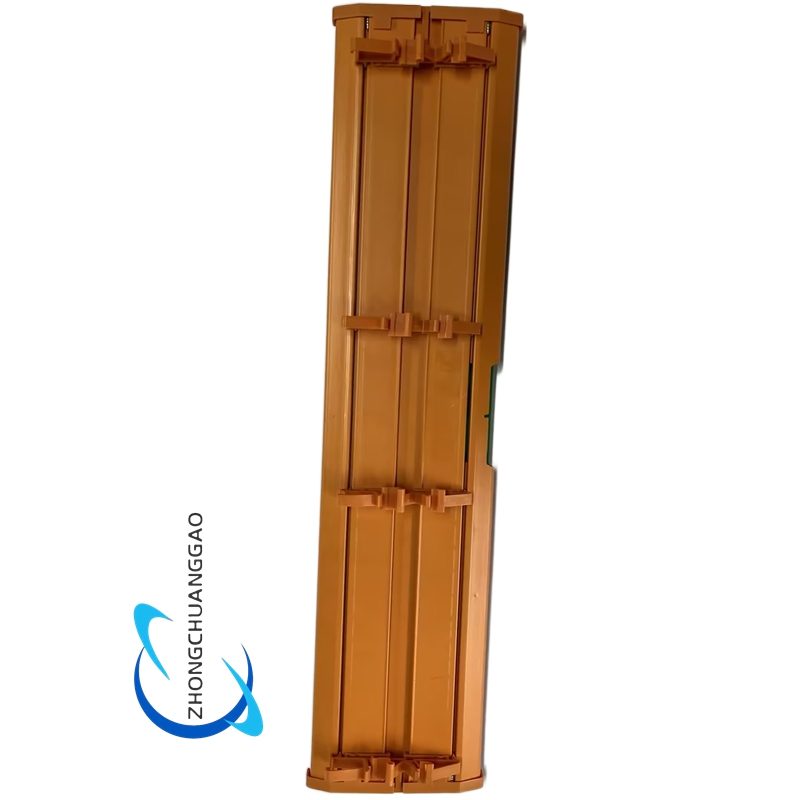

ABB NRAI01 Analog Input Termination Unit

Description

Technical Specifications

Core Input Configuration

• Number of Input Channels: 16 analog input channels
• Supported Signal Types: Single-ended or differential analog inputs
• Input Signal Ranges:
  • Voltage: -10 VDC to +10 VDC
  • Current: 4–20 mA (standard industrial current loop)
• Resolution: 16-bit high-resolution analog-to-digital conversion
• Accuracy: ±0.1% of full-scale measurement range
• Conversion Time: < 2 ms per channel for fast signal processing
• Common-Mode Rejection Ratio (CMRR): 120 dB for excellent noise rejection

Electrical & Isolation

• Isolation Voltage: 2000 VDC galvanic isolation between field inputs and control system circuits
• Power Supply: 24 VDC nominal (derived from DCS system power)
• Power Consumption: Maximum 2 W
• Input Impedance: High impedance for voltage inputs; 250 Ω for current inputs

Mechanical & Environmental

• Mounting: Standard DIN rail mounting for easy installation in control cabinets
• Dimensions: 127 mm (L) × 51 mm (W) × 610 mm (H) (approximate)
• Net Weight: Approximately 0.84–0.9 kg
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH, non-condensing
• Ingress Protection: IP20 (suitable for indoor cabinet installation)
• EMC Compliance: Conforms to IEC 61000-6-2 and IEC 61000-6-4 industrial EMC standards
• Certifications: CE marked, ABB industrial quality certified

Compatibility

• System Compatibility: Fully compatible with ABB Bailey Infi 90 and Net 90 DCS control systems
• Interface: Direct connection to ABB Infi 90 analog input modules (e.g., IMFCS01, IMFBS01)
• Communication: Integrates with Infi 90 proprietary control bus for data transmission

Key Functional Features

Comprehensive Signal Termination

• Provides dedicated screw terminals for secure field wiring of 16 analog input channels
• Supports both single-ended and differential input configurations for maximum flexibility
• Accommodates standard industrial voltage and current loop signals from field sensors
• Simplifies field wiring and reduces installation time in control panel assemblies

Advanced Signal Conditioning

• Built-in signal filtering to eliminate electrical noise and interference from industrial environments
• Precision signal scaling and level adjustment to match DCS input module requirements
• High common-mode rejection to minimize errors from ground potential differences
• Stable signal conversion with low drift for long-term measurement accuracy

Superior Electrical Isolation

• 2000 VDC galvanic isolation protects the DCS control system from field-side electrical faults
• Prevents ground loops and transient voltage surges from damaging sensitive control electronics
• Isolates field equipment from control system failures, enhancing overall system safety
• Ensures signal integrity in electrically noisy industrial environments with high EMI/RFI

High-Performance Data Acquisition

• 16-bit resolution delivers precise measurement of small signal variations
• Fast conversion time enables real-time process monitoring and control
• High accuracy ensures reliable process data for critical control decisions
• Individual channel status monitoring for quick diagnostics and troubleshooting

Robust Industrial Design

• Rugged construction withstands vibration, shock, and temperature fluctuations in industrial settings
• Wide operating temperature range for deployment in extreme environmental conditions
• Compact DIN rail form factor optimizes control cabinet space utilization
• Long service life with minimal maintenance requirements

Easy Installation & Diagnostics

• Plug-and-play design for straightforward integration into Infi 90 DCS configurations
• Clear terminal labeling for simplified wiring and maintenance
• LED status indicators for power and channel signal validity
• Comprehensive fault detection for quick identification of wiring or signal issues

Application Scenarios

Power Generation

• Thermal Power Plants: Monitors boiler pressure, steam flow, temperature, and generator output
• Hydroelectric Plants: Interfaces with water level sensors, flow meters, and turbine vibration monitors
• Nuclear Power Facilities: Provides isolated analog input for reactor coolant temperature and pressure
• Renewable Energy: Connects solar irradiance sensors, wind speed monitors, and battery management systems

Oil & Gas Industry

• Upstream Operations: Monitors wellhead pressure, temperature, and flow rates in oil and gas extraction
• Midstream Pipelines: Interfaces with pipeline pressure transmitters and flow meters for leak detection
• Refineries: Controls and monitors distillation column temperatures, pressures, and liquid levels
• LNG Facilities: Provides analog input for cryogenic temperature and storage tank level sensors

Chemical & Petrochemical Processing

• Reactor Control: Monitors reactor temperature, pressure, and feedstock flow rates
• Distillation Systems: Interfaces with level sensors, temperature transmitters, and control valves
• Hazardous Area Monitoring: Provides isolated signals for toxic gas concentration and pressure sensors
• Polymer Production: Controls and monitors extrusion temperatures, pressure, and material flow

Water & Wastewater Treatment

• Water Treatment Plants: Monitors water flow, pressure, pH, turbidity, and dissolved oxygen
• Wastewater Facilities: Interfaces with influent/effluent flow meters and chemical dosage sensors
• Pumping Stations: Controls pump speed based on water level and pressure signals
• Desalination Plants: Monitors salinity, temperature, and pressure in reverse osmosis systems

Manufacturing & Process Automation

• Food & Beverage: Monitors pasteurization temperatures, tank levels, and packaging line pressures
• Pharmaceuticals: Controls and monitors cleanroom temperature, humidity, and pressure differentials
• Pulp & Paper: Interfaces with stock consistency sensors, dryer temperatures, and roll tension monitors
• Metal Processing: Monitors furnace temperatures, rolling mill pressures, and material thickness

Mining & Mineral Processing

• Ore Processing: Controls and monitors crusher vibration, conveyor speed, and material flow
• Smelting Operations: Interfaces with furnace temperature sensors and molten metal level indicators
• Material Handling: Monitors conveyor load, belt speed, and hopper level sensors
• Tailings Management: Provides analog input for tailings pond level and flow monitors

Building & Infrastructure

• HVAC Systems: Controls and monitors building temperature, humidity, and air flow rates
• Fire Protection: Interfaces with pressure sensors in sprinkler systems and smoke detectors
• Energy Management: Monitors power consumption, voltage, and current in large facilities
• Transportation Hubs: Controls and monitors airport baggage handling and port crane systems
