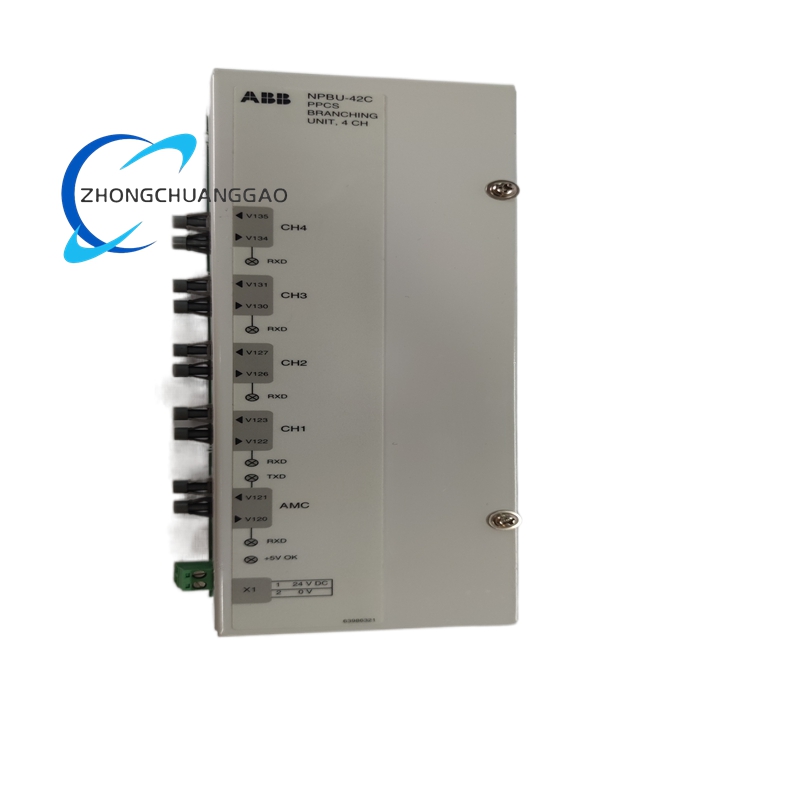

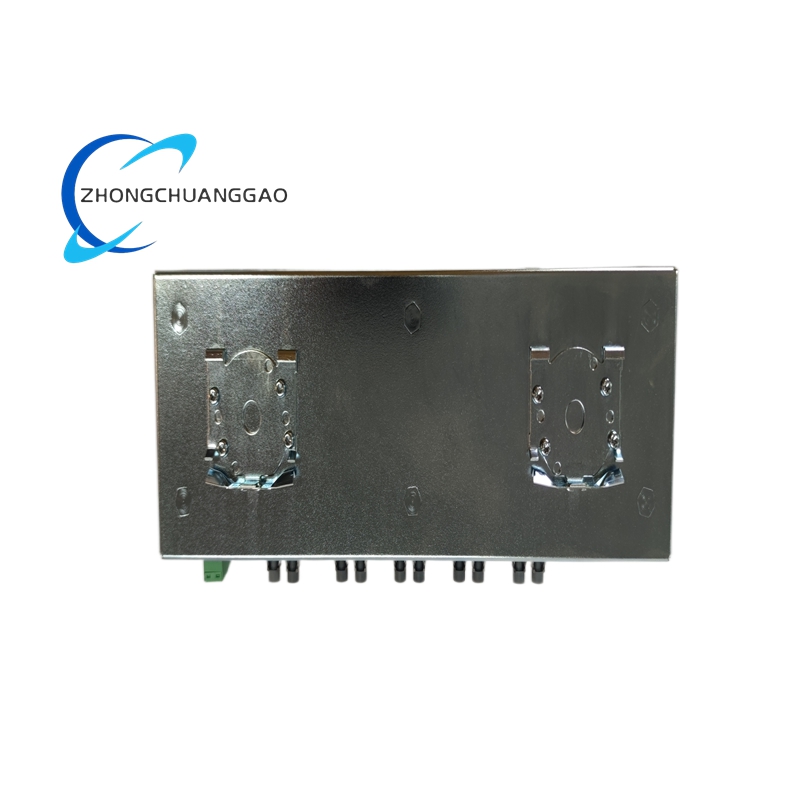

ABB NPBU-42C 64011821 PPCS Branching Unit

Description

Technical Specifications

Core Identification

• Model: NPBU-42C
• Part Number: 64011821
• Manufacturer: ABB
• Product Type: PPCS Branching Unit
• Compatible Platforms: ABB ACS600 series drives, PPCS control systems
• Country of Origin: Finland
• Net Weight: 0.97 kg

Channel Configuration

• Total Channels: 4 dedicated communication channels
• Channel Type: Bidirectional signal transmission
• Input/Output Configuration: 4 input channels, 4 output channels
• Signal Compatibility: Digital and analog field signals
• Isolation: Galvanic isolation between channels and system bus
• Isolation Voltage: 2,500 V DC

Electrical Specifications

• Power Supply: 24 V DC (±10%)
• Power Consumption: ≤ 3 W
• Input Current: ≤ 125 mA at 24 V DC
• Overvoltage Protection: Integrated surge protection for all channels
• Reverse Polarity Protection: Built-in protection circuitry
• Signal Voltage Range: 0–10 V DC, 4–20 mA

Mechanical Specifications

• Dimensions (D × H × W): 41 mm × 264 mm × 94 mm
• Mounting: Standard DIN rail mounting (35 mm)
• Termination: Screw terminals for secure field wiring
• Housing Material: High-grade industrial plastic with metal reinforcement
• Protection Rating: IP20 (indoor cabinet installation)
• Module Design: Compact, plug-in modular construction

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant (10–2000 Hz, 1 g)
• Shock Resistance: IEC 60068-2-27 compliant (15 g, 11 ms)
• EMC Compliance: EN 55011, EN 61800-3

Certifications & Compliance

• CE Marking
• UL Listed (UL 61010-1)
• CSA Certified (CSA C22.2 No. 61010-1)
• RoHS Directive compliance
• IEC 61010-1 safety standard compliance
• ATEX certification for potentially explosive environments (optional)

Key Features

Multi-Channel Signal Distribution

• Provides 4 independent bidirectional communication channels
• Enables simultaneous connection of multiple field devices to a single controller
• Supports both digital and analog signal types for versatile application
• Offers galvanic isolation between channels to prevent signal interference
• Ensures reliable signal transmission across extended distances

Seamless PPCS Integration

• Designed exclusively for ABB PPCS control system compatibility
• Plug-and-play operation with ABB ACS600 series drives
• Automatically detected and configured by the host control system
• Maintains full compatibility with existing PPCS system architecture
• Supports hot-swapping for maintenance without system shutdown

Robust Industrial Design

• Engineered for continuous operation in harsh industrial environments
• Withstands extreme temperature fluctuations and mechanical stress
• Features comprehensive EMC protection against electrical interference
• Constructed with high-quality components for extended service life
• Resists dust, moisture, and chemical contaminants in industrial settings

Enhanced Signal Integrity

• Minimizes signal attenuation and distortion during transmission
• Provides built-in surge protection for all input/output channels
• Maintains stable signal quality even in electrically noisy environments
• Offers precise signal conditioning for accurate data acquisition
• Ensures consistent performance across all connected channels

Flexible Installation & Scalability

• Supports standard DIN rail mounting for easy cabinet integration
• Enables compact side-by-side installation with minimal spacing
• Facilitates system expansion by adding multiple NPBU-42C units
• Allows flexible network topology design to meet specific application needs
• Simplifies wiring with clearly labeled terminal connections

Advanced Diagnostic Capabilities

• Features LED indicators for power, channel status, and fault conditions
• Supports real-time monitoring of signal quality and channel activity
• Generates detailed fault codes for rapid troubleshooting
• Enables remote diagnostics via the PPCS control system
• Provides proactive maintenance alerts for potential issues

High Reliability & Safety

• Built with redundant critical components for maximum uptime
• Complies with strict international safety standards
• Offers overvoltage and short-circuit protection for all channels
• Ensures safe operation in hazardous industrial environments (with ATEX option)
• Provides long-term reliability with minimal maintenance requirements

Application Scenarios

Industrial Drive Systems

• ACS600 Drive Installations: Signal distribution for ABB ACS600 variable frequency drives
• Motor Control Centers: Connecting multiple motor drives to a central controller
• Conveyor Systems: Controlling speed and monitoring multiple conveyor lines
• Pump Control Systems: Managing pump operations in water treatment facilities
• Fan Control: Regulating fan speed in HVAC and industrial ventilation systems

Process Automation

• Chemical Processing Plants: Signal distribution for process monitoring and control
• Oil & Gas Refineries: Connecting field instruments to central control systems
• Power Generation Facilities: Monitoring and controlling turbine operations
• Water & Wastewater Treatment: Managing sensor data and actuator control
• Food & Beverage Processing: Ensuring precise control in production lines

Manufacturing Automation

• Automated Assembly Lines: Coordinating multiple production stations
• Packaging Machinery: Controlling packaging equipment and material handling
• Material Handling Systems: Managing conveyor belts and sorting systems
• Machine Tools: Connecting CNC machines to central control systems
• Robotics Integration: Signal distribution for industrial robot controllers

Power Distribution & Energy Management

• Substation Automation: Monitoring and control of power distribution equipment
• Renewable Energy Systems: Connecting solar inverters and wind turbine controllers
• Energy Storage Systems: Managing battery charging and discharging operations
• Smart Grid Applications: Facilitating communication between grid components
• Industrial Power Management: Controlling power distribution in large facilities

Building Automation

• HVAC Control Systems: Managing heating, ventilation, and air conditioning
• Fire Safety Systems: Connecting fire detection and suppression equipment
• Lighting Control: Regulating industrial and commercial lighting systems
• Security Systems: Integrating access control and surveillance equipment
• Elevator Control: Coordinating multiple elevator systems in large buildings

Marine & Offshore Applications

• Ship Automation Systems: Controlling navigation and propulsion systems
• Offshore Platforms: Monitoring and controlling drilling operations
• Dynamic Positioning Systems: Managing thruster control for vessel positioning
• Cargo Handling Equipment: Controlling cranes and winch operations
• Ballast Water Management: Regulating pump and valve operations

Mining & Heavy Industry

• Mining Equipment Control: Managing conveyor systems and processing equipment
• Material Processing: Controlling crushing, grinding, and sorting operations
• Heavy Machinery: Connecting industrial equipment to central control systems
• Conveyor Systems: Monitoring and controlling long-distance material transport
• Safety Systems: Integrating emergency stop and safety monitoring circuits
