Product Short Description
Product Introduction
Description
Technical Specifications
| Parameter | Detail |
|---|---|

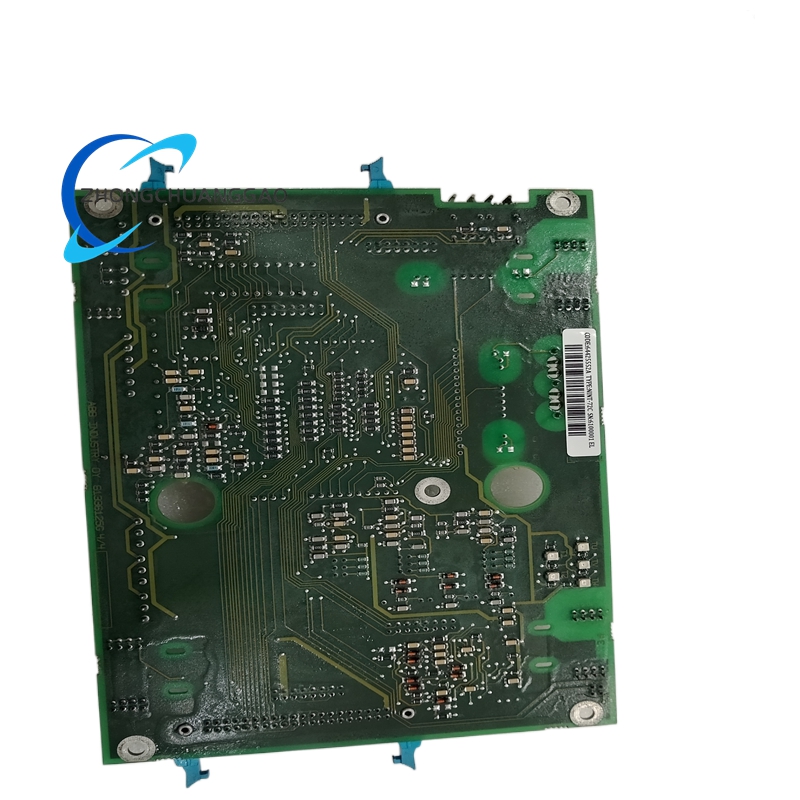

| Product Type | Main Circuit Interface Board / Gate Drive Board |
| Compatible System | ABB ACS600 Series Variable Frequency Drives |
| Board Function | Signal conversion, IGBT gate driving, system interfacing |
| Input Voltage | 12 V DC (internal logic) |
| Drive Output | IGBT gate control signals (galvanically isolated) |
| Isolation Voltage | 4000 V RMS (channel-to-channel, power-to-logic) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +80 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Dimensions | 220 mm (W) × 160 mm (H) × 60 mm (D) |
| Weight | Approx. 2.0 kg |
| Mounting | Rack mounting / Chassis mounting inside drive cabinet |
| Cooling Method | Natural convection or forced air cooling |
| Control Interface | Digital optical fiber links (for noise-immune control signals) |
| Feedback Interface | Status monitoring, fault detection, and diagnostic signals |
| Protection Features | Overcurrent, overvoltage, overtemperature, IGBT fault detection |
| Certifications | CE, UL, CSA, RoHS compliant |
Key Functional Features
- Precision IGBT Gate Control
Converts digital control signals into optimized, high-resolution gate drive pulses for the ACS600 drive’s IGBT power modules. It ensures precise timing and voltage levels for IGBT switching, minimizing power losses, reducing electromagnetic interference (EMI), and maximizing the efficiency and lifespan of the power semiconductors.
- High-Speed Signal Processing
Integrates a high-performance processing circuit capable of handling real-time control algorithms. It supports fast signal conversion and transmission, enabling the drive to execute rapid dynamic responses to load changes, ensuring stable motor speed and torque regulation even under fluctuating conditions.
- Full Galvanic Isolation
Implements complete galvanic isolation (up to 4000 V RMS) between the low-voltage control logic and the high-voltage power stage. This eliminates ground loops, blocks high-voltage transients, and protects the main control system from damage, while ensuring safe and reliable operation in high-noise industrial environments.
- Optical Fiber Communication
Features high-speed optical fiber interfaces for receiving control commands and transmitting status feedback. This technology provides complete electrical isolation, superior noise immunity, and high bandwidth, ensuring error-free data transmission over long distances within the drive system, even in environments with strong electrical interference.
- Comprehensive Fault Detection & Protection
Embeds advanced diagnostic circuits for real-time monitoring of critical parameters including IGBT overcurrent, drive overvoltage, overtemperature, and short-circuit faults. Upon detecting an anomaly, the board immediately initiates a protective shutdown, blocking gate signals to prevent catastrophic damage to the drive and connected motor.
- Robust Industrial Design
Constructed with high-grade, flame-retardant PCB material and industrial-grade components. It features a conformal coating to resist dust, humidity, and corrosive vapors. The board is built to withstand high levels of vibration and mechanical shock, common in heavy industrial settings.
- Plug-and-Play Integration
Designed as a direct replacement module for the ACS600 series. It uses standardized connectors and pin-outs, allowing for straightforward installation and hot-swapping. This minimizes system downtime during maintenance, repair, or replacement procedures.
- Status Monitoring & Diagnostics
Equipped with multi-color LED indicators that provide real-time visual feedback on operational status, communication health, and specific fault codes. This facilitates quick on-site troubleshooting and reduces mean time to repair (MTTR).
Application Scenarios
- Metallurgy & Steel Processing
Deployed in ABB ACS600 drives for controlling rolling mills, continuous casters, extruders, and furnace fans. Delivers high-power, precise control in high-temperature, high-dust, and high-vibration environments, ensuring stable operation for heavy-duty metal forming processes.
- Mining & Mineral Extraction
Used in drives for large conveyor belts, ore crushers, grinding mills, and hoists. Provides reliable IGBT control for high-torque motor starting and speed regulation, operating effectively in remote, harsh mining locations with extreme temperatures and heavy electrical loads.
- Oil & Gas Industry
Integrated into ACS600 VFDs controlling pumps, compressors, and injection systems for drilling, pipeline transport, and refining. Ensures stable, efficient motor control in hazardous areas and environments with high levels of electrical noise.
- Power Generation
Manages auxiliary systems in power plants, including boiler feed pumps, induced draft fans, and turbine starter motors. Delivers consistent performance for continuous, mission-critical operations in thermal, hydro, and combined-cycle power facilities.
- Cement & Building Materials
Operates rotary kilns, vertical mills, and conveyor systems in cement production. Handles the high starting torque and continuous load demands of heavy cement manufacturing machinery.
- Water & Wastewater Treatment
Drives large centrifugal pumps, blowers, and aeration systems. Provides energy-efficient variable speed control for water distribution networks and wastewater processing plants.
- Marine & Offshore Applications
Used in propulsion systems, thrusters, and large pump motors on vessels and offshore rigs. Resists salt spray, high humidity, and vibration, ensuring stable power conversion for marine motor control.
- Paper & Pulp Manufacturing
Controls motors for pulp digesters, paper machines, and winders. Provides precise speed and tension regulation to maintain product quality and maximize production efficiency.
