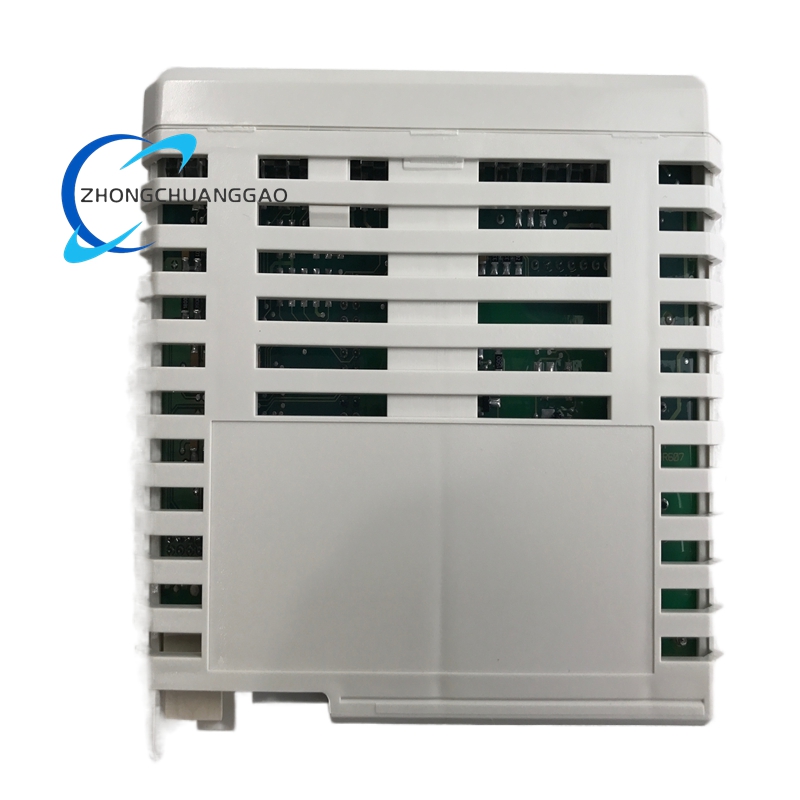

ABB NBIO-21C Basic I/O Module

Description

General Specifications

• Product Type: Mixed Digital/Analog Basic I/O Module
• Product Series: ABB S800 I/O
• Compatible Control Systems: ABB AC 800M, 800xA DCS, and compatible ABB controllers
• Form Factor: Compact, modular design for DIN-rail mounting
• Weight: Approximately 0.5 kg
• Dimensions (W x H x D): 100 mm x 140 mm x 70 mm
• Protection Class: IP20 (for indoor cabinet installation)
• Certifications: CE, UL, CSA, RoHS, IEC 61131-2
• Isolation: Optical galvanic isolation per channel

Electrical Specifications

• Power Supply:
  • Nominal Input Voltage: 24 V DC
  • Voltage Range: 18 – 30 V DC
  • Power Consumption: Maximum 5 W
• Digital Input Channels:
  • Quantity: 8 channels
  • Signal Type: Dry contact, 24 V DC logic
  • Input Current: Approx. 5 mA per channel
• Digital Output Channels:
  • Quantity: 8 channels
  • Output Type: Transistor (sourcing)
  • Output Voltage: 24 V DC (nominal)
  • Output Current: Max 0.5 A per channel
• Analog Input Channels:
  • Quantity: 4 channels
  • Signal Ranges: 0 – 10 V DC, 4 – 20 mA
  • Resolution: 16-bit
  • Accuracy: ±0.1% of full scale
• Analog Output Channels:
  • Quantity: 2 channels
  • Signal Ranges: 0 – 10 V DC, 4 – 20 mA
  • Resolution: 16-bit
  • Accuracy: ±0.2% of full scale
• Communication Interface:
  • Interface: Proprietary parallel backplane bus for S800 I/O system
  • Communication Speed: High-speed, deterministic data transfer

Mechanical & Environmental Specifications

• Mounting: Standard EN 50022 NS 35 DIN-rail
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% – 95% RH (non-condensing)
• Shock Resistance: 15G (11 ms, IEC 60068-2-27)
• Vibration Resistance: 1G (10 – 150 Hz, IEC 60068-2-6)
• Cooling Method: Natural convection (passive cooling)
• EMC Compliance: IEC 61000-4 series (industrial electromagnetic compatibility standards)

Diagnostic Features

• LED Indicators: Module status, power, communication, and per-channel I/O status LEDs
• Fault Detection: Real-time monitoring for short-circuits, overloads, open circuits, and communication errors
• Diagnostic Data: Full diagnostic feedback to the host controller for predictive maintenance
• Hot-Swappable: Modules can be replaced under power without shutting down the entire system

Functional Features

1. Mixed-Signal I/O Integration

   Combines 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs in one compact unit. This integrated design reduces cabinet space requirements and simplifies system architecture for mixed-signal applications.

2. High-Precision Signal Handling

   Features 16-bit analog-to-digital and digital-to-analog converters, delivering exceptional measurement and control accuracy of ±0.1% for inputs and ±0.2% for outputs. It supports standard industrial analog signals (0-10V, 4-20mA) for direct compatibility with field sensors and actuators.

3. Full Galvanic Isolation

   Provides optical galvanic isolation on all I/O channels, protecting the control system from field-side voltage transients, ground loops, and electrical noise. This ensures maximum signal integrity and system safety in electrically harsh environments.

4. Robust Industrial Reliability

   Constructed with high-grade industrial components to operate continuously in extreme temperatures, high humidity, and high-vibration conditions. It boasts a long mean time between failures (MTBF) and is built for 24/7 industrial operation.

5. Comprehensive Diagnostics

   Equipped with on-board self-diagnostics and LED indicators for instant visual status monitoring. All fault data is transmitted to the host system, enabling rapid troubleshooting and minimizing unplanned downtime.

6. Easy Installation & Maintenance

   Designed for tool-free DIN-rail mounting with secure spring-loaded terminals. The hot-swappable design allows for module replacement while the system is live, ensuring uninterrupted production during maintenance or upgrades.

7. Seamless System Integration

   Native plug-and-play compatibility with ABB’s AC 800M controller and 800xA DCS. It integrates seamlessly with ABB’s system software and engineering tools, supporting easy configuration, parameterization, and system expansion.

8. Flexible & Scalable Design

   As part of the S800 I/O family, it supports a fully scalable architecture. Multiple NBIO-21C modules and other S800 I/O modules can be combined to create custom I/O configurations that precisely match application requirements.

Application Scenarios

• Power Generation & Distribution

  Deployed in thermal, hydro, and wind power plants for monitoring generator parameters, controlling switchgear, and managing auxiliary systems like pumps and fans. It ensures stable and reliable operation of power generation and distribution equipment.

• Oil & Gas Industry

  Used in upstream drilling facilities, midstream pipeline stations, and downstream refineries. It provides critical I/O interfacing for emergency shutdown (ESD) systems, compressor control, valve actuation, and process parameter monitoring.

• Chemical & Pharmaceutical Manufacturing

  Manages digital and analog signals for batch process control, including monitoring pressure, temperature, flow, and level. It supports precise control of reactors, mixers, and packaging lines while complying with strict industry safety standards.

• Water & Wastewater Treatment

  Integrated into control systems for water treatment plants, managing pump operations, filter processes, flow metering, and valve control. It ensures efficient and automated operation of municipal and industrial water networks.

• Discrete Manufacturing & Assembly

  Applied in automotive assembly lines, packaging machinery, and material handling systems. It controls robotic arms, conveyor belts, and inspection stations, enabling real-time automation and quality control in high-speed production environments.

• Metals & Mining

  Operates in harsh environments of steel mills, smelters, and mineral processing plants, providing reliable I/O for furnace control, motor drives, conveyors, and material handling equipment.

• Marine & Offshore

  Certified for marine applications, used for ship automation, propulsion control, and offshore rig monitoring. Its robust design withstands the corrosive, high-vibration conditions at sea.

• Building Automation

  Implemented in commercial and industrial buildings for HVAC control, lighting management, fire safety systems, and energy monitoring, ensuring efficient and safe building operations.
