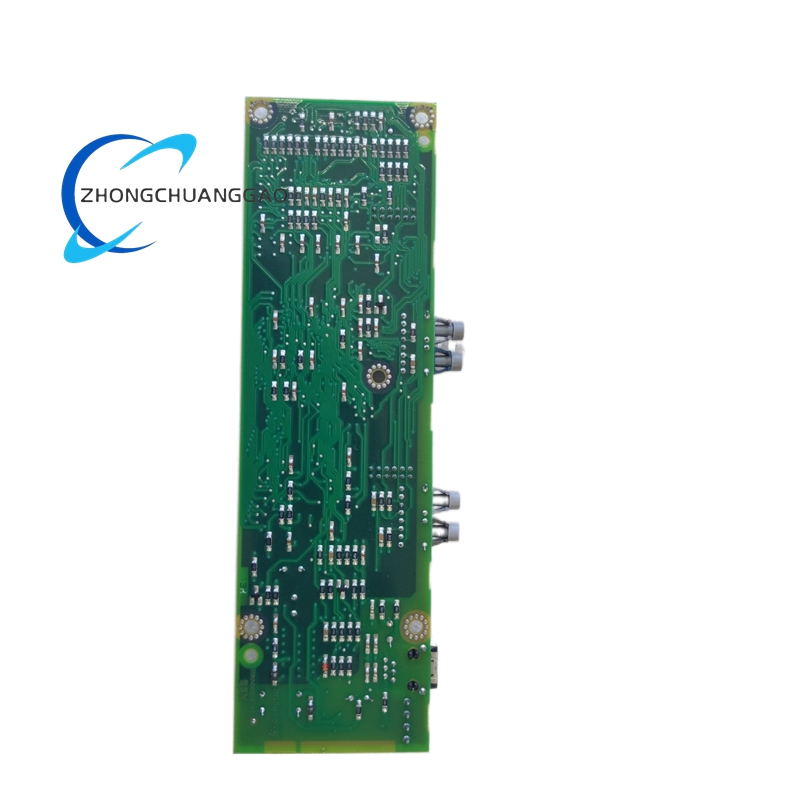

ABB NAMC-01 3BSE015488R1 Application and Motor Control Board

Description

Technical Specifications

Core Identification

• Model: NAMC-01
• Part Number: 3BSE015488R1
• Manufacturer: ABB
• Product Type: Application and Motor Control Board
• Compatible Platform: ABB ACS600 Series Variable Frequency Drives
• Form Factor: Printed Circuit Board (PCB) for internal drive mounting
• Weight: Approximately 0.1 kg (4.0 oz)
• Dimensions: 7.6 cm (W) × 2.5 cm (D) × 22.9 cm (L)
• Country of Origin: Finland

Processor & Memory

• Control Processor: High-performance 32-bit microcontroller
• Program Memory: Non-volatile flash memory for firmware and application programs
• Data Memory: Volatile RAM for real-time data processing and parameter storage
• Battery Backup: On-board battery for retaining critical parameters during power loss

Motor Control Capabilities

• Control Algorithms: Direct Torque Control (DTC), scalar (V/F) control
• Motor Compatibility: Induction motors, synchronous motors
• Speed Control Range: 0 to rated motor speed, with field weakening capability
• Torque Response: Sub-millisecond torque response for high-dynamic applications
• Position Control: Supports encoder feedback for precise speed and position regulation

I/O Interface Specifications

• Analog Inputs: Configurable for 0–10 V DC or 4–20 mA signals
• Analog Outputs: Configurable for 0–10 V DC or 4–20 mA signals
• Digital Inputs: Isolated 24 V DC digital inputs for control signals
• Digital Outputs: Relay and transistor outputs for control and status indication
• Encoder Interface: Supports incremental encoders (TTL, HTL) for speed/position feedback

Communication Interfaces

• Internal Communication: High-speed backplane connection to drive power electronics
• Serial Communication: RS-232/RS-485 ports for configuration and diagnostics
• Fieldbus Support: Compatible with various fieldbus adapter modules (Profibus, DeviceNet, etc.)
• Control Panel Interface: Connection for ABB CDP312 control panel

Electrical Specifications

• Power Supply: 24 V DC (derived from ACS600 drive internal power)
• Power Consumption: < 5 W
• Isolation: Galvanic isolation between control circuits and power electronics

Environmental Specifications

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant
• Shock Resistance: IEC 60068-2-27 compliant
• Protection Rating: IP20 (when installed in ACS600 drive enclosure)

Certifications & Compliance

• CE Marking
• UL Listed
• RoHS Directive compliance
• EMC compliance: EN 55011, EN 61800-3

Key Features

Advanced Motor Control

• Implements ABB’s proprietary Direct Torque Control (DTC) for exceptional dynamic performance
• Delivers precise torque and speed control with minimal overshoot and fast response
• Supports both open-loop and closed-loop operation with encoder feedback
• Provides automatic motor identification and parameter optimization
• Enables field weakening for extended speed range operation

Comprehensive Signal Processing

• Integrates high-resolution analog-to-digital and digital-to-analog converters
• Provides configurable signal filtering for noise reduction in industrial environments
• Supports real-time signal scaling and offset adjustment
• Offers built-in signal monitoring and fault detection for all I/O channels
• Enables precise control of external devices through analog and digital interfaces

Robust Communication Capabilities

• Facilitates seamless integration with higher-level control systems via fieldbus networks
• Supports multiple communication protocols through optional adapter modules
• Provides local configuration and monitoring via the ABB control panel interface
• Enables remote diagnostics and parameter adjustment via serial communication
• Supports data logging and trend analysis for process optimization

Advanced Diagnostics & Protection

• Offers comprehensive real-time monitoring of drive and motor parameters
• Provides detailed fault code generation and historical fault logging
• Implements multiple levels of motor and drive protection (overcurrent, overvoltage, overtemperature)
• Supports predictive maintenance through performance trend analysis
• Enables quick fault identification and troubleshooting to minimize downtime

Flexible Configuration & Programming

• Allows extensive parameter customization for diverse application requirements
• Supports user-defined control logic through application programming
• Provides configurable I/O mapping for flexible system integration
• Offers parameter backup and restoration capabilities
• Supports firmware updates for enhanced functionality and performance

Industrial-Grade Reliability

• Designed for continuous 24/7 operation in harsh industrial environments
• Constructed with high-quality components for long service life
• Features robust thermal management for stable operation across temperature extremes
• Implements comprehensive EMC protection for reliable performance in electrically noisy environments
• Backed by ABB’s global warranty and technical support network

Application Scenarios

Industrial Manufacturing

• Conveyor Systems: Precise speed control for material handling in production lines
• Packaging Machinery: Accurate positioning and speed regulation for packaging equipment
• Textile Machinery: Tension control and speed synchronization for textile production
• Printing Equipment: Registration control and web tension management
• Machine Tools: Spindle speed control and positioning for CNC machines

Process Industries

• Pumping Systems: Flow control and energy optimization for water and wastewater treatment
• Fan & Blower Systems: Variable speed control for HVAC and industrial ventilation
• Compressors: Load regulation and performance optimization for air compression systems
• Mixers & Agitators: Speed control for chemical and food processing applications
• Extruders: Precise speed and torque control for plastic and rubber processing

Mining & Minerals Processing

• Conveyor Belt Drives: Speed control for material transport in mining operations
• Crusher & Mill Drives: Torque control for mineral crushing and grinding processes
• Hoist & Winch Systems: Precise speed and position control for mine hoists
• Slurry Pump Drives: Flow control for mineral processing circuits
• Ventilation Fans: Variable speed control for mine ventilation systems

Oil & Gas Industry

• Pipeline Pump Drives: Flow control for crude oil and product pipelines
• Compressor Drives: Load regulation for gas compression stations
• Wellhead Pump Drives: Production rate control for oil and gas wells
• Refinery Process Drives: Speed control for distillation and refining processes
• LNG Plant Drives: Precise control for cryogenic processing equipment

Marine & Offshore Applications

• Ship Propulsion Drives: Speed control for main propulsion systems
• Thruster Drives: Position control for dynamic positioning systems
• Pump Drives: Control of ballast, bilge, and firewater pumps
• Winch & Crane Drives: Load control for deck machinery
• Ventilation Systems: Variable speed control for marine HVAC systems

Power Generation

• Water Pump Drives: Control of cooling water and feedwater pumps
• Fan Drives: Speed control for boiler and turbine ventilation systems
• Generator Excitation Control: Precise control for synchronous generators
• Wind Turbine Drives: Pitch control and speed regulation for wind turbines
• Solar Inverter Systems: Power output control for solar power plants

Building Automation

• HVAC Systems: Fan and pump speed control for energy-efficient building management
• Water Supply Systems: Pressure control for building water distribution
• Fire Protection Systems: Pump control for sprinkler systems
• Elevator Drives: Precise speed and position control for passenger elevators
• Escalator Drives: Speed control for commercial building escalators
