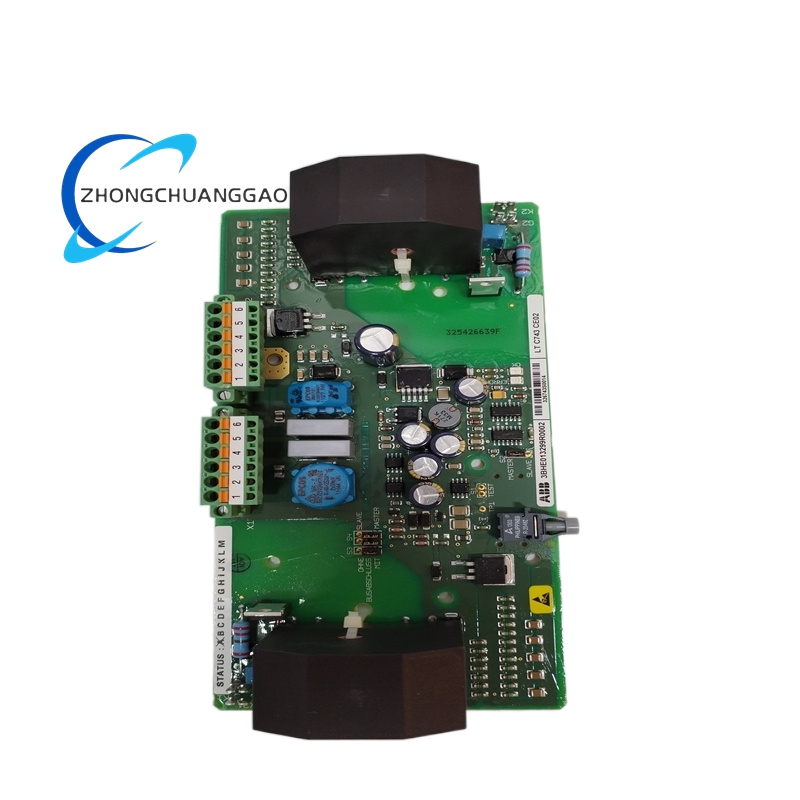

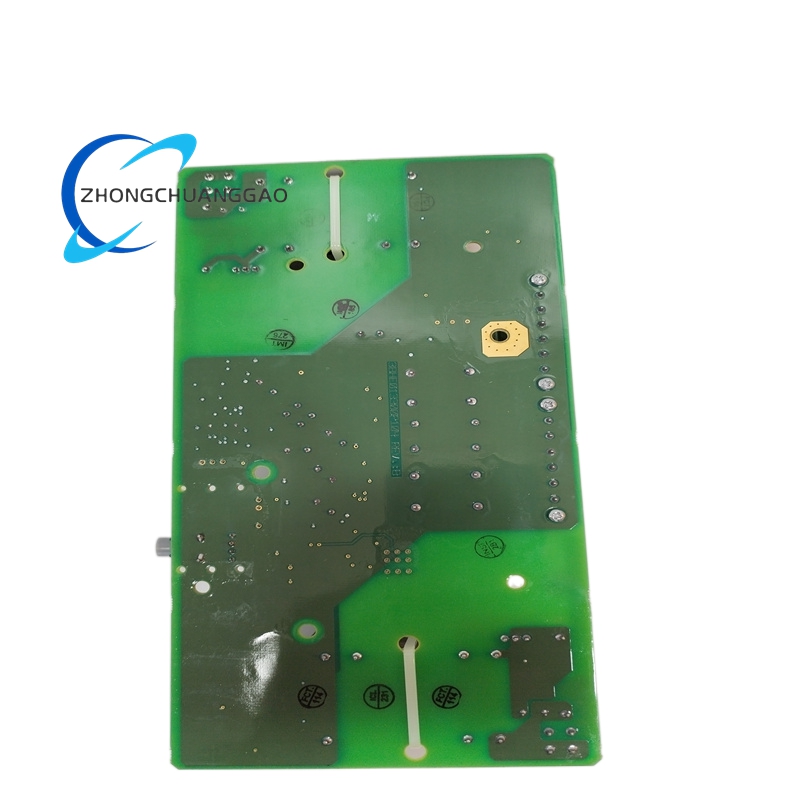

ABB LT C743CE02 3BHE013299R0002 Control Power Drive Board

Description

Technical Specifications

Electrical & Power Parameters

• Supply Voltage: 24 VDC (nominal, ±15% tolerance); compatible with 220 VAC industrial power inputs
• Power Consumption: ≤ 15 W (typical operation)
• Input Current: 15 mA (nominal)
• Output Current: 3 A (continuous)
• Isolation Voltage: 2.5 kV AC (channel‑to‑bus isolation)
• Signal Accuracy: Analog input ±0.05% full‑scale; analog output ±0.1% full‑scale
• Output Frequency: Up to 100 Hz for precise drive control
• Processing Speed: 550 μs for rapid signal and logic execution
• EMC Compliance: IEC 61800‑6‑2, IEC 61800‑6‑4 (industrial electromagnetic compatibility standards)
• Protection Features: Over‑voltage, over‑current, short‑circuit, over‑temperature, and reverse polarity protection

Mechanical & Environmental

• Form Factor: Compact PCB module for rack‑mount or cabinet installation
• Dimensions: 300 mm × 200 mm × 20 mm (L × W × H)
• Weight: Approximately 1 kg
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% RH (non‑condensing)
• Ingress Protection: IP20 (suitable for indoor industrial control cabinets)
• Vibration/Shock: Complies with IEC 60068‑2‑6 and IEC 60068‑2‑27 industrial standards
• Certifications: CE, RoHS, ISO 9001, and IEC 61800‑7

Communication & Compatibility

• Interfaces: RS‑485 (Modbus RTU), CANopen, and proprietary ABB drive bus connections
• Protocol Support: Modbus RTU, CANopen, and ABB ACS drive native communication protocols
• System Compatibility: Fully integrated with ABB ACS880 and ACS500 series variable‑frequency drives
• Software Compatibility: Configurable via ABB DriveStudio and ACS drive commissioning tools
• I/O Compatibility: Seamless connection to ABB industrial I/O modules and third‑party sensors/actuators

Key Features

• High‑Speed Control Logic: 550 μs processing speed enables rapid response to dynamic load changes and fault conditions.
• Precision Power Regulation: Delivers stable, regulated power for sensitive drive components and industrial control circuits.
• Comprehensive Fault Protection: Multi‑layered protection mechanisms safeguard drives and machinery from electrical damage.
• Industrial‑Grade Ruggedness: Operates reliably in extreme temperatures, vibration, and electrical noise environments.
• Multi‑Protocol Communication: Supports standard industrial buses for seamless integration with plant control systems.
• Plug‑and‑Play Integration: Direct compatibility with ABB ACS series drives simplifies installation and commissioning.
• Advanced Diagnostics: Built‑in status monitoring and fault logging enable proactive maintenance and minimal downtime.
• Low Power Consumption: Efficient design minimizes energy usage and heat generation in drive cabinets.
• Long‑Term Reliability: Industrial components and rigorous testing ensure extended service life with minimal maintenance.

Application Scenarios

• Variable‑Frequency Drive Systems: Core control and power regulation for ABB ACS880 and ACS500 series drives in industrial automation.
• Industrial Machinery: Control for pumps, fans, compressors, conveyors, and material handling equipment.
• Power Generation: Auxiliary drive control for fans, pumps, and feedwater systems in thermal and hydroelectric power plants.
• Oil & Gas Refining: High‑power motor control for pumps, compressors, and extruders in refineries and petrochemical plants.
• Metallurgical Industry: Drive control for rolling mills, electric arc furnaces, and continuous casting systems.
• Water & Wastewater: Drive control for large pumps and blowers in water treatment and distribution networks.
• Mining & Cement: Control for crushers, mills, kilns, and conveyors in mining operations and cement plants.
• Marine & Offshore: Propulsion and auxiliary drive systems for large vessels and offshore drilling platforms.
• Manufacturing & Assembly: Integration into PLC‑based automation lines for automotive, electronics, and general manufacturing.
