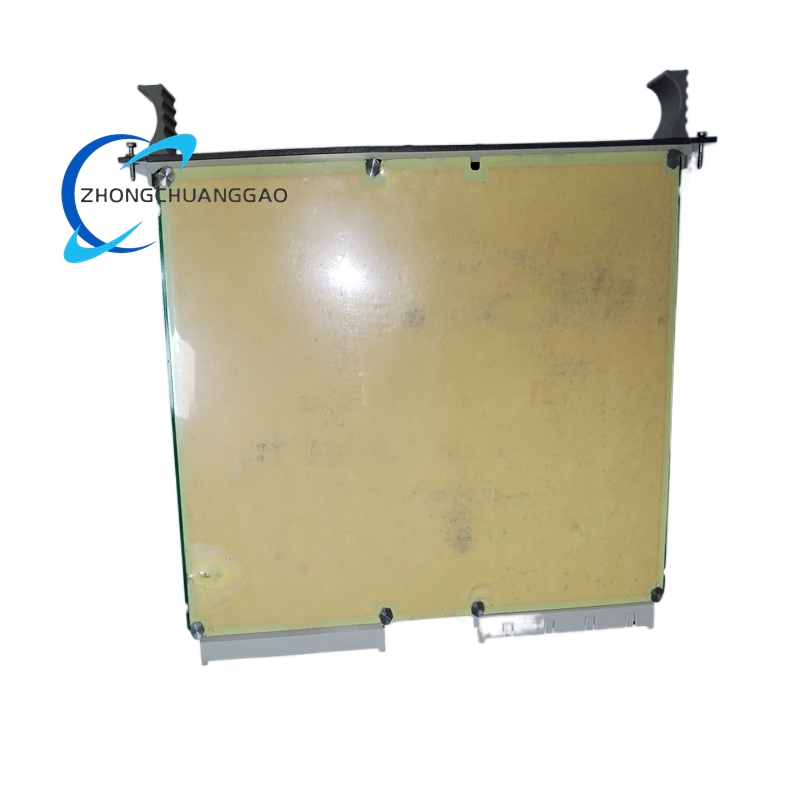

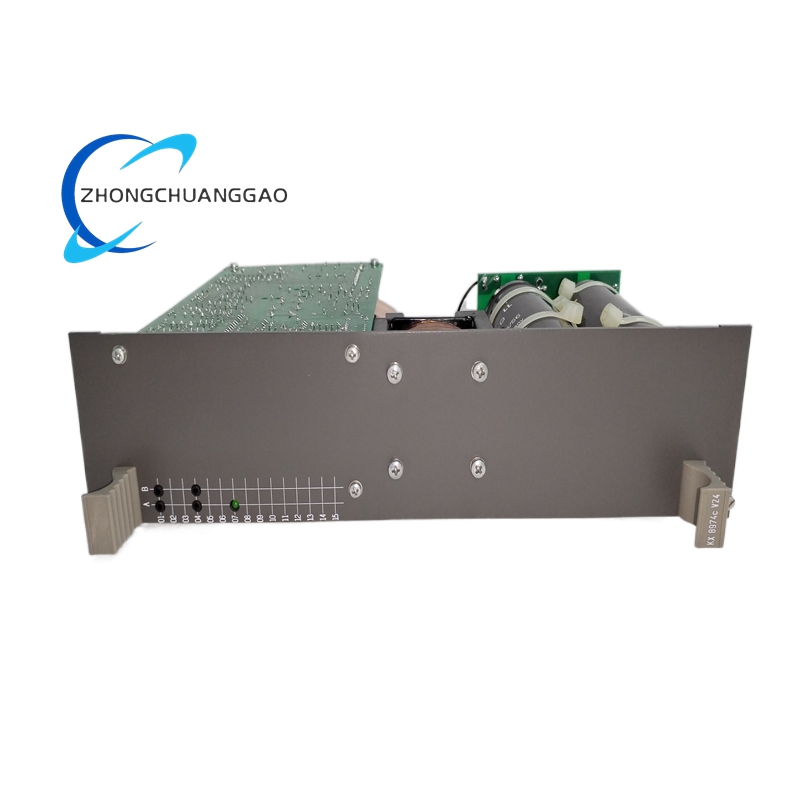

ABB KX8974c V24 Processor & I/O Interface Module

Description

Technical Specifications

Core Power & Electrical

• Supply Voltage: 24 VDC (nominal)
• Power Consumption: Industrial-grade, low-power design for continuous operation
• Isolation: Galvanic isolation between I/O channels and internal electronics (32-channel isolation)
• Protection: Over-voltage, over-current, and under-voltage protection

I/O Configuration

• Digital I/O: 16 digital inputs, 16 digital outputs (configurable for sinking/sourcing)
• Analog I/O: 4 analog inputs, 2 analog outputs (high-precision, multi-range)
• Signal Types: Supports voltage (0–10 V), current (4–20 mA), and dry contact signals
• Resolution: 16-bit analog-to-digital (ADC) and digital-to-analog (DAC) conversion

Processing & Memory

• Processor: High-performance 32-bit industrial microcontroller
• Memory: Large on-board RAM and non-volatile flash memory for program storage, data logging, and configuration retention
• Processing Speed: Optimized for real-time control with sub-millisecond response times

Communication Interfaces

• Primary Network: Ethernet/IP (1 Gbit/s maximum data rate)
• Supported Protocols: Modbus TCP/IP, Profinet, EtherCAT, RS485 (Modbus RTU)
• Fieldbus Compatibility: Integrates seamlessly with ABB MasterBus 300/300E systems

Mechanical & Environmental

• Form Factor: Compact module (100 mm × 50 mm × 20 mm)
• Mounting: DIN-rail or panel mounting for flexible cabinet integration
• Weight: Approximately 1.0 kg
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -45°C to +90°C
• Humidity: 5%–95% RH, non-condensing
• Vibration/Shock: Complies with IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock)
• EMC Compliance: IEC 61000-6-2 (industrial immunity), IEC 61000-6-4 (industrial emissions)
• Certifications: CE, UL, CSA, and ATEX/IECEx for hazardous areas (select variants)

Key Functional Features

High-Speed Real-Time Processing

• Employs a powerful 32-bit processor to execute complex control algorithms and logic with minimal latency.
• Processes large volumes of I/O data in parallel, ensuring deterministic performance for closed-loop control systems.
• Maintains precise synchronization with system clocks for coordinated multi-module operation.

Versatile I/O Capability

• Offers a balanced mix of digital and analog I/O to interface with a wide array of field devices, from simple switches to high-precision sensors.
• Provides 16-bit resolution for analog signals, enabling accurate measurement and control of process variables like pressure, temperature, and flow.
• Features galvanic isolation on all I/O channels to eliminate ground loops, protect against electrical noise, and enhance signal integrity.

Multi-Protocol Communication

• Supports leading industrial communication protocols, facilitating seamless integration with ABB controllers, HMIs, SCADA systems, and third-party devices.
• Delivers high-speed Ethernet/IP connectivity (up to 1 Gbit/s) for fast data exchange across large-scale networks.
• Enables protocol conversion, translating field device signals into formats recognizable by the central control system.

Modular & Scalable Design

• Compact, single-module design optimizes cabinet space and simplifies installation and maintenance.
• Supports easy system expansion by adding multiple KX8974c V24 modules to the same control network.
• Compatible with ABB’s Advant Controller 450 and Symphony Plus DCS platforms for vertical system integration.

Advanced Diagnostics & Reliability

• Integrates comprehensive self-diagnostic functions to monitor module health, I/O status, and communication links in real time.
• Generates detailed fault logs and alerts for quick troubleshooting and root-cause analysis.
• Built with industrial-grade components and a wide temperature range to ensure uninterrupted operation in harsh environments.
• Features robust EMC protection to resist electromagnetic interference from industrial equipment.

User-Friendly Configuration

• Configurable via ABB’s proprietary programming tools (e.g., Control Builder) using ladder logic, function blocks, or structured text.
• Allows easy parameterization of I/O ranges, communication settings, and control logic without hardware modifications.
• Stores configuration data in non-volatile memory, preserving settings through power cycles and module replacement.

Application Scenarios

Industrial Automation & Manufacturing

• Automated Production Lines: Controls and monitors conveyor systems, robotic arms, packaging machines, and assembly lines with precise I/O and real-time processing.
• Machine Tools: Interfaces with CNC machines, spindles, and servo drives for motion control and process monitoring.
• Material Handling: Manages forklifts, stackers, and warehouse automation systems, ensuring reliable operation in dynamic environments.

Power Generation & Distribution

• Thermal & Renewable Power Plants: Integrates with boiler controls, turbine governors, and solar/wind inverter systems for grid synchronization and load management.
• Substations & Switchgear: Provides I/O and communication for protection relays, circuit breakers, and SCADA systems in power distribution networks.
• Energy Management Systems: Monitors power consumption, optimizes energy usage, and interfaces with smart grid infrastructure.

Oil & Gas Industry

• Upstream Operations: Connects to wellhead sensors, pumps, and compressors for remote monitoring and control in exploration and production.
• Midstream Pipelines: Supports leak detection, valve control, and pump station automation across long-distance pipeline networks.
• Downstream Refining: Facilitates process control in distillation, cracking, and hydroprocessing units, ensuring safety and product quality.

Chemical & Pharmaceutical Manufacturing

• Continuous Process Plants: Controls reactors, mixers, and separation systems with high-precision analog I/O for consistent product quality.
• Batch Processing: Manages recipe execution, material tracking, and quality control in pharmaceutical and specialty chemical production.
• Hazardous Area Applications: Operates reliably in explosive atmospheres (ATEX/IECEx certified variants) for safe process control.

Water & Wastewater Treatment

• Municipal Treatment Plants: Controls pumps, blowers, and filtration systems for efficient water purification and wastewater processing.
• Industrial Water Systems: Monitors and regulates water quality, flow rates, and chemical dosing in manufacturing facilities.
• Desalination Plants: Integrates with reverse osmosis systems and energy recovery devices for sustainable water production.

Mining & Metals Processing

• Ore Processing: Manages crushers, mills, and flotation cells for efficient mineral extraction.
• Smelting & Refining: Controls high-temperature processes and material handling in metal production.
• Conveyor & Hoist Systems: Provides reliable I/O and control for heavy-duty material transport in mining operations.

Marine & Offshore

• Ship Propulsion & Thrusters: Interfaces with marine drive systems for precise speed and direction control.
• Offshore Platforms: Supports topside process control, subsea monitoring, and emergency shutdown systems (ESD) in harsh marine environments.
• Dynamic Positioning (DP) Systems: Provides high-speed I/O and communication for vessel positioning and stability control.
