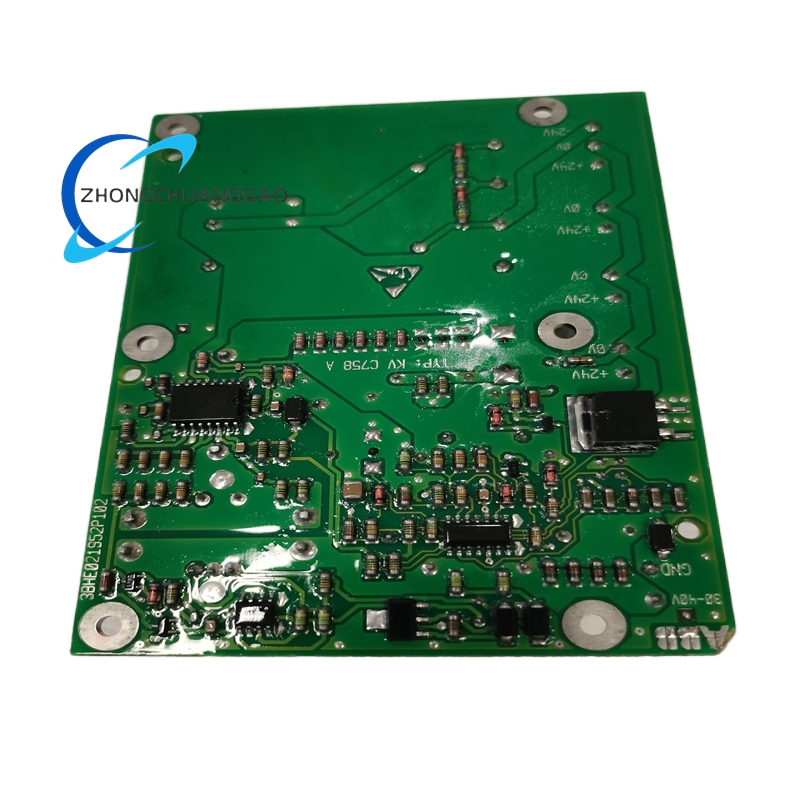

ABB KVC758A124 3BHE021951R0124 IPS Dual Voltage Subprint

Description

Technical Specifications

Functional Features

Dual Isolated Power Supply & Precision Regulation

• Dual-Channel Isolation: Provides two independent, galvanically isolated output rails (+24 V for control logic, ±15 V for analog circuits and driver boards) to prevent cross-interference and ensure signal integrity in high-voltage drive systems.
• Precision Voltage Control: Delivers tight regulation (±0.5%) across full load and line variation, ensuring stable operation of sensitive control and power semiconductor circuits.
• High Efficiency Design: Achieves ≥95% efficiency to minimize heat generation, reducing cooling requirements and improving overall drive system reliability.
• Low Ripple & Noise: Strictly controls output ripple (≤1% Vrms) to avoid interference with precision sensors and driver circuits, critical for high-performance drive control.

Integrated Protection & Fault Diagnosis

• Overvoltage/Undervoltage Protection: Monitors input and output voltages in real time, triggering immediate shutdown or fault alerts to protect power semiconductors and control circuits.
• Overcurrent & Short-Circuit Protection: Fast-acting current limiting (≤10 μs response) prevents damage from load short circuits or module internal faults.
• Overtemperature Protection: Integrates on-board temperature sensors, initiating thermal derating or shutdown to prevent thermal runaway in high-power operation.
• Isolation Monitoring: Continuously checks isolation resistance between channels and ground, providing alerts for insulation degradation to prevent high-voltage breakdown.
• Comprehensive Diagnostic Signals: Outputs fault codes and status signals via the S800 I/O bus, enabling integration with the main drive control system for predictive maintenance and rapid troubleshooting.

Industrial Robustness & EMC Performance

• Harsh Environment Tolerance: Operates reliably in temperatures from -25°C to +70°C, with high vibration and shock resistance to withstand heavy industrial environments (e.g., mining, marine).
• EMC Shielding & Filtering: Built-in electromagnetic compatibility (EMC) shielding and input/output filtering suppress EMI from high-power drive switching, ensuring stable performance in electrically noisy environments.
• Rugged Mechanical Design: Compact DIN rail mounting with high-grade components and heat-dissipating structure ensures long-term service life in 24/7 continuous operation.
• Hot Swap Capability: Supports hot swap (where system permits) for easy replacement without full system shutdown, reducing maintenance downtime.

Seamless System Integration

• ACS5000 Drive Compatibility: Directly integrated as a power subprint for ABB ACS5000 water-cooled medium-voltage drives, ensuring full compatibility with main control and power stack systems.
• S800 I/O Bus Compatibility: Connects directly to the ABB S800 I/O system via a 12 Mbps redundant bus, enabling high-speed data transmission and system expansion.
• Standardized Interfaces: Equipped with robust power terminals, control connectors, and diagnostic ports for secure, reliable electrical and communication connections.
• Scalable Power Support: Designed to work in parallel or series configurations to meet higher power requirements for large-scale drive systems (up to 100 MW).

Application Scenarios

Medium-Voltage Industrial Drives

• ACS5000 Series Drives: Core power subprint for ABB ACS5000 water-cooled medium-voltage drives, used for speed control of high-power motors in pumps, fans, compressors, and conveyors.
• Metallurgical Industry: Power control for rolling mills, continuous casting machines, and crushers in steel and aluminum production, ensuring stable power delivery in high-vibration environments.
• Mining Operations: Reliable power supply for heavy-duty mining conveyors, hoists, and grinding mills, operating in harsh, high-dust, and high-EMI conditions.

Power Generation & Grid Infrastructure

• Generator Excitation Systems: Critical power module for generator excitation control systems, providing stable ±15 V and +24 V power for excitation regulators and sensors.
• Wind Turbine Converters: IPS subprint for multi-megawatt wind turbine power converters, ensuring isolated power delivery for control and driver circuits in variable-speed wind turbines.
• HVDC Transmission Systems: Power control subprint for high-voltage DC transmission valve stacks, supporting high-efficiency power conversion for long-distance power transfer.

Marine & Offshore Industry

• Ship Propulsion Drives: Power supply for electric propulsion systems in large vessels, cruise ships, and offshore drilling rigs, operating in corrosive, high-humidity marine environments.
• Offshore Platforms: Reliable power control for thruster drives and oil/gas processing equipment, meeting strict safety and reliability standards for offshore installations.

Oil, Gas & Petrochemical

• Refinery & Petrochemical Drives: Power subprint for pumps, compressors, and agitators in refineries and petrochemical plants, certified for safe operation in hazardous areas.
• Gas Turbine Starting Systems: Stable power supply for gas turbine starter drives, ensuring reliable startup in high-temperature and high-EMI environments.

Water & Wastewater Treatment

• Desalination Plants: Power control for high-pressure water pumps in reverse osmosis desalination systems, delivering efficient and reliable power for large-scale water treatment.
• Wastewater Aeration Systems: Stable power supply for large blowers in municipal and industrial wastewater treatment aeration systems, reducing energy consumption and maintenance costs.

Railway & Traction

• High-Speed Trains & Locomotives: Power subprint for traction drive systems, providing isolated power for control and driver circuits in high-speed rail and electric locomotives.
• Urban Mass Transit: Reliable power control for subway and light rail vehicle traction drives, ensuring safe and efficient operation in urban rail systems.
