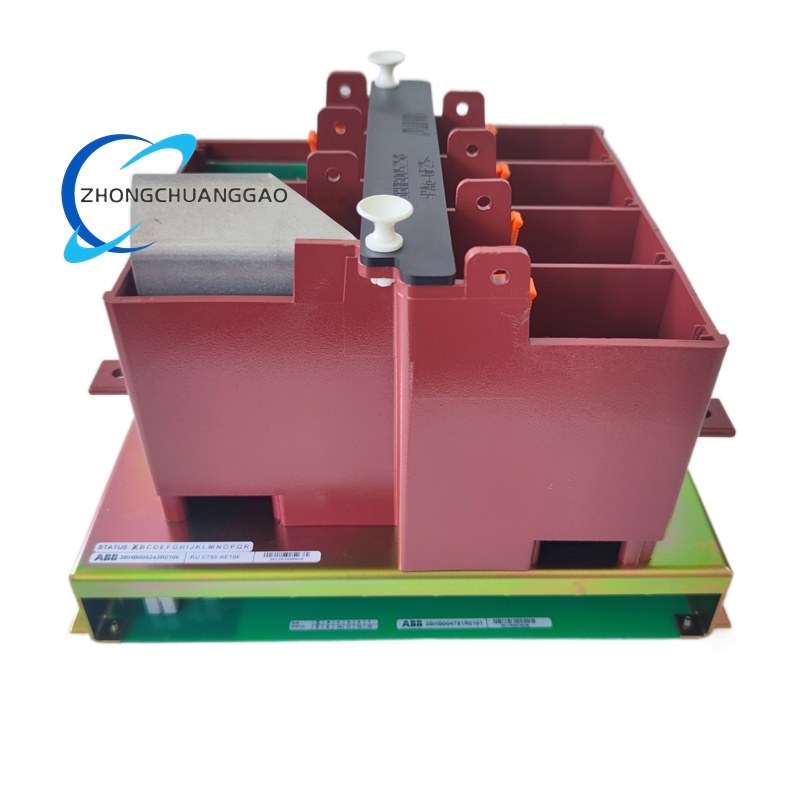

ABB KUC755AE106 3BHB005243R0106 Power Excitation Control Module

Description

Technical Specifications

Core Control Parameters

• Product Type: Power Excitation Control Module
• Compatible Systems: ABB ACS 6000 Series High-Power AC Drives
• Excitation Control Range: 0–125 V DC field voltage output
• Current Capacity: 10 A continuous field current output
• Control Algorithm: Vector control with adaptive parameter compensation
• Response Time: < 5 ms for excitation current regulation
• Regulation Accuracy: ±0.5% of rated field current
• Control Modes: Open-loop excitation control, closed-loop voltage regulation, reactive power control

Electrical Ratings

• Input Voltage: 24 V DC ± 10% (control power supply)
• Field Power Supply: 220–480 V AC (variable, configurable)
• Power Consumption: < 150 W (full load operation)
• Isolation Voltage: 2.5 kV AC (field circuit to control logic)
• Overvoltage Protection: ±600 V DC surge protection on field outputs
• Short-Circuit Protection: Current-limiting with fast-acting fault detection

Communication Interfaces

• Primary Protocol: Ethernet (Modbus TCP/IP, PROFINET)
• Secondary Protocols: PROFIBUS DP, RS485 (Modbus RTU)
• Synchronization Interface: High-speed fiber optic link for drive system synchronization
• Diagnostic Port: USB for local configuration and firmware updates

Mechanical & Physical

• Mounting: Rack-mounted for ACS 6000 drive cabinets
• Dimensions (W×H×D): 243 mm × 523 mm × 120 mm
• Weight: 9.8 kg (21.6 lbs)
• Terminals: Heavy-duty screw terminals for field power, control signals, and communication
• Cooling: Forced-air cooling with integrated fan assembly
• LED Indicators: Power, excitation status, fault, and communication link status

Environmental Ratings

• Operating Temperature: -25 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5%–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 (5–150 Hz, 1 g rms)
• Shock Resistance: IEC 60068-2-27 (50 g, 11 ms)
• Altitude: Up to 2000 m (no derating)

Compliance & Certifications

• Standards: IEC 61800-7, IEC 61010-1, IEC 60947-4-1
• EMC Compliance: IEC/EN 61000-6-2 (industrial immunity), IEC/EN 61000-6-3 (industrial emissions)
• Certifications: CE, UL, CSA, RoHS compliant

Key Features

Precise Excitation Control

• Adaptive Control Algorithm: Automatically compensates for motor parameter variations, maintaining consistent performance over long-term operation.
• Multi-Mode Control: Supports open-loop excitation, closed-loop voltage regulation, and reactive power control for flexible system operation.
• High-Speed Response: Delivers sub-5 ms response time for rapid adjustment of field current during load changes.
• Stable Voltage Regulation: Maintains generator/motor terminal voltage within ±0.5% of setpoint under varying load conditions.

Robust Protection & Reliability

• Comprehensive Fault Protection: Integrates overcurrent, overvoltage, short-circuit, overtemperature, and field winding failure detection.
• Galvanic Isolation: Full isolation between high-power field circuits and low-voltage control logic prevents electrical interference and protects sensitive electronics.
• Industrial-Grade Construction: Rugged PCB design and heavy-duty components withstand vibration, shock, and extreme temperatures.
• Continuous Operation: Designed for 24/7 operation with MTBF exceeding 100,000 hours.

Seamless System Integration

• ACS 6000 Native Compatibility: Direct plug-and-play integration with ABB ACS 6000 drive systems, eliminating complex wiring and configuration.
• Versatile Communication: Supports Ethernet, PROFIBUS, and Modbus protocols for easy connection to PLCs, DCS systems, and SCADA networks.
• Synchronization Capability: High-speed fiber optic interface ensures precise synchronization with other drive modules in multi-motor systems.
• Hot-Swap Support: Allows module replacement without shutting down the entire drive system, minimizing downtime.

User-Friendly Operation & Diagnostics

• Intuitive LED Status Indicators: Clear visual feedback for power, excitation status, communication, and fault conditions.
• Local Configuration: USB port enables direct setup and parameter adjustment without requiring a separate programming terminal.
• Advanced Diagnostics: Real-time monitoring of field current, voltage, temperature, and system performance with detailed fault logging.
• Firmware Upgradability: Supports online firmware updates to enhance functionality and compatibility with new drive features.

Application Scenarios

Power Generation

• Thermal Power Plants: Excitation control for large synchronous generators in coal-fired and gas-fired power stations.
• Hydroelectric Power Plants: Precise field current regulation for hydro generators, ensuring stable grid connection and voltage control.
• Wind Turbines: Excitation management for doubly-fed induction generators in wind farms, optimizing power output and grid stability.
• Diesel Power Generators: Reliable excitation control for standby and prime power generator sets.

Metal Processing & Manufacturing

• Steel Rolling Mills: Excitation control for main drive motors in hot and cold rolling mills, ensuring precise speed and torque control.
• Aluminum Smelters: High-power motor excitation for electrolysis and casting processes.
• Metal Forming: Precise excitation regulation for press brakes, shears, and stamping machine main drives.
• Cable & Wire Production: Synchronized excitation control for drawing and extrusion line motors.

Mining & Heavy Industry

• Mining Conveyors: Excitation control for high-power conveyor motors in underground and open-pit mines.
• Ore Processing Mills: Stable field current regulation for grinding mills and crushers.
• Cement Production: Precise excitation management for kiln and raw mill drive motors.
• Port Material Handling: Excitation control for ship loader and unloader drive systems.

Oil & Gas Industry

• Pumping Stations: High-power motor excitation for long-distance oil and gas pipeline pumps.
• Refinery Processes: Excitation control for compressors, fans, and extruders in petroleum refining.
• Offshore Platforms: Robust excitation management for drilling and production equipment motors.
• LNG Facilities: Precise regulation for liquefaction and regasification process drives.

Marine & Offshore Applications

• Ship Propulsion: Excitation control for main propulsion motors in large vessels and cruise ships.
• Dynamic Positioning: Precise field current regulation for thruster motors in offshore rigs and vessels.
• Deck Machinery: Reliable excitation management for winches, cranes, and anchor handling equipment.

General Industrial High-Power Drives

• Paper Machines: Excitation control for dryer section and calender main drives.
• Rubber & Plastic Extrusion: Precise regulation for extruder motors in polymer processing.
• Test Benches: High-performance excitation for large motor and generator test systems.
• Water Treatment: Excitation control for high-power pumps in water desalination and wastewater treatment plants.
