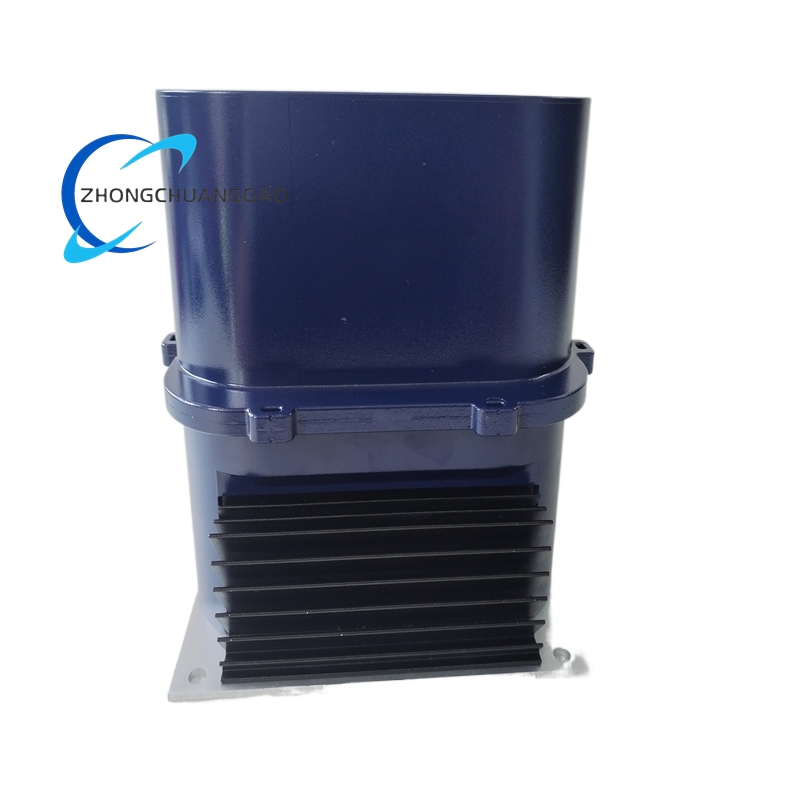

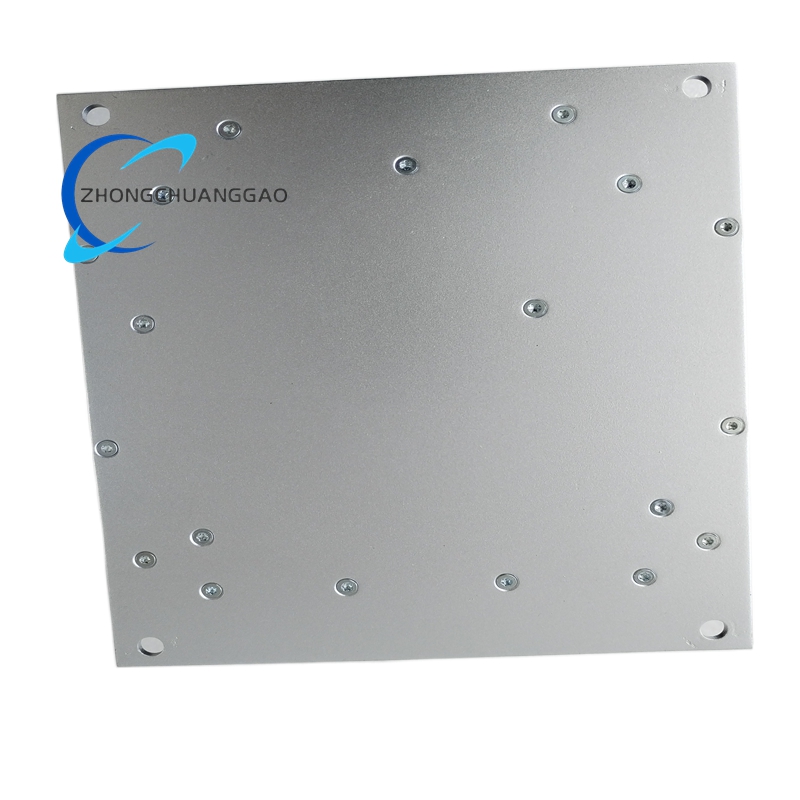

ABB IPS21‑24V‑35AD Isolated Power Supply Module

Description

Technical Specifications

• Output Voltage：24 VDC
• Output Current：35 A
• Power Rating：840 W
• Input Voltage Range：100–240 VAC (wide‑range universal input)
• Isolation Voltage：4 kV (input‑to‑output galvanic isolation)
• Efficiency：≥90%
• Operating Temperature：-25°C to +70°C
• Storage Temperature：-40°C to +85°C
• Relative Humidity：5%–95% RH, non‑condensing
• Cooling Method：Conduction / forced air cooling
• Protection Class：IP20
• Certifications：CE, UL, CSA
• Compliance：IEC 61800, IEC 61000‑4‑2/3/4/5/6, EN 61000‑6‑2/4
• Weight：Approx. 1.0 kg
• Mounting：Cabinet/chassis mounting for drive integration

Key Functional Features

Full Galvanic Isolation

• Provides 4 kV input‑to‑output isolation to break ground loops and shield control circuits from high‑voltage disturbances.
• Enhances system safety and signal integrity in medium‑voltage drive environments.

Wide Input Compatibility

• Supports 100–240 VAC universal input for global deployment without configuration changes.
• Maintains stable output under voltage fluctuations and brownout conditions.

Comprehensive Protection Mechanisms

• Over‑voltage protection (OVP)
• Over‑current protection (OCP)
• Short‑circuit protection (SCP)
• Over‑temperature protection (OTP)
• Under‑voltage lockout (UVLO)
• All protections are self‑resetting to ensure continuous operation.

High Efficiency & Reliability

• Up to 90% conversion efficiency to reduce power loss and heat generation.
• Extended service life with industrial‑grade components for continuous duty.
• Low ripple and noise for clean powering of sensitive logic and sensors.

Robust Industrial Design

• Operates reliably in -25°C to +70°C without performance degradation.
• Resists vibration, shock, and electromagnetic interference per IEC 61000 standards.
• Compact form factor optimized for drive cabinet integration.

Status Monitoring

• Integrated LED indicators for power on, output ready, and fault status.
• Supports remote diagnostics for system health monitoring.

Application Scenarios

Medium‑Voltage Drives

• Core auxiliary power supply for ABB ACS2000 medium‑voltage variable speed drives.
• Powers control boards, fiber‑optic interfaces, gate drivers, and feedback systems.

Power Generation

• Used in gas turbines, steam turbines, generators for excitation and control power.
• Supports grid‑tie converters and power quality systems.

Oil & Gas

• Integrated into pumps, compressors, fans, and extruders in upstream, midstream, and downstream facilities.
• Ensures stable control power in hazardous and remote locations.

Mining & Metals

• Provides isolated power for crushers, mills, conveyors, and hoists.
• Withstands heavy vibration and dust in mining environments.

Water & Wastewater

• Supports large pumps, blowers, and centrifuges in municipal and industrial treatment plants.
• Ensures continuous operation for critical utility services.

Marine & Offshore

• Used in ship propulsion, thruster drives, and offshore platform systems.
• Complies with marine‑grade environmental and safety requirements.

Industrial Manufacturing

• Deployed in paper machines, extruders, mixers, winders, and high‑power motion systems.
• Delivers clean, isolated power for precision control and automation.
