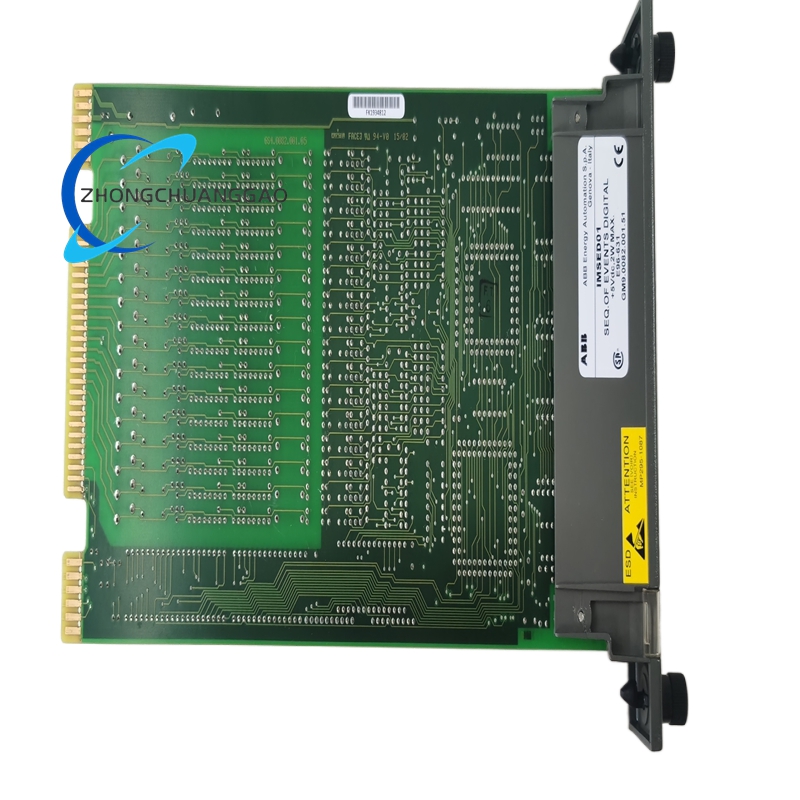

The ABB IMSED01 is a high-performance 16-channel digital input module belonging to the ABB Symphony Plus I/O HR series, purpose-built for industrial automation and process control systems. It is engineered for high-speed, reliable digital signal acquisition and precise sequence of events (SOE) timestamping, enabling accurate monitoring, control, and event logging across demanding industrial environments. This module seamlessly integrates with ABB Symphony Plus Process Leitsystem (PLS) controllers and is fully compatible with ABB’s 800xA distributed control system (DCS), adhering to international industrial standards for robust performance.
Description
Technical Specifications
- Input Channels: 16 independent digital input channels
- Input Voltage Range: 24 VDC / 48 VDC (0–24 VDC compatible)
- Input Current: Up to 20 mA per channel
- Response Time: < 1 millisecond (high-speed signal detection)
- Operating Temperature: -40°C to +70°C
- Dimensions: 17.8 cm (L) × 5.1 cm (W) × 33.0 cm (H)
- Weight: 0.4 kg (0.88 lb)
- Power Supply: +5 VDC, 350 mA
- Enclosure Rating: IP20 (dust and splash protection)
- Certifications: CE, UL, CSA compliance
- Standards: IEC 61131-3, EN 50 series (EMC and industrial safety)
- Mounting: DIN rail mounting for easy cabinet integration
Key Functional Features
High-Density & Configurable Inputs
- 16 independent channels support simultaneous connection to multiple sensors, switches, and field devices.
- Each channel is user-configurable for active-high or active-low logic, with built-in signal filtering to suppress electromagnetic interference (EMI) and ensure stable signal reading.
Real-Time Status & Diagnostics

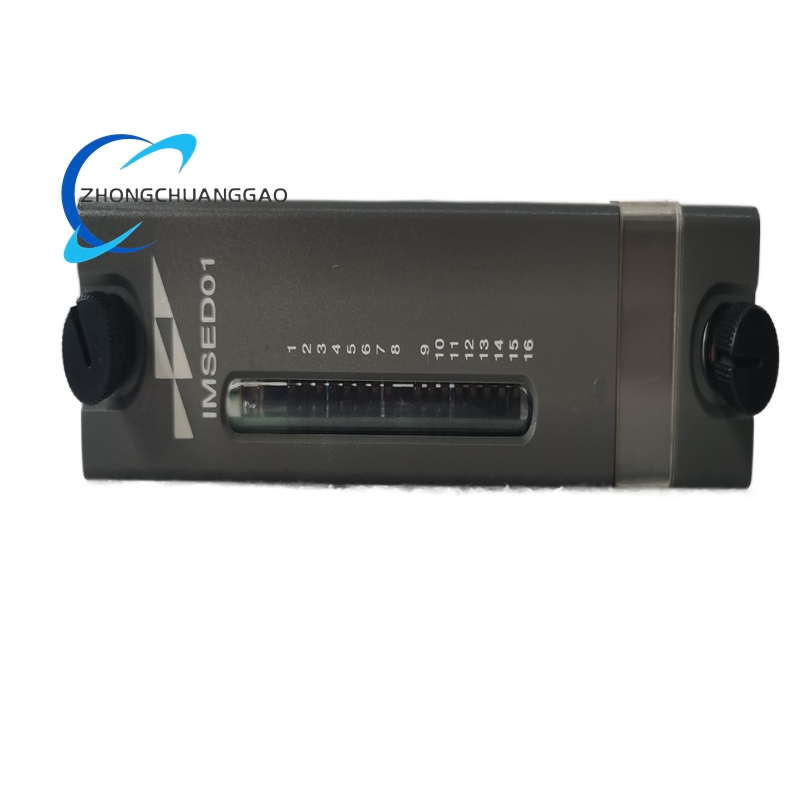

- Individual LED indicators for each channel provide instant visual feedback on active/inactive status, simplifying on-site troubleshooting and maintenance.
- Integrated diagnostic capabilities for signal quality monitoring and fault detection.
High-Speed Communication & Integration
- Connects to Symphony Plus PLS controllers via the HR bus for fast, deterministic data transfer.
- Supports major industrial communication protocols: Modbus TCP, PROFINET, EtherCAT, enabling seamless interoperability with PLCs, DCS, and third-party automation systems.
Robust Industrial Design
- Constructed with industrial-grade materials to withstand extreme temperatures, vibration, and electrical noise.
- Compact form factor optimizes space utilization in control cabinets.
- Designed for long service life with minimal maintenance requirements.
Sequence of Events (SOE) Capability
- Delivers microsecond-level timestamping of input state changes, critical for precise event sequencing, root-cause analysis, and regulatory compliance in power, oil & gas, and manufacturing sectors.
Application Scenarios
Industrial Automation & Manufacturing
- Production Line Monitoring: Real-time detection of motor start/stop, conveyor position, and equipment operational status.
- Packaging & Assembly Machinery: Precise control of actuators, sensors, and safety interlocks.
- Robotics Integration: Signal input for robot motion control, safety gates, and collaborative task coordination (e.g., pick-and-place, palletizing).
Process Control Industries
- Oil & Gas, Chemical, Pharmaceutical: Digital signal acquisition for valve positions, pump status, and safety instrumented systems (SIS).
- Water & Wastewater Treatment: Monitoring pump operations, valve states, and water quality sensor feedback.
Power Generation & Distribution
- Power Plants: Turbine control, switchgear operation, and generator status monitoring.
- Substation Automation: SOE recording for circuit breakers, relays, and fault analysis to enhance grid reliability.
Marine & Offshore
- Shipboard Automation: Control and monitoring of ballast systems, engine diagnostics, and safety equipment in marine environments.
OEM & Panel Building
- Integrated by original equipment manufacturers (OEMs) and control panel builders for custom automation solutions across diverse industrial sectors.
