Product Short Description

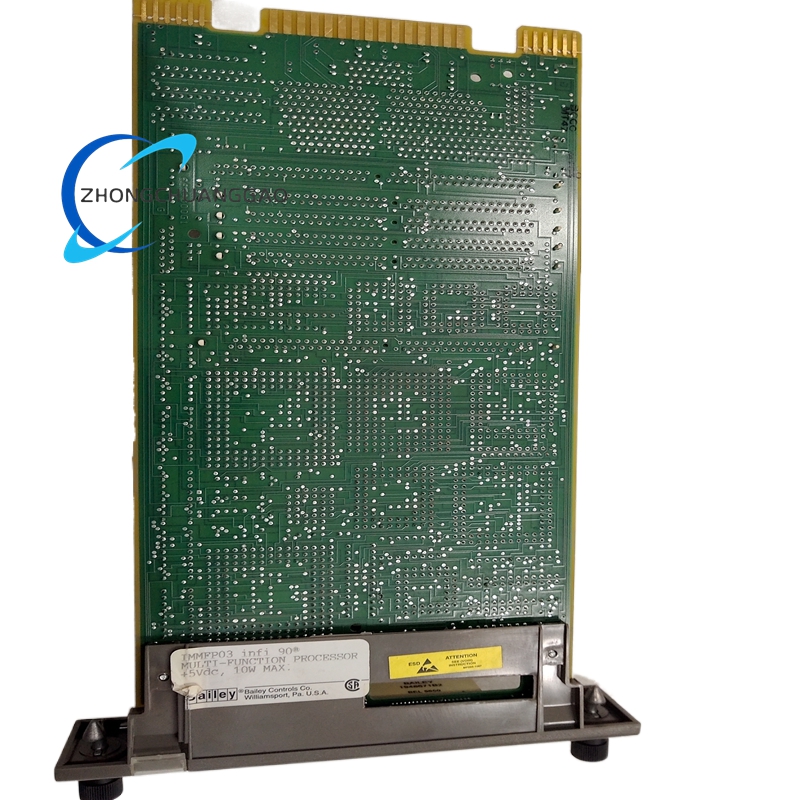

The ABB IMMFP03 is a high-performance, field-proven multifunction processor module serving as the core control component in ABB Bailey INFI 90 and Symphony Plus distributed control systems. It executes comprehensive control strategies, processes real-time I/O data, manages system communication, and coordinates overall automation operations. Engineered for mission-critical industrial environments, it integrates continuous regulatory control, sequential logic control, batch management, data acquisition, and advanced algorithm execution in one unit. With enhanced computational power and expanded memory compared to predecessor models, it delivers deterministic, high-speed performance to ensure stable, precise, and efficient operation of complex industrial processes.
Description
Technical Specifications
| Parameter | Value |
|---|---|
| Product Series | INFI 90, Symphony Plus, Harmony |
| Module Type | Multifunction Processor Module |
| Processor Architecture | 32-bit high-performance industrial microprocessor |
| Memory Configuration | 2 MB SRAM (1.57 MB available), 512 KB NVRAM, 512 KB ROM |
| Power Requirements | +5 VDC, 2 A, maximum power consumption 10 W |
| Communication Interfaces | INFI-NET, Module Bus, supporting peer-to-peer and I/O communication |
| I/O Capacity | Supports connection and control for up to 64 combined analog/digital I/O modules |
| Redundancy Support | Full redundant operation with bumpless switchover between primary and backup modules |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Physical Dimensions | 35.56 mm (W) × 177.80 mm (H) × 298.45 mm (D) |
| Weight | 0.84 kg |
| Shock & Vibration | 15 g (shock), 2 g (vibration) per IEC 60068-2-6/27 |
| Certifications | CE, UL, CSA, RoHS compliant |
| MTBF | >100,000 hours |
Key Features
- Superior Computational Performance: 32-bit processor architecture delivers fast execution of complex control algorithms, including multi-loop PID, fuzzy logic, advanced mathematical computations, and custom user programs, ensuring rapid response to process dynamics.
- Integrated Multi-Tasking Control: Simultaneously executes regulatory control, sequential logic, batch sequencing, alarming, trending, and data acquisition functions, eliminating the need for multiple dedicated modules.
- Expanded Memory Resources: Ample SRAM, NVRAM, and ROM storage accommodates large control programs, historical data, configuration parameters, and system diagnostics, supporting extensive and sophisticated automation projects.
- High-Reliability Redundancy: Supports fully redundant processor configurations with high-speed communication links for seamless, bumpless transfer during failover, ensuring uninterrupted operation for critical processes.
- Flexible System Connectivity: Integrates with INFI-NET and Module Bus protocols, enabling seamless communication with other system processors, I/O modules, operator stations, and third-party devices.
- Non-Volatile Data Retention: Integrated NVRAM preserves all control logic, setpoints, and critical configuration data during complete power loss, ensuring instant system recovery without manual reconfiguration.
- Robust Industrial Design: Constructed with industrial-grade components to withstand wide temperature variations, high humidity, vibration, and electrical interference, maintaining stable performance in harsh plant environments.
- Comprehensive Diagnostics: Built-in self-diagnostic routines and front-panel LED indicators provide real-time status monitoring, fault detection, and troubleshooting information to minimize downtime and simplify maintenance.
- Programming Flexibility: Supports multiple programming languages including function block diagrams, ladder logic, structured text, and basic control languages, conforming to IEC 61131-3 standards for versatile control strategy development.
- Hot-Swappable Installation: Designed for module replacement without system shutdown, reducing maintenance-related process interruptions and enhancing overall system availability.
Application Scenarios
The ABB IMMFP03 is deployed across major industries requiring advanced, reliable process control:
- Power Generation: Boiler combustion control, turbine speed regulation, generator excitation systems, feedwater control, and flue gas desulfurization processes in coal-fired, gas, and combined-cycle power plants.
- Oil & Gas: Crude oil distillation, catalytic cracking, hydrocracking, pipeline pressure control, and offshore platform automation, ensuring safe and efficient operation in hazardous locations.
- Chemical & Petrochemical: Polymerization reactors, distillation columns, solvent recovery systems, and safety instrumented systems (SIS), complying with strict process safety and quality standards.
- Water & Wastewater Treatment: Pump station control, aeration basin regulation, filtration processes, and sludge dewatering systems, optimizing resource usage and ensuring regulatory compliance.
- Pharmaceutical & Biotechnology: Batch reaction control, sterile environment monitoring, temperature/pressure regulation for fermentation processes, and recipe management adhering to GMP requirements.
- Metallurgy & Mining: Blast furnace control, steel rolling mill regulation, ore processing, and smelting operations, withstanding high-temperature, dusty, and vibrating conditions.
- Manufacturing & Food Processing: Continuous production line control, material handling, mixing/blending processes, and packaging line automation, ensuring consistent product quality and high throughput.
- Pulp & Paper: Digester control, bleaching processes, drying section regulation, and paper machine control, optimizing production efficiency and product uniformity.
