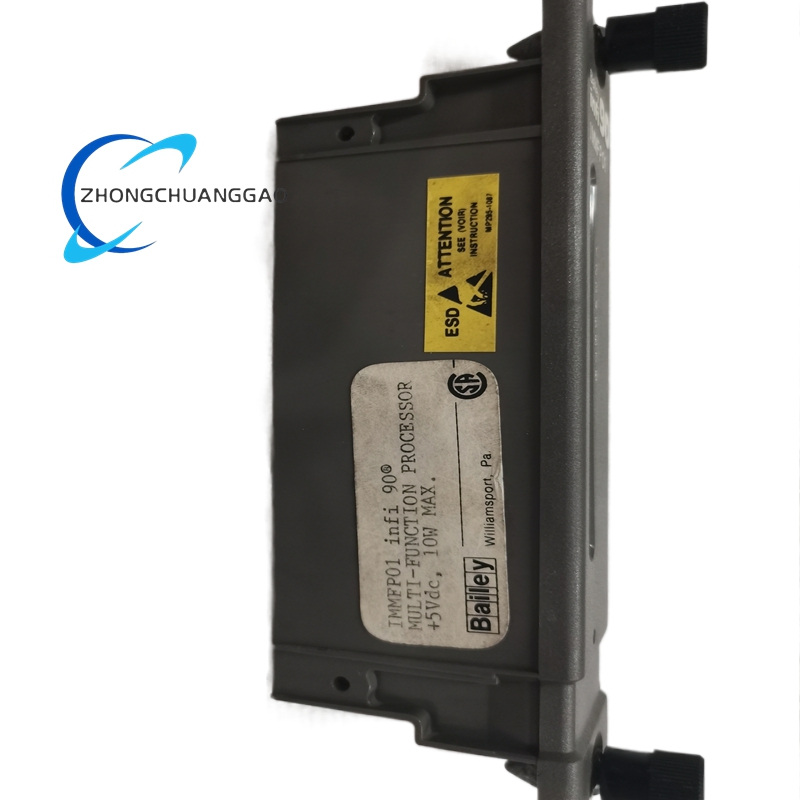

The ABB IMMFP01 is a high-performance, multi-function processor module serving as the core control unit within the ABB Bailey INFI 90 and Symphony Plus distributed control systems (DCS). It executes complex control strategies, manages data acquisition, and coordinates communication between field devices and the central control system. Engineered for reliability in mission-critical environments, it supports multi-loop analog/digital control, sequential control, batch processing, and advanced algorithms. With seamless integration into industrial automation architectures, it delivers deterministic performance, ensuring stable operation across diverse industrial sectors.
Description
Technical Specifications
表格
| Parameter | Value |
|---|---|
| Product Series | INFI 90 / Symphony Plus |
| Module Type | Multi-Function Processor |
| Processor | 32-bit Architecture, 16 MHz Clock Speed, 16-bit External Bus |
| Memory Configuration | 512 KB ROM, 256 KB RAM, 64 KB NVRAM |
| Power Supply | +5 VDC @ 2 A, Typical Power Consumption: 10 W |
| Communication Interfaces | 2× RS-232-C Ports or 1× RS-232-C + 1× RS-485 Ports |
| Max Communication Baud Rate | 19.2 kbaud (Serial); 1 Mbaud (Redundant Processor Link) |
| I/O Capacity | Support for Up to 64 Combined Analog/Digital I/O Modules |
| Station Support | 64× 40 kbaud Serial Stations (IISAC01); 8× 5 kbaud Serial Stations (NDCS03/NDIS01) |
| Redundancy | 1 Mbaud Redundant Communication Link for Bumpless Switchover |
| Operating Temperature | 0 °C to +70 °C (32 °F to 158 °F) |
| Storage Temperature | -25 °C to +85 °C |
| Relative Humidity | 5% to 95% (Non-Condensing, Up to 55 °C) |
| Physical Dimensions | 35.56 mm (W) × 177.80 mm (H) × 298.45 mm (L) |
| Weight | 0.5 kg (Approximate) |
| Certifications | CSA, Factory Mutual, Class I, Division 2 Rated |
| MTBF | >100,000 Hours |
Key Features
- High-Performance Processing: 32-bit processor with 16 MHz clock speed delivers robust real-time computation for complex control algorithms, including PID, fuzzy logic, and custom user-defined functions.
- Unified Control Capability: Integrates multi-loop analog control, sequential logic, batch processing, and advanced control strategies within a single module, reducing system complexity and improving integration.
- Massive I/O & Station Support: Connects to up to 64 I/O modules and supports multiple station types, enabling scalable system design for small to large-scale industrial processes.
- Redundant Communication: 1 Mbaud redundant link ensures bumpless switchover between primary and backup processors, eliminating downtime in critical applications.
- Dual Communication Ports: Flexible RS-232-C/RS-485 configurations support diverse communication needs, facilitating local programming, diagnostics, and peer-to-peer data exchange.
- Non-Volatile Memory Retention: 64 KB NVRAM preserves control logic and configuration during power loss, ensuring quick recovery and system continuity.
- Harsh Environment Tolerance: Operates reliably across 0–70 °C and 5–95% humidity, with CSA and Class I, Division 2 certification for safe use in explosive atmospheres.
- Integrated Diagnostics: Front-panel LEDs provide real-time status and fault indication, simplifying troubleshooting and reducing maintenance time.
- Multi-Language Programming: Supports C, BASIC, BATCH, ladder logic, and standard function codes, enabling flexible control strategy development tailored to specific process requirements.
Application Scenarios
The ABB IMMFP01 is widely deployed across industrial sectors requiring precise, reliable control:
- Oil & Gas: Reactor temperature/pressure control, pipeline regulation, wellhead monitoring, and offshore platform automation, ensuring safe and efficient operation in harsh environments.
- Power Generation & Distribution: Boiler control, turbine speed regulation, generator excitation, and substation auxiliary systems, supporting base-load and peaking power plant reliability.
- Chemical & Petrochemical: Distillation column optimization, polymerization reaction control, and safety instrumented systems (SIS) integration, complying with strict process safety standards.
- Water & Wastewater Treatment: Pump station control, aeration system regulation, and sludge dewatering processes, optimizing energy use and water quality.
- Pharmaceutical & Food & Beverage: Batch processing control, sterile environment monitoring, and recipe management, adhering to GMP and hygiene requirements.
- Metallurgy & Mining: Furnace temperature control, conveyor system automation, and ore processing regulation, withstanding high-temperature and high-dust conditions.
- Manufacturing & Material Handling: Assembly line control, robotic manipulator coordination, and conveyor belt speed regulation, ensuring high-throughput and precision.
