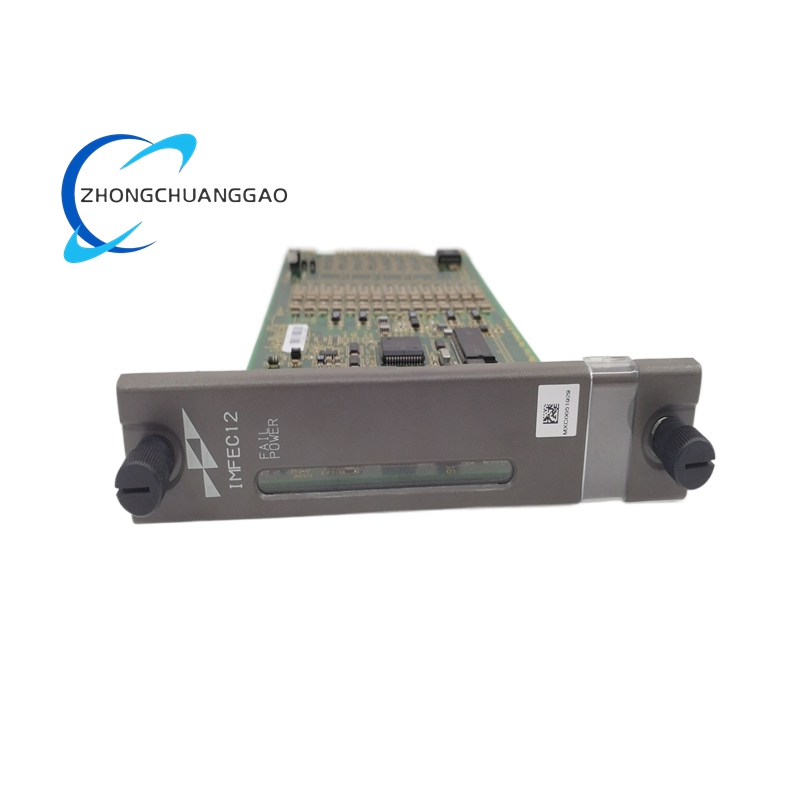

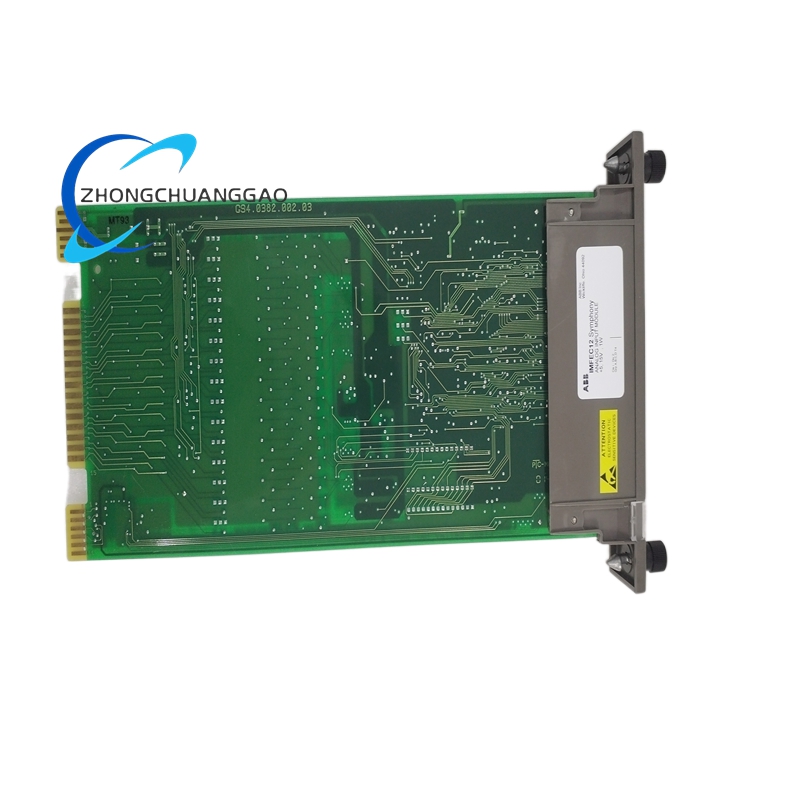

ABB IMFEC12 15‑Channel Analog Input Slave Module

Description

Technical Specifications

Core Identification

• Model: IMFEC12
• Product Type: 15‑Channel Analog Input Slave Module (AI Module)
• Compatible Systems: ABB Bailey INFI 90 DCS, ABB Symphony Plus Platform, Net 90 DCS
• Manufacturer: ABB (Bailey Controls)
• Form Factor: Standard INFI 90 rack‑mount module
• Weight: Approx. 0.3–0.48 kg

Input Characteristics

• Number of Input Channels: 15 independent, isolated analog input channels
• Supported Input Signals:
  • Current: 4–20 mA (standard industrial transmitter output)
  • Voltage: 1–5 VDC, 0–1 VDC, 0–5 VDC, 0–10 VDC, -10–+10 VDC
  • Millivolt: 0–100 mVDC, -100–+100 mVDC
• Input Isolation: Galvanic isolation between all channels and system backplane (≥1500 VDC)
• Measurement Accuracy: ±0.1% of full‑scale (FS) across all input ranges
• Resolution: 12‑bit analog‑to‑digital (A/D) conversion
• Update Rate: Programmable scan rates for individual channels, supporting high‑speed data acquisition

System Interface

• Controller Compatibility: Works with ABB INFI 90 Multi‑Function Processors (MFP) and Multi‑Function Controllers (MFC)
• Communication Protocol: INFI 90 Module Bus (parallel communication)
• Data Transfer: Real‑time digital data exchange with DCS controller; supports direct data mapping to controller memory
• Configuration: Configurable via ABB Control Builder software; supports channel‑by‑channel parameter setup
• Diagnostics: Built‑in self‑diagnostics, open‑circuit detection, and fault reporting to DCS controller

Power Requirements

• System Power Supply: +5 VDC (nominal), ±5% tolerance
• Auxiliary Power: Supports external 24 VDC for field transmitter power (where applicable)
• Power Consumption: ≤3 W (typical)

Mechanical & Environmental

• Mounting: Standard INFI 90 19‑inch rack mounting; compatible with NTAI05/NIAI04 termination panels
• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5–95% RH, non‑condensing
• Vibration/Shock: Complies with IEC 60068‑2‑6 (vibration) and IEC 60068‑2‑27 (shock)
• Protection Rating: IP20 (terminal block and module housing)
• LED Indicators: Module status LEDs for power, communication, and fault conditions

Certifications

• CE Marking
• UL Listed (Industrial Control Equipment)
• EMC compliance per IEC 61000‑6‑2 / IEC 61000‑6‑4
• Complies with IEC 61010‑1 safety standards

Key Features

15‑Channel High‑Density Analog Input

• Provides 15 independent analog input channels in a single compact module, maximizing I/O density and minimizing rack space usage.
• Supports all standard industrial analog signal types (4–20 mA, 1–5 VDC, millivolts), eliminating the need for multiple specialized modules.
• Channel‑by‑channel configurable input ranges allow flexible adaptation to diverse field sensor requirements.

Superior Signal Isolation & Noise Immunity

• Full galvanic isolation between all input channels and the system backplane prevents ground loops and cross‑channel interference.
• Advanced filtering and signal conditioning ensure accurate data acquisition even in electrically noisy industrial environments (e.g., near motors, drives, and high‑voltage equipment).
• Open‑circuit detection on each channel enables immediate fault identification and reduces downtime.

High‑Precision Signal Conversion

• Delivers industry‑leading measurement accuracy of ±0.1% FS, ensuring reliable process control and data integrity.
• 12‑bit A/D conversion provides fine‑grained digital representation of analog signals, supporting precise control algorithms.
• Programmable scan rates optimize data acquisition speed for both fast‑changing and slow‑varying process variables.

Seamless DCS Integration

• Native compatibility with ABB INFI 90 and Symphony Plus DCS platforms enables plug‑and‑play installation.
• Direct communication with MFP/MFC controllers via the INFI 90 Module Bus ensures low‑latency data transfer.
• Fully configurable through standard ABB engineering tools, simplifying system commissioning and maintenance.

Robust Industrial Design

• Wide operating temperature range (-20 °C to +70 °C) and rugged construction ensure stable performance in harsh industrial environments.
• Hot‑swap capability (in supported system configurations) allows module replacement without shutting down the entire DCS, minimizing maintenance downtime.
• Built‑in self‑diagnostics continuously monitor module health and provide real‑time fault alerts to the control system.

Flexible Configuration & Scalability

• Supports individual channel configuration for input type, range, and filtering, adapting to diverse process measurement needs.
• Scalable design allows deployment of multiple IMFEC12 modules to expand analog input capacity as system requirements grow.
• Compatible with standard INFI 90 termination panels (NTAI05, NIAI04) for easy field wiring and installation.

Application Scenarios

Power Generation

• Thermal Power Plants: Monitoring boiler temperature, steam pressure, feedwater flow, and turbine vibration; closed‑loop control of combustion and steam systems.
• Nuclear Power Facilities: Precise measurement of reactor coolant temperature, pressure, and flow; safety system monitoring and interlock signals.
• Renewable Energy: Monitoring solar array voltage/current, wind turbine gearbox temperature, and hydroelectric penstock pressure; grid integration parameter measurement.

Oil & Gas Industry

• Upstream Operations: Wellhead pressure, temperature, and flow measurement; pipeline monitoring and leak detection; compressor station process control.
• Refineries: Distillation column temperature/pressure monitoring, reactor feed flow control, and product quality analysis; flare gas and emissions monitoring.
• LNG Facilities: Cryogenic temperature measurement, liquefaction process pressure control, and storage tank level monitoring.

Chemical & Petrochemical Processing

• Continuous Processes: Reactor temperature/pressure control, chemical dosing flow measurement, and pH monitoring; catalyst regeneration system monitoring.
• Batch Processing: Precise measurement of batch parameters (temperature, pressure, level) for pharmaceutical and specialty chemical production.
• Hazardous Areas: Safe measurement of process variables in Class I, Division 2 hazardous locations with certified isolation and protection.

Metals & Mining

• Smelting & Refining: Furnace temperature control, molten metal level measurement, and exhaust gas analysis; rolling mill process parameter monitoring.
• Mining Operations: Conveyor belt speed feedback, slurry flow measurement, and ore crusher load monitoring; mine ventilation system control.
• Steel Mills: Continuous casting temperature monitoring, strip tension measurement, and cooling water flow control.

Water & Wastewater Treatment

• Municipal Water Plants: Raw water intake flow measurement, filtration pressure monitoring, and disinfection chemical dosing control.
• Wastewater Facilities: Aeration tank dissolved oxygen (DO) measurement, sludge level monitoring, and effluent quality analysis.
• Desalination Plants: Reverse osmosis membrane pressure monitoring, brine flow measurement, and energy recovery system control.

Manufacturing & Factory Automation

• Automotive Production: Paint booth temperature/humidity monitoring, assembly line pressure control, and robotic arm position feedback.
• Food & Beverage: Pasteurization temperature control, liquid level measurement, and packaging line pressure monitoring; compliance with food safety standards.
• Electronics Manufacturing: Cleanroom environmental monitoring, semiconductor processing temperature control, and chemical supply flow measurement.

Pulp & Paper Industry

• Pulp Production: Digester temperature/pressure control, liquor flow measurement, and bleaching process parameter monitoring.
• Paper Machines: Dryer cylinder temperature control, sheet moisture measurement, and vacuum system pressure monitoring.
