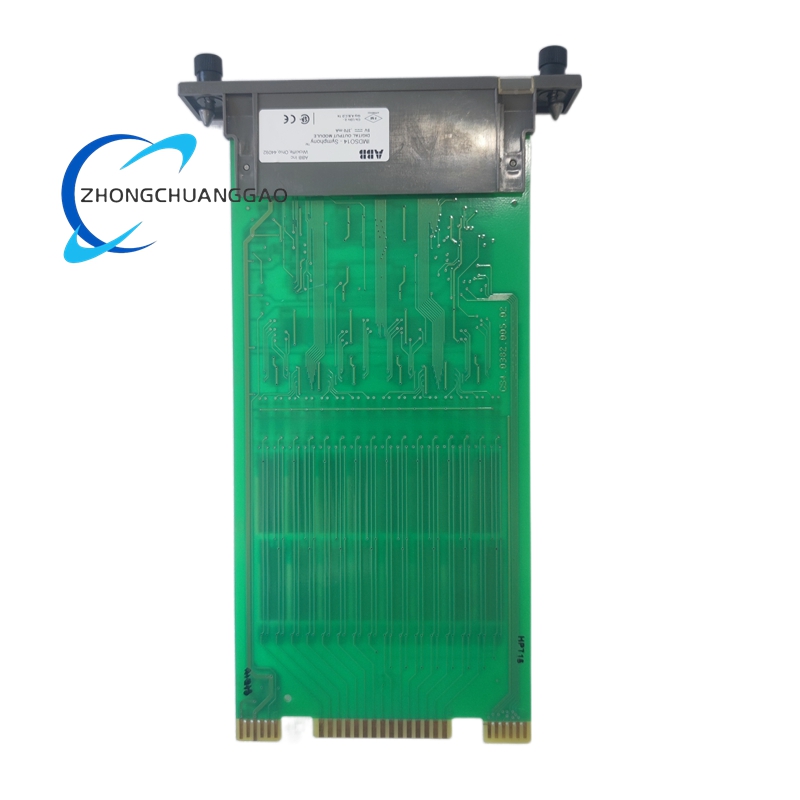

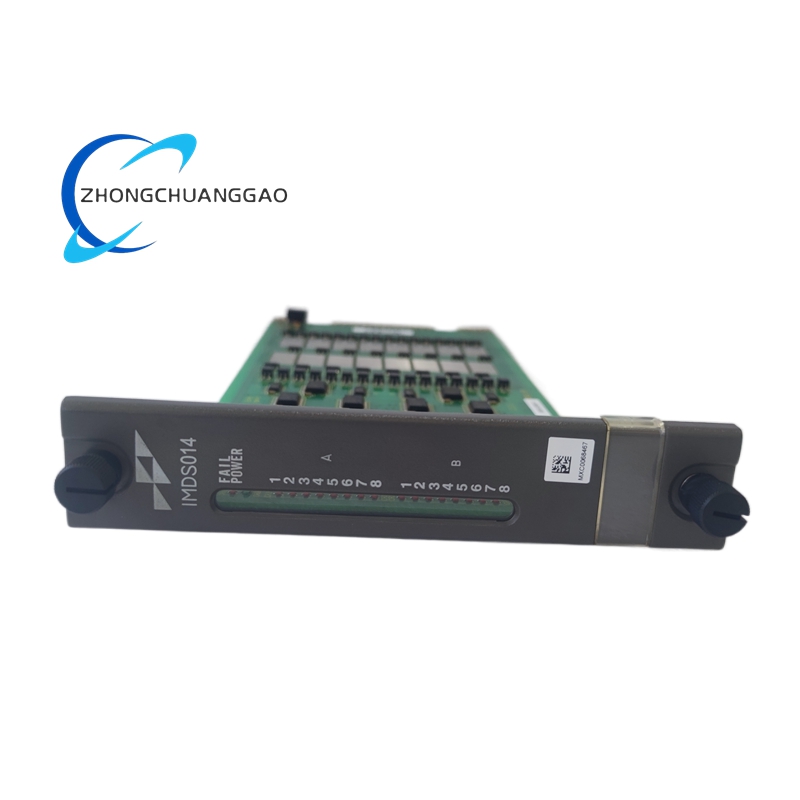

ABB IMDSO14 16-Channel Digital Slave Output Module

Description

Technical Specifications

Core Identification

• Model: IMDSO14
• Product Type: 16-Channel Digital Slave Output Module (DO Module)
• Compatible Systems: ABB Bailey INFI 90 DCS, ABB Symphony Plus Platform, partial DS series control systems
• Manufacturer: ABB (Bailey Controls)
• Country of Origin: Sweden
• Form Factor: Standard INFI 90 module size for chassis mounting

Output Characteristics

• Number of Output Channels: 16 independent, isolated digital output channels
• Output Type: Relay contact output (configurable for normally open/closed via software)
• Output Voltage Range: 24–230 V DC/AC (wide voltage compatibility)
• Output Current Capacity: 370 mA per channel (sufficient to drive most industrial actuators)
• Isolation: Photoelectric isolation between channels and system backplane to prevent cross-interference
• Output Modes: Programmable (latching, transient, PWM) for flexible control of different field devices

Power Requirements

• Auxiliary Power Supply: 24 V DC (nominal), compatible with 20.4–28.8 V DC operating range
• Power Consumption: ≤10 W (low-power design to reduce overall system energy consumption)
• Protection: Integrated overvoltage, overcurrent, and short-circuit protection per channel

Communication Interface

• Communication Protocol: ABB INFI 90 proprietary protocol
• Data Transfer: High-speed digital communication with the DCS controller via the INFI 90 Module Bus and Controlway network
• Configuration: Support for remote parameterization and configuration via ABB Control Builder M software
• Diagnostics: Real-time fault reporting and status feedback to the DCS controller

Mechanical & Environmental

• Mounting: Compatible with ABB IEMMU series module mounting units (19-inch rack)
• Dimensions: 304.8 mm (H) × 50.8 mm (W) × 177.8 mm (D)
• Net Weight: Approx. 0.45 kg
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5–95% RH, non-condensing
• Vibration/Shock: Complies with IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock)
• Protection Rating: IP20 (terminal block and module housing)
• LED Indicators: Per-channel LED status indicators for real-time output monitoring

Certifications

• CE Marking
• UL Listed (Industrial Control Equipment)
• ISO 9001 Quality Certification
• EMC compliance per IEC 61000-6-2 / IEC 61000-6-4
• Complies with IEC 61010-1 safety standards

Key Features

16-Channel High-Density Output

• 16 independent digital output channels in a single compact module maximize system density, reducing the number of modules required for large-scale control applications.
• Each channel supports both DC and AC loads (24–230 V), eliminating the need for separate modules for different voltage types and simplifying system design.

Robust Isolation & Protection

• Photoelectric isolation between channels prevents cross-interference and ground loops, ensuring signal integrity in electrically noisy industrial environments (e.g., near motors, drives, and high-voltage equipment).
• Integrated overcurrent, short-circuit, and overvoltage protection per channel safeguards the module and connected field devices from damage, minimizing downtime.

Flexible Configuration & Control

• Programmable output modes (latching, transient, PWM) allow customization for diverse control tasks, from simple on/off control to motor speed regulation via PWM signals.
• Software-configurable normally open/closed relay contacts adapt to different field device requirements without hardware modifications.

Seamless DCS Integration

• Native compatibility with ABB INFI 90 DCS and Symphony Plus platforms, enabling plug-and-play integration with INFI 90 controllers (e.g., IMMFP11/12) and other I/O modules.
• Supports high-speed communication with the DCS controller, ensuring real-time execution of control commands and status feedback.

Hot-Swap & Easy Maintenance

• Hot-swap capability allows module replacement without shutting down the entire DCS system, significantly reducing maintenance downtime and improving operational efficiency.
• Per-channel LED indicators provide instant visual feedback on output status, simplifying troubleshooting and fault localization during commissioning and maintenance.

Industrial-Grade Reliability

• Wide operating temperature range (-20 °C to +60 °C) and rugged construction ensure stable performance in harsh industrial environments, including high humidity, dust, and vibration.
• Low-power design reduces energy consumption and extends the service life of both the module and the overall control system.

Application Scenarios

Power Generation

• Fossil Fuel Power Plants: Control of boiler feedwater valves, turbine bypass valves, cooling water pumps, and auxiliary system motors.
• Nuclear Power Facilities: Safety-related control of reactor coolant system valves, emergency shutdown actuators, and ventilation systems.
• Renewable Energy: Control of wind turbine pitch actuators, solar PV inverter switches, and hydroelectric penstock valves; monitoring of grid connection switches.

Oil & Gas Industry

• Upstream Operations: Control of wellhead valves, pumping stations, and pipeline flow control actuators; monitoring of emergency shutdown systems (ESD).
• Refineries: Control of distillation column valves, reactor feed pumps, and heating system actuators; batch process management for refining operations.
• LNG Facilities: Control of cryogenic valves, compressor motors, and storage tank level control actuators.

Chemical & Petrochemical Processing

• Continuous Processes: Control of reactor feed valves, 搅拌 motors, and chemical dosing pumps; monitoring of process interlock actuators.
• Batch Processing: Precise control of pharmaceutical and specialty chemical production equipment, ensuring compliance with strict quality standards.
• Hazardous Areas: Control of explosion-proof actuators in Class I, Division 2 hazardous locations, ensuring safe and reliable operation.

Metals & Mining

• Smelting & Refining: Control of furnace temperature control valves, molten metal transfer pumps, and exhaust system actuators.
• Mining Operations: Control of conveyor belt motors, ore crusher actuators, and slurry pump switches; monitoring of mine safety interlocks.
• Steel Mills: Control of rolling mill actuators, cooling water valves, and strip tension control devices.

Water & Wastewater Treatment

• Municipal Water Plants: Control of filtration system valves, water pump motors, and disinfection chemical dosing actuators.
• Wastewater Facilities: Control of aeration blowers, sludge pumps, and clarifier valves; automation of sewage treatment processes.
• Desalination Plants: Control of reverse osmosis membrane valves and brine discharge pumps.

Manufacturing & Factory Automation

• Automotive Production: Control of assembly line conveyors, robotic arm actuators, and painting equipment switches.
• Food & Beverage: Control of packaging machines, filling equipment, and sterilization system actuators; ensuring consistent product quality.
• Electronics Manufacturing: Control of PCB assembly line equipment, component placement machines, and testing station actuators.

Building Automation & Infrastructure

• Commercial Buildings: Control of HVAC system dampers, chiller motors, and lighting switches; integration with building management systems (BMS).
• Infrastructure: Control of elevator systems, ventilation fans, and security door actuators in public facilities and industrial buildings.

Marine & Offshore

• Shipboard Automation: Control of engine exhaust valves, fuel pump actuators, and ballast tank level control devices.
• Offshore Platforms: Control of drilling equipment actuators, production vessel valves, and emergency response systems.
• FPSO Vessels: Control of cargo loading/unloading valves, storage tank actuators, and offshore process equipment.
