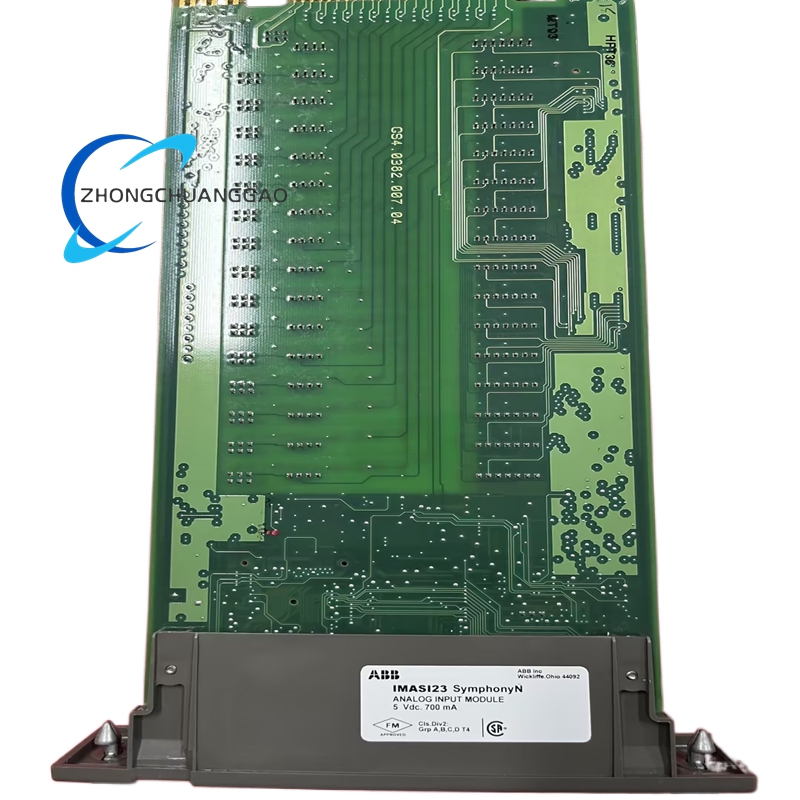

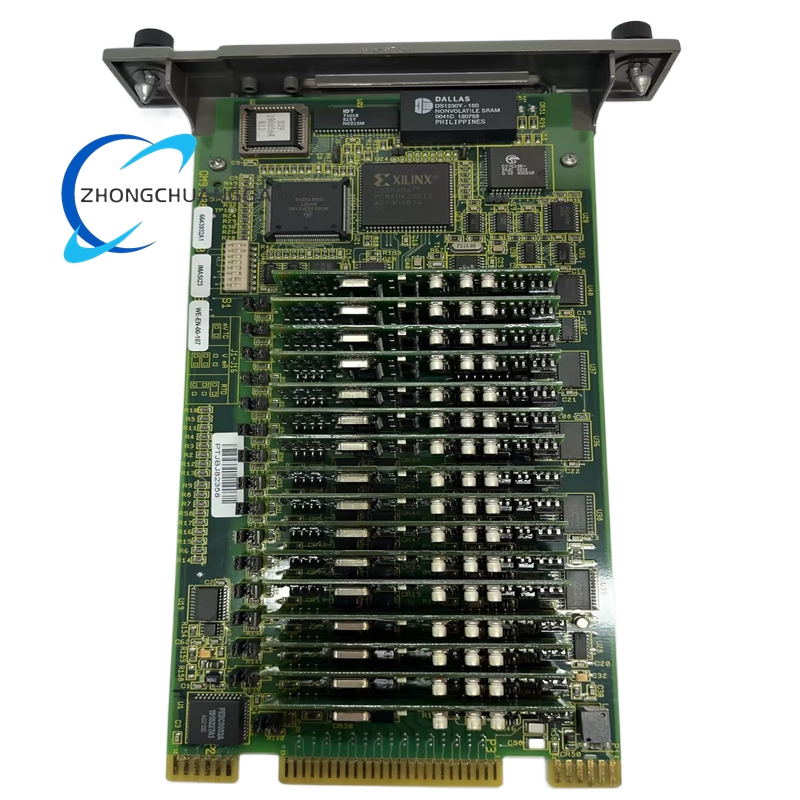

ABB IMASI23 16‑Channel Universal Analog Input Slave Module

Description

Technical Specifications

Core Identification

• Model: IMASI23
• Product Type: Universal Analog Input Slave Module
• Compatible Systems: ABB Symphony Harmony INFI 90 DCS
• Manufacturer: ABB (Bailey Controls)
• Country of Origin: Sweden

Input Configuration

• Input Channels: 16 independent, isolated analog input channels
• Supported Input Types:
  • Voltage: 0–10 V DC, ±10 V DC
  • Current: 4–20 mA, 0–20 mA
  • Thermocouples (TC): Types B, E, J, K, L, N, R, S, T, U
  • Resistance Temperature Detectors (RTD): 3‑wire RTD (Pt100, Cu100, Ni100)
  • Millivolt: 100 mV to 10 V DC
• Resolution: 16‑bit high‑resolution analog‑to‑digital conversion
• Accuracy: ±0.1% of full scale (FS) for all input types
• Isolation: 2500 V AC RMS galvanic isolation between channels and system backplane
• Sampling Rate: Fast update rate for real‑time process monitoring

Power Requirements

• Auxiliary Power: 24 V DC (nominal), range 20.4–28.8 V DC
• Power Consumption: Low power design, typically < 5 W
• Overload Protection: Integrated overvoltage and overcurrent protection for each channel

Communication Interface

• Protocol: Compatible with INFI 90 Module Bus and Controlway communication
• Data Transfer: High‑speed digital data transmission to the DCS controller
• Diagnostics: Built‑in self‑diagnostics and status reporting for fault detection

Mechanical & Environmental

• Form Factor: Standard INFI 90 module size for mounting in IEMMU series chassis
• Mounting: Compatible with IEMMU21/IEMMU22 module mounting units (19‑inch rack)
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5–95% RH, non‑condensing
• Vibration/Shock: Complies with IEC 60068‑2‑6 (vibration) and IEC 60068‑2‑27 (shock)
• Protection Rating: IP20 (terminal block)
• Weight: Approx. 1.0 kg

Certifications

• CE Marking
• UL Listed (Industrial Control Equipment)
• Complies with IEC 61010‑1 safety standards
• EMC compliance per IEC 61000‑6‑2 / 61000‑6‑4

Key Features

16‑Channel Universal Input Flexibility

• Accommodates 16 independent analog inputs in a single module, maximizing system density.
• Supports all major industrial analog signal types without external signal conditioning.
• Per‑channel software configuration for input type, range, and filtering, eliminating hardware changes.

High‑Precision Signal Conversion

• Delivers ±0.1% FS measurement accuracy for critical process parameter monitoring.
• 16‑bit resolution ensures fine‑grained data capture for precise control decisions.
• Fast sampling and update rates enable real‑time response to dynamic process changes.

Robust Galvanic Isolation

• 2500 V AC RMS channel‑to‑channel and channel‑to‑backplane isolation.
• Eliminates ground loops, reduces electrical noise, and protects the DCS from field‑side faults.
• Ensures signal integrity in electrically noisy industrial environments.

Seamless DCS Integration

• Native compatibility with ABB Symphony Harmony INFI 90 DCS platforms.
• Plugs directly into INFI 90 I/O chassis (IEMMU21/IEMMU22) for easy installation.
• Integrates with INFI 90 control processors via the Module Bus and Controlway network.

Advanced Diagnostics & Reliability

• Built‑in self‑diagnostics monitor channel health, power status, and communication integrity.
• Provides real‑time fault alerts and status indicators for proactive maintenance.
• Industrial‑grade construction withstands extreme temperatures, vibration, and electrical interference.

Scalable & Modular Design

• Hot‑swap capability allows module replacement without system shutdown.
• Supports system expansion by adding multiple IMASI23 modules to the DCS configuration.
• Works in conjunction with other INFI 90 I/O modules for a complete, distributed control solution.

Application Scenarios

Power Generation

• Fossil Fuel Plants: Monitor boiler temperature, pressure, steam flow, and turbine vibration.
• Nuclear Facilities: Safety‑related parameter monitoring for reactor coolant systems and containment.
• Renewable Energy: Solar PV array temperature, wind turbine gearbox oil temperature, and hydroelectric penstock pressure monitoring.

Oil & Gas Industry

• Upstream Operations: Wellhead pressure, temperature, and flow rate monitoring.
• Refineries: Distillation column temperature, reactor pressure, and pipeline flow control.
• LNG Facilities: Cryogenic temperature monitoring and compressor vibration analysis.

Chemical & Petrochemical Processing

• Continuous Processes: Reactor temperature, pH, pressure, and feedstock flow monitoring.
• Batch Processing: Pharmaceutical and specialty chemical reaction parameter control.
• Hazardous Areas: Monitoring of explosive‑atmosphere process variables in compliance with safety standards.

Metals & Mining

• Smelting & Refining: Furnace temperature, molten metal level, and exhaust gas analysis.
• Mining Operations: Conveyor belt speed, ore crusher vibration, and slurry flow monitoring.
• Steel Mills: Rolling mill temperature, strip tension, and cooling water flow control.

Water & Wastewater Treatment

• Municipal Water Plants: Filter pressure, water flow, pH, and disinfection chemical dosage monitoring.
• Wastewater Facilities: Aeration tank dissolved oxygen, sludge level, and effluent quality control.
• Desalination Plants: Reverse osmosis membrane pressure and brine flow monitoring.

Pulp & Paper Manufacturing

• Paper Machines: Dryer cylinder temperature, stock consistency, and steam pressure control.
• Pulp Mills: Digester temperature, liquor concentration, and bleaching chemical flow monitoring.
• Recycle Lines: Deinking process pH and fiber consistency measurement.

Food & Beverage Production

• Continuous Processing: Brewery fermentation temperature, dairy pasteurization temperature, and soft drink carbonation pressure.
• Packaging Lines: Filling machine level, sealing temperature, and conveyor speed monitoring.
• Quality Control: Product temperature, pH, and viscosity measurement for compliance with food safety standards.

Marine & Offshore

• Shipboard Automation: Engine exhaust temperature, fuel pressure, and ballast tank level monitoring.
• Offshore Platforms: Process vessel pressure, temperature, and flow control for drilling and production.
• FPSO Vessels: Cargo tank level, temperature, and pressure monitoring for floating production operations.
