Product Short Description
Product Introduction

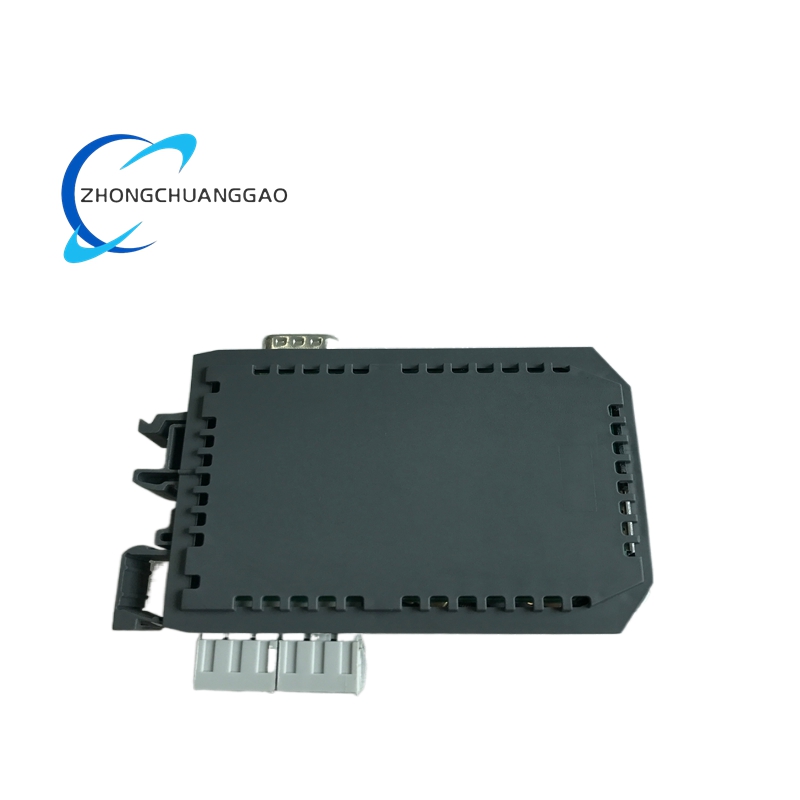

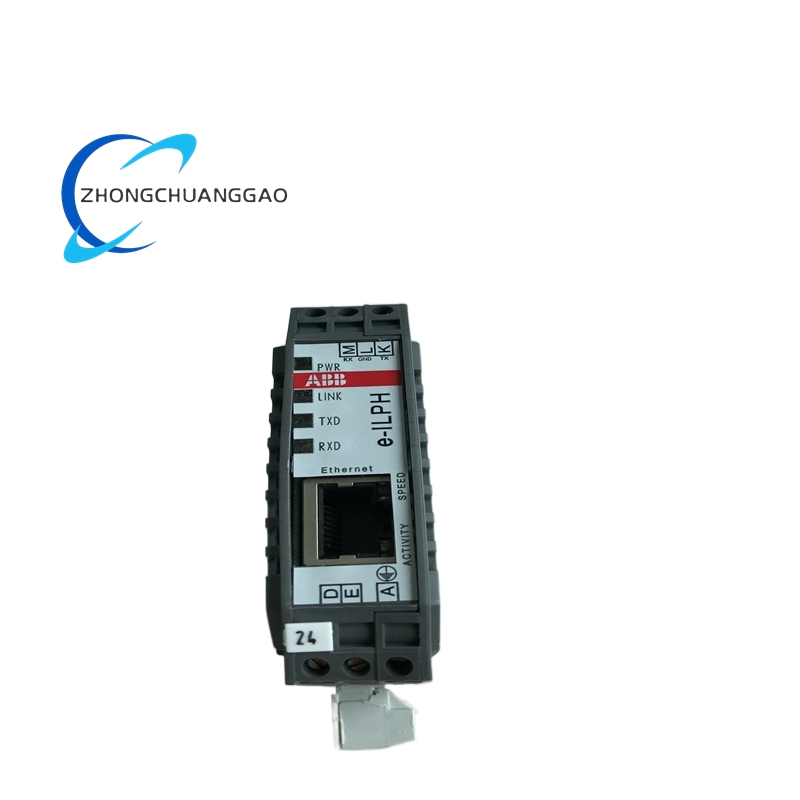

The ABB ILPH RS232/485 to Ethernet Converter is a high-performance industrial communication gateway designed to establish seamless data connectivity between serial-based devices and modern Ethernet networks. It serves as a critical bridge, converting RS232/RS485 serial signals into Ethernet signals, enabling legacy serial equipment to integrate smoothly into IP-based industrial networks. This module supports multiple operation modes and protocol conversions, delivering reliable, secure, and flexible data transmission for industrial automation systems. It features industrial-grade construction with full galvanic isolation, ensuring stable performance in harsh industrial environments.
Description
Technical Specifications
- Product Series: ABB MINI MCR SL Series
- Communication Interfaces:
- Serial Interface: RS232 (9-pin D-Sub / screw terminals) & RS485
- Ethernet Interface: 10/100 Mbps RJ45 port, compliant with 10/100Base-TX standard
- Supported Protocols:
- Serial: Modbus RTU, Modbus ASCII, custom serial protocols
- Ethernet: Modbus TCP, TCP/IP, TELNET, DHCP, FTP
- Data Transfer Parameters:
- Serial Baud Rate: Up to 115.2 kbps
- Ethernet Speed: 10/100 Mbps auto-negotiation
- Power Supply:
- Input Voltage: 10-34 VDC, 10-24 VAC
- Redundant Power Supply: Supports redundant 10-34 VDC power input
- Power Consumption: Low power consumption design
- Isolation:
- Triple Galvanic Isolation: Full isolation between serial side, Ethernet side, and power supply circuits
- Physical Characteristics:
- Dimensions: 22.5 mm (W) x 100 mm (H) x 62 mm (D)
- Weight: Approximately 0.34 kg
- Mounting: Standard 35 mm DIN rail mounting
- Protection Rating: IP20
- Environmental Ratings:
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH (non-condensing)
- EMC Compliance: Complies with industrial EMC standards
- Corrosion Resistance: Suitable for G3 harsh industrial environments
Key Functional Features
- Multi-Mode Operation: Supports three flexible operating modes to adapt to diverse application requirements:
- Modbus Conversion: Converts Modbus TCP to Modbus RTU/ASCII, supporting up to 2 Modbus TCP masters
- Transparent Transmission: Operates as a serial server or client for direct serial data tunneling
- SMTP Mode: Enables email alerting for event-based notifications
- Triple Galvanic Isolation: Provides complete electrical isolation between serial, Ethernet, and power circuits, effectively eliminating ground loops, electrical noise, and voltage surges, protecting connected devices and ensuring data integrity.
- Wide Protocol Compatibility: Supports mainstream industrial protocols including Modbus RTU/TCP and custom serial protocols, ensuring compatibility with a vast range of PLCs, HMIs, sensors, and other field devices.
- Flexible Serial Connectivity: Offers both RS232 (via D-Sub or screw terminals) and RS485 interfaces, accommodating various legacy serial equipment without additional adapters.
- High-Speed & Reliable Communication: Delivers fast serial baud rates up to 115.2 kbps and 10/100 Mbps Ethernet, ensuring real-time and efficient data exchange with high transmission stability.
- Redundant Power Supply: Features dual power input support for redundant power configurations, minimizing the risk of communication failure due to power loss.
- Plug-and-Play Configuration: Requires no additional software for basic setup; configuration is simplified via IP address setup, reducing commissioning time and complexity.
- Compact & Robust Design: Space-saving slim module design with industrial-grade build quality, optimized for high-density installation in control cabinets and reliable operation in demanding industrial conditions.
Application Scenarios
The ABB ILPH RS232/485 to Ethernet Converter is widely applied across industries to modernize legacy systems and enable networked communication. Key application areas include:
- Industrial Automation Systems:
- Connecting legacy serial PLCs, drives, and HMIs to Ethernet-based control networks
- Integrating serial instruments (meters, sensors, analyzers) into modern SCADA systems
- Retrofit projects for upgrading old production lines to IP-based communication
- Manufacturing & Processing:
- Data acquisition from serial-based production equipment in automotive, electronics, and machinery manufacturing
- Communication gateway for packaging machines, material handling systems, and quality control devices
- Process Industries:
- Oil & Gas: Connecting wellhead monitors, flow meters, and valve controllers to central control systems
- Chemical & Pharmaceutical: Data transmission from serial process analyzers and safety instruments
- Water & Wastewater: Integration of pump controllers, water quality sensors, and metering devices
- Building & Infrastructure:
- Building management systems (BMS): Connecting serial HVAC controllers, lighting systems, and energy meters
- Smart infrastructure: Remote monitoring of utility meters, traffic control systems, and security devices
- Power & Energy:
- Power distribution: Communication with serial protection relays, meters, and switchgear controllers
- Renewable energy: Data exchange with solar inverter and wind turbine serial monitoring systems
- Marine & Offshore:
- Shipboard automation: Networking serial engine controls, navigation instruments, and auxiliary systems
- Offshore platforms: Reliable communication for remote monitoring of subsea and topside equipment
