Product Short Description
Technical Specifications

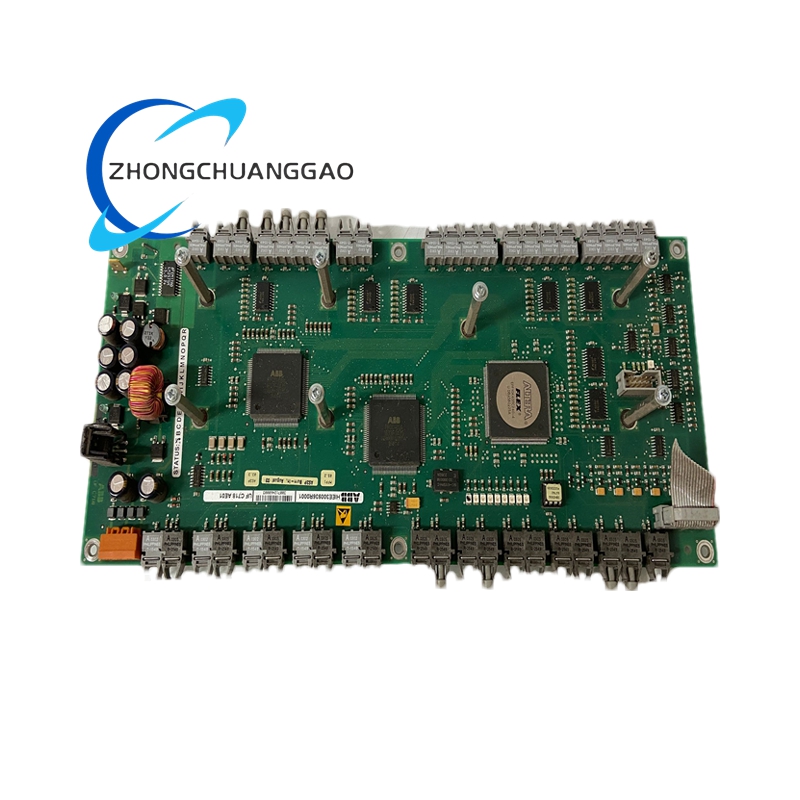

- Model: HIEE300936R0001 UFC718AE01
- Brand: ABB
- Type: Gate drive unit for IGBT modules
- Input Voltage: 24 V DC (±10%)
- Output Current: Up to 15 A (peak)
- Switching Frequency: Supports up to 20 kHz
- Protection Features: Overvoltage, undervoltage, and overcurrent protection
- Isolation Voltage: 4 kV (between input and output)
- Operating Temperature: -40°C to +85°C
- Dimensions: Compact design for easy integration into power electronics systems
- Certifications: CE, UL, RoHS
Description
Functional Characteristics
- Precise Gate Control: Ensures optimal IGBT switching for reduced losses and improved efficiency.
- High Isolation: Provides electrical isolation between control and power circuits for safety.
- Fast Response: Enables high-speed switching for dynamic applications.
- Built-in Protection: Safeguards against voltage spikes, current surges, and thermal overload.
- Compact Design: Space-saving form factor for dense power electronics assemblies.
Application Scenarios
- Motor Drives: Used in variable frequency drives (VFDs) for industrial motors.
- Renewable Energy: Controls power conversion in solar inverters and wind turbine converters.
- Traction Systems: Manages IGBT switching in electric vehicle (EV) and rail traction drives.
- High-Power Industrial Systems: Supports power conversion in mining, oil & gas, and steel mill applications.
Key Advantages
- High Reliability: Designed for harsh industrial environments with robust protection features.
- Energy Efficiency: Reduces switching losses to improve overall system performance.
- Scalability: Compatible with a wide range of IGBT modules for flexible system design.
