Product Overview

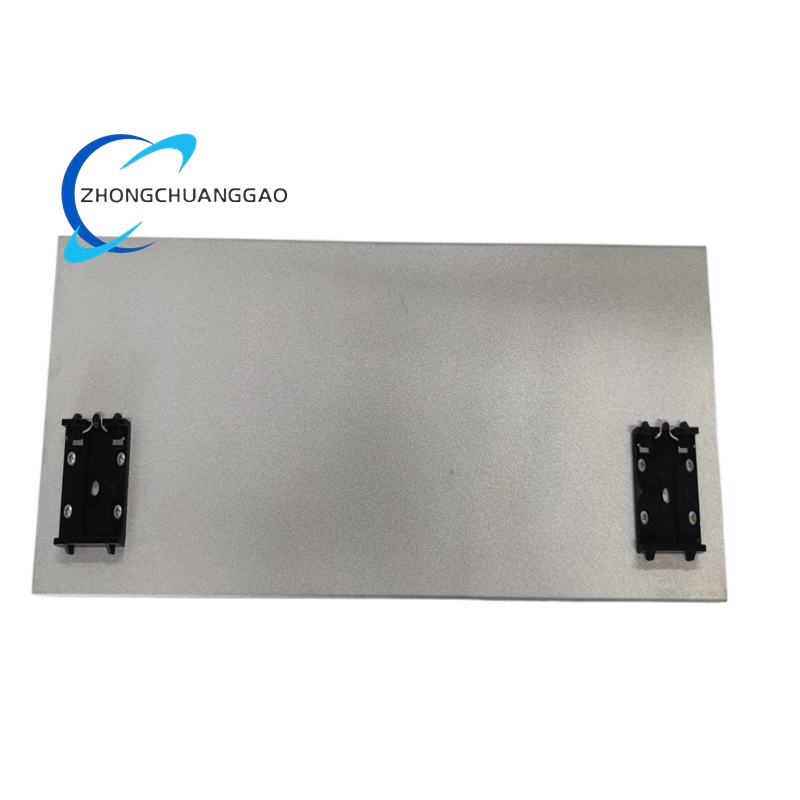

The ABB HIEE200038R0001 is a versatile and multifunctional industrial automation module designed for integration into complex control systems . This component, part of ABB’s extensive I/O and interface module family, serves a variety of roles within Distributed Control Systems (DCS), Programmable Logic Controller (PLC) systems, and other industrial automation architectures . It is engineered to provide reliable connectivity, signal conversion, and control functions, acting as a critical link between field devices and central controllers in demanding industrial environments .
Description
Technical Specifications
The technical specifications for the ABB HIEE200038R0001 vary depending on its configured function. The following consolidated parameters are compiled from multiple sources detailing its different roles :
| Parameter | Specification |
|---|---|
| Product Type | Multifunctional I/O / Interface Module |
| Manufacturer | ABB |
| Primary Applications | Relay Interface, Communication Module (Modbus TCP/IP, PROFIBUS DP), Power Supply, Gas Analyzer Interface, Controller Interface, PROFIBUS DP Slave |
| Operating Temperature | -40°C to +85°C (varies by source/function: -20°C to +70°C, -10°C to +50°C also cited) |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 (indoor use) ; Higher ratings up to IP67 cited for some configurations |
| Dimensions (approx.) | Highly variable: 90mm x 60mm x 30mm; 150 mm x 100 mm; 225 mm x 121.5 mm x 50 mm; 115 x 80 x 35 mm |
| Weight | Variable: approx. 840g; 0.48 kg; 500 g; 1.2 kg; 2.5 kg |
| Mounting | DIN Rail or Panel Mount |
| Housing Material | Aluminum alloy or metal |
Functional Configuration Specifications
| Function | Specification |
|---|---|
| As a Relay Interface Board | 8-16 electromechanical relays; Contact forms: NO, NC; LED status indicators; Input current: 15mA; Output current: 3A |
| As a Power Supply Module | Input Voltage: 100-240V AC; Output Voltage: 24V DC; Max Output Current: 10A |
| As a PROFIBUS DP Slave Module | Protocol: PROFIBUS DP; Slave ID: 0 to 31; Baud Rate: Up to 12 Mbps; I/O Points: 32 (16 DI, 16 DO) |
| As a Communication Module (Gas Analyzer) | Interface: Modbus TCP/IP; Baud Rates: 1000 to 115200; Data bits: 8; Parity: None; Stop bits: 1 |
| As a Communication Module (General) | Interface: RS485; Protocols: Modbus TCP/IP |
| As a Sensor/Controller Interface | Measurement Range: 0-100 MPa; Accuracy: 0.5% to ±0.1% |
Key Features and Advantages
The ABB HIEE200038R0001 is distinguished by its multifunctional capabilities and robust design, engineered for flexible integration into diverse industrial control systems.
Multifunctional Versatility
The module’s primary advantage is its ability to serve multiple roles within an automation system . This versatility reduces the need for multiple specialized modules, simplifying inventory and system design. It can act as a relay interface for controlling external devices, a PROFIBUS DP slave for network communication, a power supply for other system components, or a Modbus TCP/IP interface for gas analyzers and other instrumentation .
Relay Interface and Signal Conversion
As a relay interface board, the module provides reliable switching and isolation between the low-voltage control system and high-power field devices . Key features in this role include:
-
Signal Conversion: Converts digital control signals into relay contact closures for operating motors, valves, solenoids, and other actuators .
-
Electrical Isolation: Provides galvanic isolation between input and output circuits, protecting sensitive control electronics from voltage spikes and ground loops in the field .
-
High-Current Switching: Capable of switching loads up to 3A, suitable for direct control of many industrial devices .
-
Visual Status Indication: Equipped with multiple LEDs that clearly indicate the status of the power supply, incoming signals, and individual relay activation, enabling rapid on-site troubleshooting .
Flexible Communication and Network Integration
The module supports multiple industrial communication protocols, ensuring seamless integration into both new and legacy automation systems :
-
PROFIBUS DP Slave: Functions as a slave device on a PROFIBUS DP network, connecting controllers like the AC800F to field-level I/O and devices .
-
Modbus TCP/IP Interface: Acts as a gateway for devices such as gas analyzers, enabling data exchange with DCS, PLC, and SCADA systems over standard Ethernet networks .
-
RS485 Communication: Provides a robust serial communication interface for connecting to various industrial devices over longer distances .
