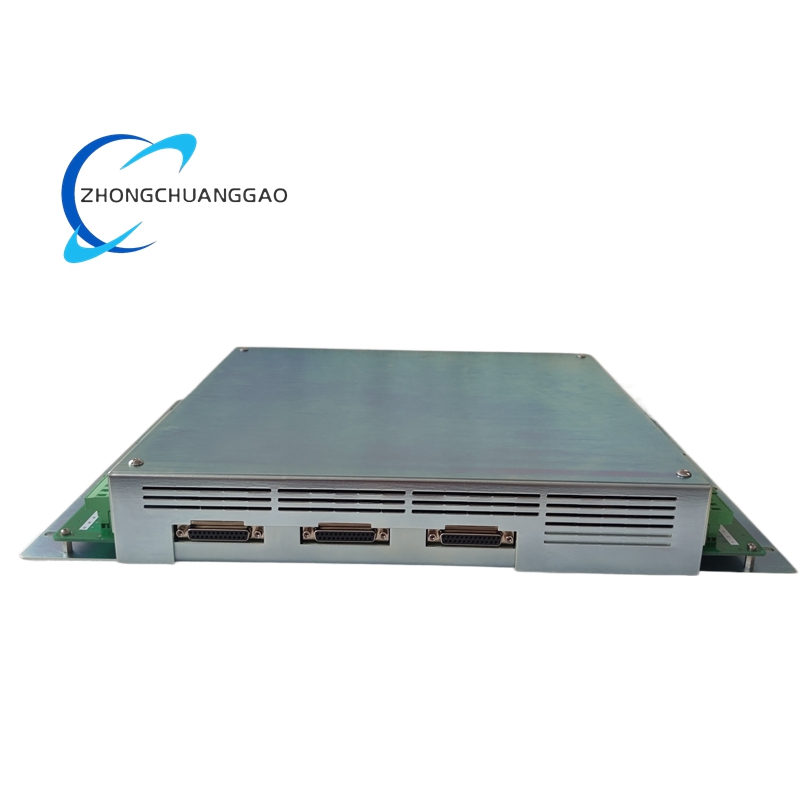

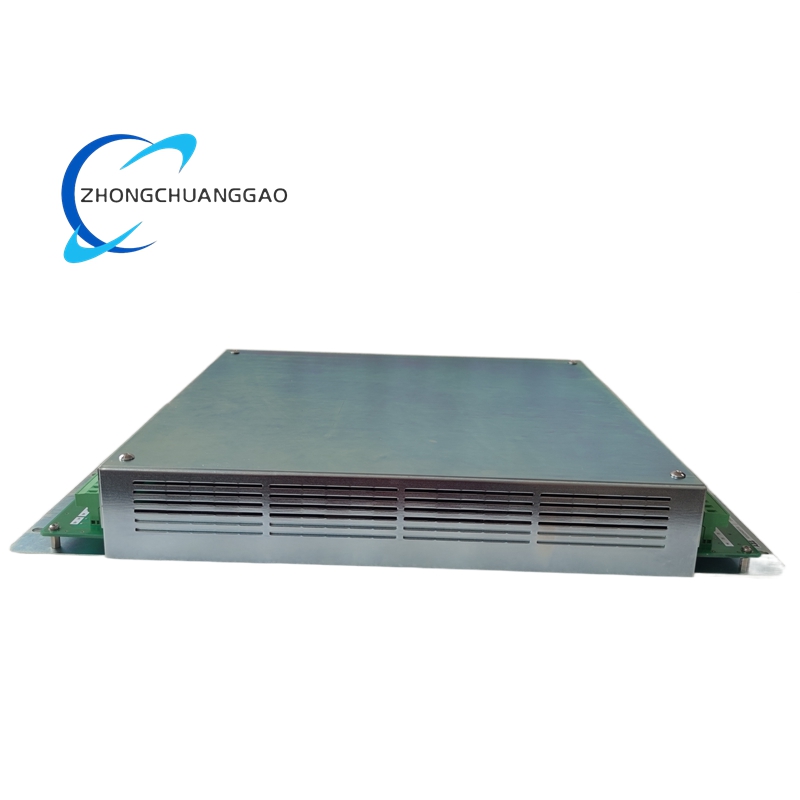

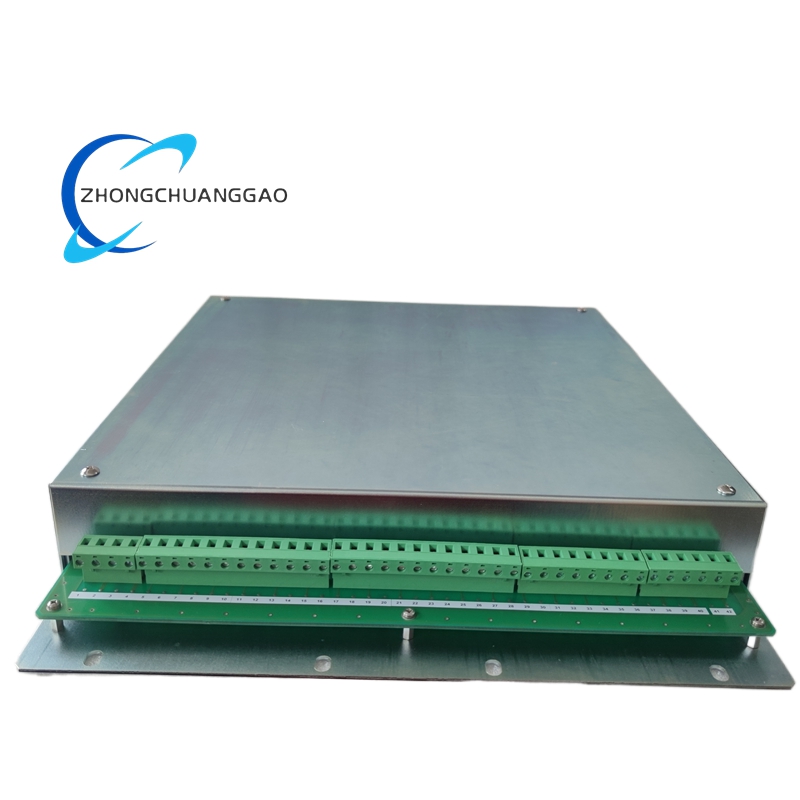

ABB HESG324430R11/B Industrial Control Module

Description

Primary Variant 1: Analog Output Module for Procontrol (216GD61A)

System Platform: ABB Procontrol P/13, Procontrol P/14, Advant OCS (Legacy Automation 200 Series)

Product Description:
In this configuration, the HESG324430R11/B (216GD61A) is a high-density 6-channel analog output module. It serves as the critical指令 interface in distributed control systems (DCS), converting digital control commands from the controller into precise analog signals (4-20mA or 0-10V) to drive field actuators such as servo valves, positioners, and control elements in power generation and marine automation .

Key Technical Specifications:

• Product Type: Analog Output Module / Process Control Instruction Interface Unit

• Channel Configuration: 6 independent, fully isolated channels

• Output Signals: 4-20mA, 0-20mA, 0-5V, 0-10V (per-channel jumper selectable)

• Resolution: 14-bit DAC

• Accuracy: ±0.1% of full scale

• Linearity Error: < 0.05%

• Load Capability: Max 600 Ω (current mode); Min 2 kΩ (voltage mode)

• Settling Time: < 0.8 ms (voltage), < 2 ms (current)

• Isolation: Channel-to-bus: 2.5 kV RMS; Channel-to-channel: 500 V DC

• Fault Preset: Independent hardware jumper configurable per channel (0%, 25%, 50%, 75%, 100%, or Hold Last Value)

• Connection: 48-pin DIN 41612 connector (mates with TU200 series termination boards)

• Power Supply: 5V DC / 1A, ±15V DC / 0.3A (via backplane); 8W typical consumption

• Operating Temperature: 0°C to +55°C

• Certifications: CE, UL, CSA, DNV, ABS, LR (Marine Type Approval)

Core Features:

• Channel-Level Hardware Safety Preset: The defining feature of this module is its independent, hardware-based failsafe mechanism. Each of the six channels features a physical jumper block that can be set to force the output to a predefined safe state (e.g., 0%, 100%, or last value) within 1ms of a controller CPU halt, network loss, or module extraction. This operation occurs without any software intervention, making it suitable for SIL3-rated safety loops .

• Precision V/I Conversion with Ultra-Low Drift: The circuit utilizes 0.01% precision metal foil resistors and low-drift instrumentation amplifiers, achieving a temperature drift coefficient as low as 15 ppm/°C. This ensures exceptional stability, with the 4-20mA output maintaining 4.00mA ± 0.02mA accuracy even with 20°C ambient fluctuations, meeting the requirements of nuclear turbine control .

• Dual Redundant Output Limiting: Each channel incorporates both software-programmable limits and a hardware potentiometer for physical output clamping. If software fails and commands 100% output, the hardware limiter can restrict the signal to a safe threshold within 20 microseconds, preventing overpressure events in critical applications like chemical reactors .

• Rugged Mechanical Redundancy: Built on a 2.4mm thick FR-4 epoxy board with gold-plated DIN connectors rated for over 500 mating cycles. Each output channel is protected by a field-replaceable 5x20mm slow-blow fuse, ensuring long-term serviceability and contributing to the module’s decades-long operational life in the field .

Typical Applications:

• Nuclear Turbine Control: Driving electro-hydraulic converters for high-pressure steam valve positioning, where hardware failsafe preset is essential for emergency shutdowns .

• FPSO (Floating Production Storage and Offloading) Process Control: Managing pressure control loops in harsh marine environments, leveraging its DNV marine certification for reliable operation in high-salt, high-vibration offshore conditions .

• Blast Furnace Top Pressure Control: In triple-redundant configurations for ultra-high precision regulation of furnace pressure, significantly reducing energy loss through gas flaring .

Primary Variant 2: Relay Output Module for REG216 Protection

System Platform: ABB REG216 Digital Generator/Transformer Protection Relay

Product Description:
Within the REG216 protection system, the 216GD61A (HESG324430R11/B) functions as a high-integrity auxiliary relay and optocoupler output module. It acts as the physical execution unit for the protection logic, converting internal digital trip decisions into high-power signals to activate circuit breakers, while also providing isolated status feedback and alarms .

Key Technical Specifications:

• Product Type: Auxiliary Relay & Optocoupler Output Module

• Relay Configuration: 8 trip relays (with built-in surge suppression) + 16 auxiliary relays

• Digital I/O: 16 optocoupled input/output interfaces

• Trip Relay Contacts: 8 independent Form C (NO/NC) contacts

• Contact Rating: 5A @ 250V AC/DC (high surge withstand capability)

• Auxiliary Relays: 16 relays for signal resetting, alarm indication, and interlocking outputs

• Isolation Voltage: ≥ 2.5 kV AC (optocoupler isolation between field and logic circuits)

• Operating Voltage Range: 24V – 220V DC or 110V – 230V AC (wide-range adaptive)

• Electrical Life: > 100,000 operations at rated load

• Operating Temperature: -25°C to +70°C

• Certifications: IEC 60255 (Measuring Relays), CE, UL

Core Features:

• Integrated Surge Suppression for Trip Reliability: Each trip relay includes built-in surge suppression circuitry. This absorbs the high-voltage back-EMF generated when de-energizing inductive loads like breaker trip coils, preventing contact welding and electronic component damage, thus eliminating the common failure mode of relay “sticking” or “failure to trip” .

• High-Density Integrated I/O: The module integrates the functionality of numerous discrete components (8 trip relays, 16 auxiliary relays, and 16 opto-couplers) into a single plug-in unit. This drastically simplifies panel wiring, reduces physical space requirements, and enhances signal clarity by minimizing external connections .

• Multi-Level Galvanic Isolation: Provides robust isolation between the high-voltage trip circuits and the sensitive logic-level electronics. This design severs ground loop paths and protects the main processor from transients induced by lightning or switching surges, ensuring that protection actions are precise and immune to electrical interference .

Typical Applications:

• Generator Differential Protection: In large hydro or thermal power plants, this module serves as the main trip output for generator protection. Upon detecting internal faults, it drives the generator circuit breaker and initiates turbine shutdown within milliseconds .

• Transformer Backup Protection: In industrial substations (e.g., chemical plants), it manages overcurrent and earth fault protection outputs, ensuring faulty sections are isolated quickly to maintain supply to critical processes and prevent hazardous conditions .

Secondary Variant 3: High-Power Servo Drive

System Platform: ABB ACS Series / High-Performance Motion Controllers

Product Description:
In a distinctly different application, the HESG324430R11/B (216GD61A) is identified as a high-power servo drive module. This unit is engineered for precision motion control in industrial machinery, regulating voltage and current to AC servo motors to provide exact control of speed, torque, and position. It utilizes advanced vector control algorithms and handles real-time feedback from encoders or resolvers .

Key Technical Specifications:

• Product Type: High-Power Servo Drive

• Rated Current: 430 A continuous output

• Voltage Rating: 400–480 VAC three-phase input

• Output Frequency: 0–300 Hz, programmable

• Control Mode: Advanced vector control with encoder/resolver feedback

• Peak Current: Up to 150% rated for 3 seconds

• Protection Features: Overcurrent, overvoltage, undervoltage, thermal, short-circuit protection

• Communication Interface: Profibus, EtherCAT, CANopen, or Modbus TCP

• Safety Compliance: Integrated Safe Torque Off (STO) for emergency stops

• Ambient Temperature: 0–50°C (derating above 40°C)

• Cooling Method: Forced-air or liquid-cooled depending on configuration

• Certifications: CE, UL, IEC 61800-5-1 compliant

• MTBF: >100,000 hours

Core Features:

• Advanced Vector Control: Utilizes sophisticated algorithms to process real-time feedback from encoders or resolvers, ensuring precise motor response even under dynamic load changes and supporting complex, multi-axis synchronization for high-precision tasks .

• High Current Capacity for Heavy Machinery: With a 430 A continuous output rating, the drive is capable of handling large industrial machinery, including CNC machines, robotic arms, and high-inertia conveyor systems, providing robust power for demanding applications .

• Integrated Functional Safety: The inclusion of Safe Torque Off (STO) functionality allows for emergency stops without the need for mechanical intervention, meeting international safety standards and enhancing operator safety in automated environments .

Typical Applications:

• High-Torque Industrial Robotics: Powering the articulated joints of heavy-duty assembly or welding robots .

• Multi-Axis CNC Machinery: Providing synchronized, precise control for milling, turning, and grinding operations .

• Heavy-Duty Conveying Systems: Driving high-inertia conveyors in manufacturing or bulk material handling applications .

Summary of Contradictory/Inaccurate Listings

Due to the multi-functional nature of the core part number, several third-party listings are either contradictory or inaccurate and should be disregarded. These include classifications as a generic “PLC Module” with unrealistic voltage ratings (34.5 kV) , a “High Voltage Disconnect Switch” , a “Motor” , or a generic “Controller Module” . The specifications provided in these sources are either entirely incompatible with each other or describe physical hardware that does not align with the module’s form factor.
